Automated Anodizing Line
>

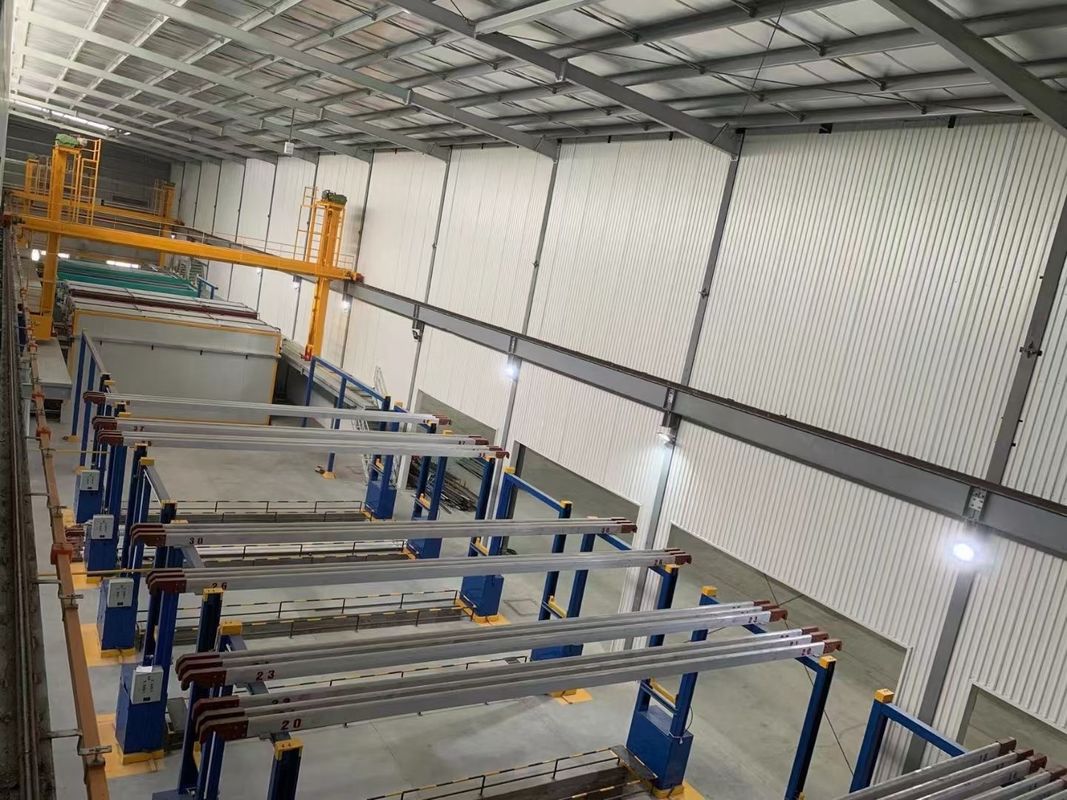

1000T/Month Automated Anodizing Line for 6500mm Profiles with Semiautomatic or Automatic Operation

1000T/Month Automated Anodizing Line for 6500mm Profiles with Semiautomatic or Automatic Operation

Brand Name: MEI-AL
Model Number: APL-1000T
MOQ: 1set
Price: RMB11,000,000-15,000,000/set
Packaging Details: Export Stander Packing
Payment Terms: T/T
Detail Information
Place of Origin:
CHINA
Output:
550T/month
Mode:
Horizontal
Operation Mode:
Semiautomatic Or Automatic
Anodizing Film Thickness:
8-12µm
Max Profile Length:
6500mm
Colour:
Silver Bronze Brown Black Champagne Gold
Tanks Inside Size:
8000*width*3500
Voltage:
380V~415v
Chemical Solution:
Sulfuric Acid
Feature:
Automated Material Handling
Auxiliary Equipment:
Chiiler,Filter Etc.
Drying Method:
Hot Air
Core Components:
PLC, Motor, Tank
Capacity:
1000 Kg/hour
Available For:
Accessories Nickel Chromium
Material:
Aluminum
Power Supply:
3 Phase, 220V/380V/440V
Racking Method:
Manaul Racking System
Control Voltage:
AC 2P 220V 50HZ
Supply Ability:
1set/6 months
Highlight:

Anodizing Line Equipment Automatic

,

Anodizing Line Equipment Semiautomatic

Product Description
Equipment Overview

Equipment Name: Control Horizontal Anodizing Line

Rated Output: 1000 T/Month

Model: Horizontal U mode

Operation Style: Semi-automatic or Automatic

Racking Method: Manual racking system

Design Conditions
  • Alloy: Aluminium 6061 to 6063 or others
  • Anodizing Film Thickness: 10–12 µm
  • Average Coverage Area: 350 m²/T (ton)
  • Max Aluminium Profile Length: 6500 mm
  • Extrusion Ratio: 2.5 kg/m²
  • Working Hours: 300 days/month × 20 h/day = 600 h/month
  • Racking System: Three fixtures per rack
  • Racking Operation: Manual
  • Equipment Usage Rate: 0.9
  • Power Supply: AC 3-phase 380 V, 50 Hz
  • Control Power: AC 220 V, 50 Hz
  • Water Supply: 2 kg/cm²·G
  • Hot Steam: 6 kg/cm²·G
  • Compressor Air: 6 kg/cm²·G
Process Tanks
Process Bath Composition Tank Quantity
Degreasing Free sulfuric acid 180 ± 30 g/L 1 Tank
Alkaline Etching Free alkali 40–60 g/L, Al³⁺ 30–120 g/L 2 Tanks
Neutralization Free sulfuric acid 180 ± 20 g/L 1 Tank
Anodizing Free sulfuric acid 140–180 g/L, Al³⁺ ≤ 20 g/L 5 Tanks
Colouring Stannous sulfate 3–8 g/L, free sulfuric acid 15–25 g/L, pH 0.8–1.2 2 Tanks
Medium Temperature Sealing pH 5–6.5, nickel ion 0.8–1.3 g/L, fluoride ion 0.3–0.7 g/L 3 Tanks
Treatment Process
1. Degreasing
  • 6 jig (rack) / tank × 1 tank = 6 jig (rack)
  • Treatment time: 2–5 min
2. Alkaline Etching
  • 6 jig (rack) / tank × 2 tanks = 12 jig (rack)
  • Treatment time: 3–15 min
3. Neutralization
  • 6 jig (rack) / tank × 1 tank = 6 jig (rack)
  • Treatment time: 1–5 min
4. Anodizing
  • 3 jig (rack) / tank × 5 tanks = 15 jig (rack)
  • Current density: 130 A/m²
  • Process time: 30 min
  • Unprocess time: 10 min
  • Total time: 30 + 10 = 40 min
  • Average anodizing layer: 0.36 × 1.3 × 30 × 0.77 = 10.81 µm
5. Colour 1
  • Colour process: Mix Salts
  • Quantity: 2 jig (rack) / tank × 1 tank = 2 jig (rack)
  • Current density: 70 A
  • Process time: 2–8 min
6. Sealing
  • Sealing method: Medium or normal temperature sealing
  • Quantity: 6 jig (rack) / tank × 1 tank
  • Process time: 10–15 min
Design Parameters & Capacity Settings
Anodizing Treatment Area
  • Each anodizing process tank requires 40 min; total jig (rack) per year: (2 racks × 5 tanks × 60 min/h) ÷ 40 min × 600 h = 9,000 jig (rack)
  • Design: 50 m²/jig (rack), where each tank is 100 m²
  • Area treatment per year: 9,000 jig (rack) × 50 m²/jig = 450,000 m²
Anodizing Treatment Weight
  • Monthly output: 450,000 m² ÷ 350 m²/T × 0.9 = 1,157.1 T ≥ 1000 T
Power Consumption
  • Anodizing tank: 100 m²/tank × 130 A/m² ÷ 0.9 = 14,444 A/tank; power rectifier: 15,000 A = 5 units
  • Colouring tank: 100 m²/tank × 70 A/m² ÷ 0.9 = 7,777 A/tank; colour rectifier: 8,000 A = 2 units
Process Chart
De = Degreasing Rs = Rinsing HW Rs = Hot Water Rinsing AE = Alkaline Etching Ne = Neutralization An = Anodizing Cl = Coloring Sl = Sealing MU = Material Unloading Pc = Packing
Process flow chart of the horizontal anodizing production line showing degreasing, rinsing, etching, neutralization, anodizing, coloring, sealing, unloading, and packing stages
Automatic Control System

This system is applicable to the semi-automatic production line of aluminum oxide anodization. According to its process specifications, the system is planned to adopt an upper computer monitoring and management system (composed of an industrial control computer IPC), a lower computer control execution system (PLC), detection components, and execution devices. There are two operation modes: manual and semi-automatic. When the system is running normally, it is semi-automatic. Based on the input of feeding data, the crane can identify the slot position in semi-automatic mode and execute corresponding oxidation, coloring and other processes. The temperature of the slot liquid meets the process requirements in semi-automatic control. In semi-automatic mode, the single-step operation of the crane and related equipment can be controlled in the central control room. In manual mode, the operation can be carried out through on-site operation buttons.

Semi-Automatic Control System Features
  1. The start and stop of the oxidation power supply can be controlled manually or by the PLC of the automated production line.
  2. PLC setting for oxidation working time timer or automated production line.
  3. The output current or voltage value and operation process of the power supply are set by the production line PLC and the central control system.
  4. The operating parameters and status can be transmitted to the upper PC of the production line through the communication interface.
  5. You can preset the set values according to the process and provided parameters.
Material Transfer & Conveying Equipment
Automatic Feeding and Unloading Lifting Device

Setting: Each feeding position is a single beam for feeding and unloading, and the lifting device is equipped with conveying equipment before and after the lifting device. The empty beam and the solid beam are separated and the six rows are used as a unit to ensure that the six rows of materials are processed in the same process, avoiding the need to allocate processes and occupying driving resources and efficiency.

  • Lifting speed: 8 m/min, RV brake motor drive
  • Beam translation speed: 8 m/min, WB brake motor drive
  • Rated load: 300 + 300 kg
  • Lifting stroke: 3500 mm
Chain Automatic Conveying Device — Loading and Unloading Area

The loading and unloading areas are set up in total: lift section transfer.

  • Translation speed: 3.2 m/min
  • Rated load: 5000 kg
  • Drive power: reduction motor 1.5 kW
  • Effective length of chain: 5400 mm / 2800 mm
Chain Automatic Conveying Device — Pre-Treatment and Material Preparation Area

Set up a set of feeding and unloading areas for conveying, and a set of pre-oxidation treatment and storage materials for conveying.

  • Translation speed: 3.2 m/min
  • Rated load: 9000 kg
  • Drive power: reduction motor 1.5 kW
  • Effective length of chain: 5000 mm / 7500 mm
CNC Automatic Sorting and Conveying Device — Drip Drying Area After Sealing
  • Translation speed: 3.2 m/min
  • Rated load: 9000 kg
  • Drive power: reduction motor 2.2 kW
  • Effective length of chain: 5000 mm
Automatic Sorting and Conveying Device — Before Drying
  • Translation speed: 3.2 m/min
  • Rated load: 9000 kg
  • Drive power: reduction motor 2.2 kW
  • Effective length of chain: 12000 mm
Workshop Material Beam Transfer Vehicle
  • Rated load capacity: 1500 kg
  • Variable frequency adjustable movement speed: 10–20 m/min
  • Drive power motor
