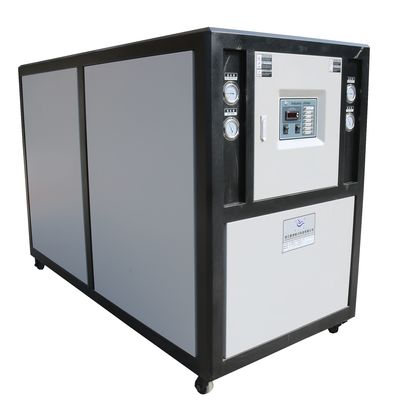

Freezer pendingin air langsung
| Model | SXJ-5P | SXJ-8P | SXJ-10P | SXJ-12P | SXJ-16P | SXJ-20P | SXJ-25P | SXJ-30P | SXJ-40P | SXJ-50P | |
| KW | 17.08 | 28.86 | 35.8 | 42.2 | 57.72 | 71.6 | 84.4 | 107.4 | 143.2 | 168.8 | |
| Pendinginan | Kkal/jam | 14689 | 24820 | 30788 | 36292 | 49639 | 61576 | 72584 | 92364 | 123152 | 145168 |
| kapasitas | |||||||||||
| POLISI | 5.18 | 5.16 | 5.37 | 5.26 | 5.16 | 5.37 | 5.26 | 5.37 | 5.37 | 5.26 | |
| Daya Masukan | 3PH-380V/50HZ | ||||||||||
| Mode | kompresor tipe gulir kedap udara penuh | ||||||||||
| kuantitas | 1Set | 2Set | 3Set | 4Set | |||||||
| (KW) | 3.3 | 5.6 | 6.67 | 8.03 | 11.2 | 13.34 | 16.06 | 20.01 | 26.68 | 32.12 | |
| Kompresor | Daya masukan | ||||||||||
| (A) | 6 | 9.9 | 11.8 | 14 | 19.8 | 23.6 | 28 | 35.4 | 47.2 | 56 | |
| Nilai arus beban | |||||||||||
| (mm²)Kabel yang cocok | 2.5 | 4 | 6 | 6 | 10 | 10 | 10 | 16 | 25 | 25 | |
| (%) Cara membongkar | 0,100% | ||||||||||
| Pendingin | R22 | ||||||||||
| simpul | Cangkang dan tabung sekrup esternal yang efisien dan efisien | ||||||||||
| (m³/jam) | 3.5 | 5.92 | 7.3 | 8.64 | 11.85 | 14.6 | 17.3 | 21.9 | 29.2 | 34.56 | |
| Kondensator | Aliran air pendingin | ||||||||||
| air masuk30°C, air keluar35°C | |||||||||||
| Suhu air pendingin | |||||||||||
| Mode | jenis cangkang dan tabung sekrup internal | ||||||||||
| (m³/jam) | 3.06 | 4.96 | 6.15 | 7.26 | 9.93 | 12.3 | 14.52 | 18.5 | 24.6 | 29 | |
| Pembekuan aliran cairan | |||||||||||
| Evaporator | Pembekuan cairan saluran masuk12°C,Pembekuan cairan saluran keluar7°C | ||||||||||
| Suhu masuk & keluar cairan beku | |||||||||||
| (KW) | 0,37 | 0,75 | 0,75 | 0,75 | 1.5 | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | |
| Kekuatan pompa | |||||||||||
| Metode pembatasan | katup ekspansi keseimbangan eksternal/kapiler | ||||||||||
| perlindungan interlock pompa air, perlindungan kebocoran, tekanan berlebih dan perlindungan fase-snti, | |||||||||||
| Perlindungan keamanan | perlindungan kelainan pendingin | ||||||||||
| kompresor atas perlindungan suhu, dan kurangnya perlindungan air, dll | |||||||||||
| DN40 | DN40 | DN40 | DN40 | DN50 | DN50 | DN65 | DN65 | DN80 | DN80 | ||
| Sambungan perpipaan | diameter masuk & keluar air pendingin | ||||||||||
| DN40 | DN40 | DN40 | DN40 | DN50 | DN50 | DN65 | DN65 | DN80 | DN80 | ||
| Diameter masuk & keluar cairan | |||||||||||
| Berat (KG) | 148 | 242 | 262 | 396 | 396 | 444 | 552 | 310 | 714 | 873 | |
| L | 1200 | 1200 | 1350 | 1350 | 1750 | 1750 | 2000 | 2000 | 2500 | 2500 | |
| Ukuran keseluruhan | W | 750 | 750 | 750 | 750 | 800 | 800 | 950 | 950 | 1000 | 1000 |
| H | 1100 | 1100 | 1150 | 1150 | 1300 | 1300 | 1300 | 1300 | 1510 | 1510 | |
