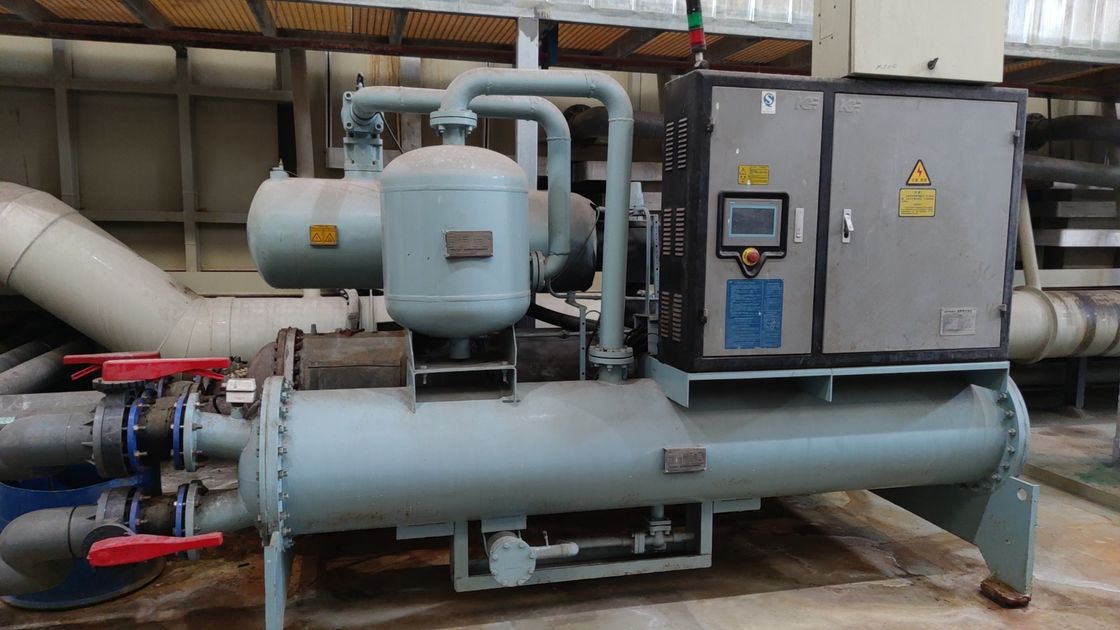

107.4KW R22 Refrigerant 3PH-380V/50HZ Water Direct Cooling Freezer for Anodizing Line Equipment
  • Name

107.4KW R22 Refrigerant 3PH-380V/50HZ Water Direct Cooling Freezer for Anodizing Line Equipment

Brand Name: MEI-ALU
Model Number: SXJ-30P
MOQ: 1set
Price: RMB79,000/set
Packaging Details: Export Stander Packing
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Cooling Capacity:
107.4KW
Coolingcapacity:
92364Kcal/h
COP:
5.37
Input Power:
3PH-380V/50HZ
Refrigerant:
R22
Matching Wire:
16mm²
Supply Ability:
20pcs/month
Highlight:

Anodizing Line Equipment Freezer

,

107.4KW Anodizing Line Equipment

Product Description
Water Direct Cooling Freezer — Model Series Overview

The Water Direct Cooling Freezer series delivers reliable, high-efficiency process cooling for anodizing lines and other industrial applications. Available in ten models ranging from 17.08 KW to 168.8 KW, each unit features a full-hermetic scroll compressor, high-efficiency shell-and-tube heat exchangers, and comprehensive safety protection for continuous operation.

Performance & Capacity Specifications
Model SXJ-5P SXJ-8P SXJ-10P SXJ-12P SXJ-16P SXJ-20P SXJ-25P SXJ-30P SXJ-40P SXJ-50P
Power (KW) 17.08 28.86 35.8 42.2 57.72 71.6 84.4 107.4 143.2 168.8
Cooling Capacity (Kcal/h) 14,689 24,820 30,788 36,292 49,639 61,576 72,584 92,364 123,152 145,168
COP 5.18 5.16 5.37 5.26 5.16 5.37 5.26 5.37 5.37 5.26
Compressor & Electrical Data
Parameter SXJ-5P SXJ-8P SXJ-10P SXJ-12P SXJ-16P SXJ-20P SXJ-25P SXJ-30P SXJ-40P SXJ-50P
Compressor Quantity 1 Set 2 Sets 3 Sets 4 Sets
Compressor Input Power (KW) 3.3 5.6 6.67 8.03 11.2 13.34 16.06 20.01 26.68 32.12
Rated Load Current (A) 6 9.9 11.8 14 19.8 23.6 28 35.4 47.2 56
Matching Wire (mm²) 2.5 4 6 6 10 10 10 16 25 25

Input Power: 3PH-380V/50HZ · Compressor Mode: Full-hermetic scroll type · Refrigerant: R22 · Unloading: 0–100%

Heat Exchanger & Flow Specifications
Parameter SXJ-5P SXJ-8P SXJ-10P SXJ-12P SXJ-16P SXJ-20P SXJ-25P SXJ-30P SXJ-40P SXJ-50P
Condenser Cooling Water Flow (m³/h) 3.5 5.92 7.3 8.64 11.85 14.6 17.3 21.9 29.2 34.56
Evaporator Freezing Liquid Flow (m³/h) 3.06 4.96 6.15 7.26 9.93 12.3 14.52 18.5 24.6 29
Pump Power (KW) 0.37 0.75 0.75 0.75 1.5 1.5 2.2 2.2 3.7 3.7
Cooling Water In/Outlet Diameter DN40 DN40 DN40 DN40 DN50 DN50 DN65 DN65 DN80 DN80
Liquid In/Outlet Diameter DN40 DN40 DN40 DN40 DN50 DN50 DN65 DN65 DN80 DN80

Condenser: High-efficiency external screwed shell and tube · Cooling water temperature: inlet 30°C, outlet 35°C · Evaporator: Internal screwed shell and tube type · Freezing liquid temperature: inlet 12°C, outlet 7°C · Throttle methods: External balance expansion valve / capillary

Dimensions & Weight
Parameter SXJ-5P SXJ-8P SXJ-10P SXJ-12P SXJ-16P SXJ-20P SXJ-25P SXJ-30P SXJ-40P SXJ-50P
Weight (KG) 148 242 262 396 396 444 552 310 714 873
Length L (mm) 1200 1200 1350 1350 1750 1750 2000 2000 2500 2500
Width W (mm) 750 750 750 750 800 800 950 950 1000 1000
Height H (mm) 1100 1100 1150 1150 1300 1300 1300 1300 1510 1510
Safety Protection Features
  • Water pump interlock protection — ensures pump operation before compressor start
  • Leakage protection — electrical safety for operators and equipment
  • Overpressure & anti-phase protection — safeguards against pressure spikes and phase faults
  • Refrigerant abnormality protection — monitors refrigerant conditions in real time
  • Compressor over-temperature protection — prevents overheating damage
  • Lack-of-water protection — protects the system from dry-run conditions
