220V Reverse Osmosis Water Treatment Machine Precision Industrial

1set
MOQ
Negotiable
Price
220V Reverse Osmosis Water Treatment Machine Precision Industrial
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 1~30T
Voltage: 220V~415v
RO Desalination Rate: 96%-98%
Raw Water Utilization: 65%-75%
Warranty Time: 1 Year
Name: Industrial RO Pure Water Treatment Machine
Highlight:

220V Reverse Osmosis Water Treatment Machine

,

Reverse Osmosis Water Treatment Machine Industrial

,

Reverse Osmosis Water Machine Precision

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: ROPWE-1~30T
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

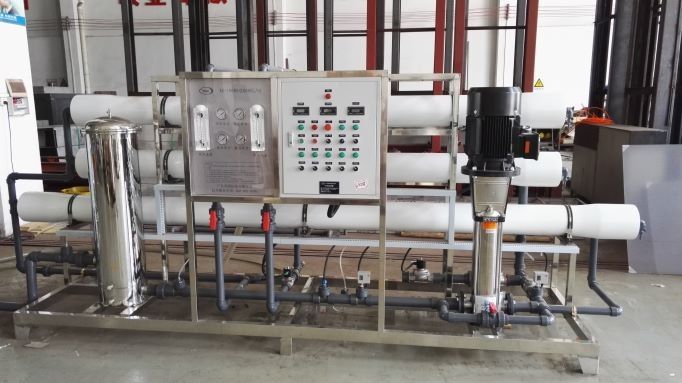

1-30T/H RO Pure Water Equipment



summary

The reverse osmosis pure water equipment separates the ions, organic matter and fine suspended matter (bacteria and colloidal particles) in the water through the membrane tube to achieve the purpose of desalting and purification of the water. The principle is that water is separated from the solution by a permeable membrane, and water permeates into the solution, and there is osmotic pressure between the two phases. If the pressure on the solution phase is greater than the osmotic pressure, then the water in the solution phase will penetrate into the water phase, which is called reverse osmosis. Dessalt water is obtained by reverse osmosis, that is, raw water becomes pure water through the permeable membrane under sufficient pressure, and the concentration of dissolved water and suspended matter that does not pass through the membrane gradually increases.
Pure water equipment includes reverse osmosis and ion exchange mixing bed (resin absorption order) part. According to the function and function of each equipment in the system, it can be divided into three parts: prefiltration dosing part, reverse osmosis desalination part, and refined part of ion exchange mixing bed.





Equipment Parameter:

      1. Pure water production: 1-30T/h;

      2. Water source: tap water (or groundwater), the total salt content of water (TDS) should be less than 1500ppm, conductivity           ≤200us / cm.

      3. Water Iinlet PH value: 6.5-7.5
      4. Maximum water inlet temperature: 35℃:
      5. Water inlet PH value: 6.5-7.5;
      6. Water blockage index; SDI <5



Process Folw:

 raw water→raw water booster pump→sand filter→carbon filter→5 precision filter→reverse osmosis machine→intermediate water tank→intermediate water pump→mixed ion exchange



Reverse osmosis desalination  parameters:

  1. Reverse osmosis desalination rate: 96%-98%;
  2. Raw water utilization: 65-75%
