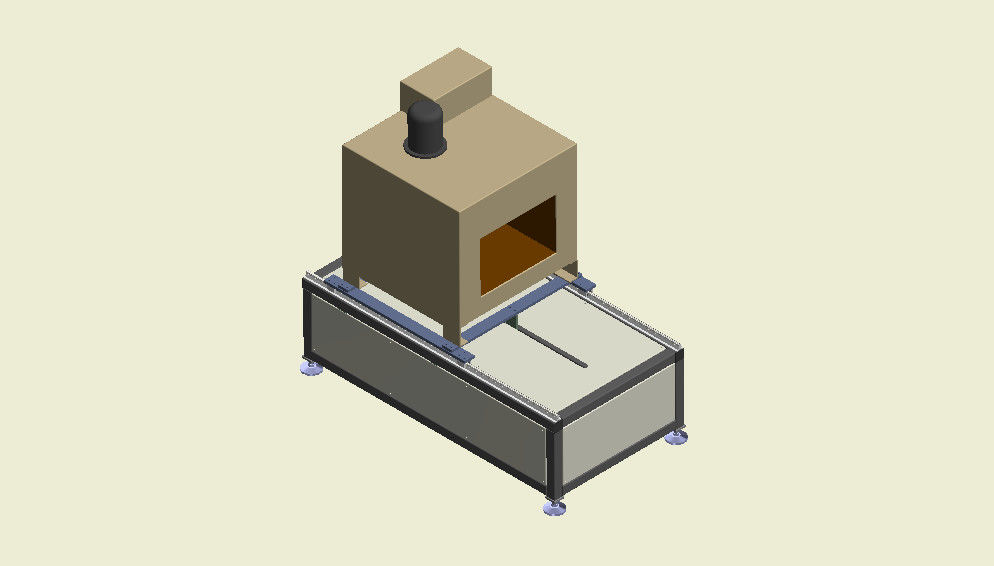

High Efficiency Heat Shrinkage Packaging Machine
Design Parameter
| Product Name:high efficiency heat shrinkage packaging machine |
Product Name: JB2- Aluminium profile Shrink pack machine |
|
|
Over Size and Structure |
1. Machine outline reference size: 2700×760×1400 (length×width×height mm);
2. Hot box channel reference size: 1500 × 400 × 270 (length × width × height mm);
3. A total of two 4 meters of galvanized roller transmission racks are installed at the inlet and outlet of the machine.
4. The height of the conveyor surface from the ground is about 730mm. |
|
|
Parameter
|
1. One imported high-speed and high-efficiency fans are installed above the hot box.
2, Our factory brings in the Swiss technology to produce the elliptical U-side plug-in metal far-infrared high-efficiency heat pipe which is used to convert electricity to heat energy with characteristics such as good constant temperature effect, rapid heating and energy saving. Machine adopts three-phase and four-wire power supply, power is 15kw.
3, USES the high quality brand ac contactor with factory temperature controller of automatic temperature control circuit, the highest temperature of 200 ℃
4, Transmission system adopts imported joint brand high stable ac drive motor 0.37 Kw, with frequency conversion governor, has "forward. Stop. Reverse" switch), can provide very stable packaging transportation speed, transportation speed 0 to 30 m/min (adjustable), conveying ≧ 80 kg in weight.
5, The machine has high quality with very stable and superior performance and fast packaging, can shrink wrap can be conducted with low temperature and high efficiency, energy saving, stable, perfect and no breaking film.
|
|
