22KW Automatic Aluminum Extrusion Press 700T Aluminium Extrusion Equipment

1set
MOQ
RMB1200000-1500000/set
Price
22KW Automatic Aluminum Extrusion Press 700T Aluminium Extrusion Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Extrusion Strength: 700T
Billet Size: Φ101.6mm (4 Inch), Length 530mm
Operation Mode: Semiautomatic Or Automatic
Main Cylinder Piston Diameter: 620mm
Die Slide Size: Outer Diameter: ф200mm, Length:200mm
Name: Aluminum Extrusion Press Equipment
Voltage: 380V~415v
High Light:

22KW Aluminum Extrusion Press

,

Automatic Aluminum Extrusion Press

,

700T Aluminium Extrusion Equipment

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-AL
Model Number: AEP-700T
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 30-60days
Payment Terms: T/T
Supply Ability: 1set/3 month
Product Description

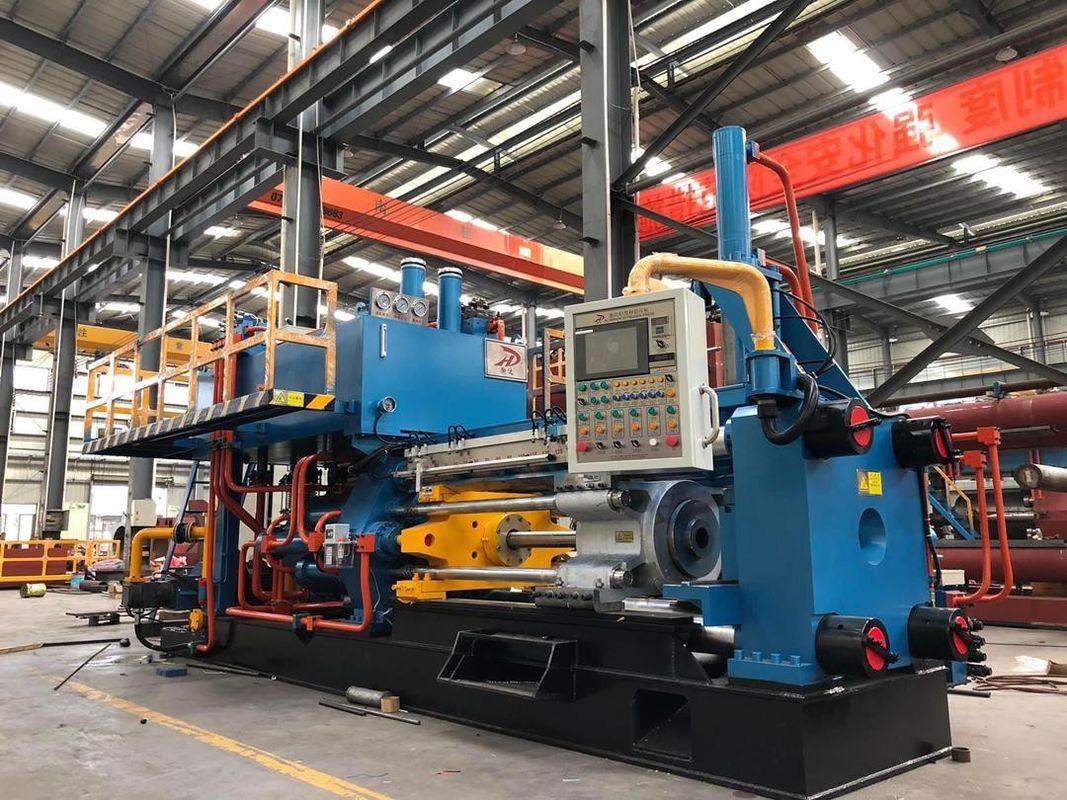

700T Aluminum Extrusion Press



Aluminum extrusion press is a four-column horizontal type hydraulic pressing machine specially designed for extruding civil aluminum profile and industrial profile.



1,Technical Parameters:

1) Billet size: Φ101.6mm (4 inch), length 530mm.



2) Extrusion capacity

D   Diameter of main cylinder piston: 620mm

Di  Diamete of side cylinder piston: 150mm

Di  Diamete of container cylinder piston: 140mm*4 (push from back side)

Di  Diamete of shear cylinder piston: 140mm

     Total extrusion strength: 210kg/cm2 707ton

     Main cylinder extrusion: 210kg/cm2 633 ton

     Side cylinder extrusion: 210kg/cm2 74ton

     Container lock-up: 150/kg /cm2 77ton

     Shear: 150/kg/ cm2 24.6ton



3) Theory speed

Main cylinder fast forwarding speed: 310mm/sec

Main cylinder fast draw-back speed: 200mm/sec

Extrusion speed: 1.5~12mm/sec

Container lock-up: 193mm/sec

Container open: 128mm/sec

Shear down: 360mm/sec

Shear up: 380mm/sec

Dead cycle time is less than 20 seconds.



4) Die slide size:

   0uter diameter ф200mm, length:200mm



5) Discharge hole size: Φ130㎜



6) Heat exchanger: 12㎡





2, Specification



1) oil pump

  Main oil pump: (Lihao Hydraulic)*1 set

Auxiliary pump: YBE-200/125L (Yongling Hydraulic) 1 set



2) Hydraulic Components:

   High pressure electromagnetic valves are from Rexroth. Others are from Taiwan Jeougang.



3) motor:

  Main motor: YE3- 315M-6 -90KW *1set (6 poles)

Container sealing motor: YE2-132S-6- 3KW *1 set

Heating elements power: 22KW

Container temperature: 380-430℃



4) Material:

  Main cylinder: forged steel

  Main piston: chilled cast iron

  Front plate: 35# cast steel

  Die slide: 45# forged steel

  Crosshead: 35# cast steel

  Tie rod: 45# forged steel

  Container housing: 35# cast steel

  Container tire: 5CrMnMo

  Container liner: H13 forged

  Stem: H13 forged

  Dummy block: H13 forged

  Bottom shelf: 35# steel and steel plate welding



  5) Electrical Components:

     PLC: Mitsubishi FX3U-128MR,MT-8101IE touch screen, displaying press situation and extrusion speed



   A. Equipped with automatic hydraulic digital controlled system, this press has functions of :



a) display of set speed and actual speed

b) same speed controlled and speed changed control

c) display of set electric current and actual electric current

d) actual position, speed changed position and after extrusion position

e) switches group position setting

f) break-through pressure testing

g) timing showing parameters.

h) system working parameters setting



B. This press is equipped with MTS temposoncis sensor and data display and adjustment. Under automatic situation, extrusion speed can also be adjusted.



AC contactor: Mitsubishi

stroke switch: Tend,Taiwan

Relay: Balseal
