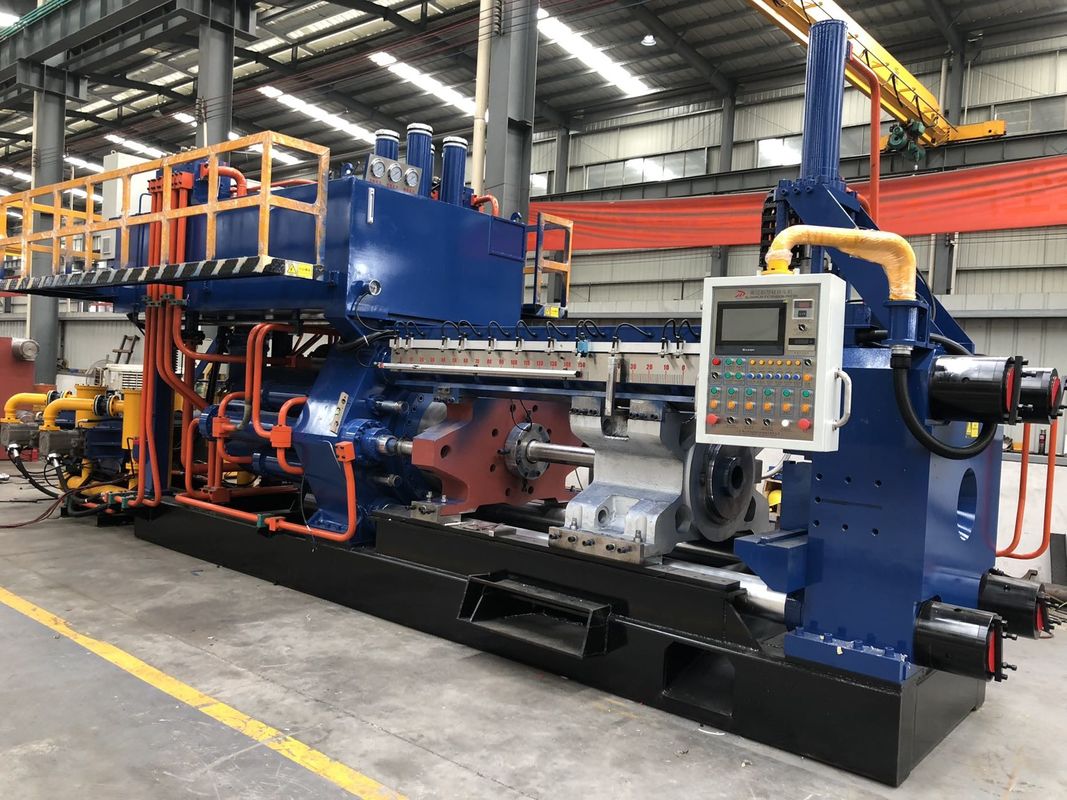

Industrial Aluminum Extrusion Press 1000T Aluminium Extruder Horizontal
一.Description
Aluminum extruder is a four-column horizontal type hydraulic pressing machine specially designed for extruding civil aluminum profile and industrial profile.
Technical Parameters:
1) Billet size:ф127mm, length 660mm.
2) Extrusion capacity
Diameter of main cylinder plunger: 750mm
Diameter of side cylinder plunger: 180mm*2
Diameter of container plunger: 160mm*4
Diameter of shear plunger: 160mm
Total extrusion strength: 220kg/cm2 1033ton
Main cylinder extrusion: 220kg/cm2 927 ton
Side cylinder extrusion: 220kg/cm2 106ton
Container lock-up: 200/kg /cm2 51 ton
Shear: 160/kg/ cm2 32 ton
3) Theory speed
Main cylinder fast forwarding speed: 231mm/sec
Main cylinder fast draw-back speed: 360mm/sec
Extrusion speed: 0~12mm/sec
Container lock-up: 185mm/sec
Container open: 128mm/sec
Shear down: 162mm/sec
Shear up: 266.7mm/sec
Under the circumstance of no billet, every extrusion circle is less than 16~20seconds.
4) Die size:
Outer diameter ф255mm, length:235mm
5) Machinery outer dimension: Length7500mm* width3000mm *height3800mm
6) Discharge gate siz: Φ160㎜×190㎜
7) Heat exchanger: 25㎡
8) Total weight: 48Ton.
1100UST Press Specification
(1) oil pump
Main oil pump: A7V-170L ( Lihao Hydraulic) *2sets
Auxiliary pump: YBE-200/125L (Zhejiang Yongling) 2sets
(2) hydraulic parts:
The high-pressure hydraulic parts are from Rexroth, another parts are from Taiwan.
(3) motor:
Main motor: YE3- 280M-6 -65KW *1 sets (6极)
YE3- 280S-4 -75KW *1 sets (4极)
Pressure leading motor: YE2-132S-6-3KW 1set
Pressure leading pump : PV2R1-10RAF1 1set
The container’s temperature: 380-430℃
(4) Material:
Main cylinder: forging steel
Main plunger: chilled casting iron
Front plate: 35# casting steel
Dies sliding base: 45# forging steel
Butterfly plate: 35# casting steel
Connecting pipe: 45# forging steel
Temperature conservation part: 35# casting steel
Container: 5crmnmo
Container liner: H13 forging
Stem: H13 forging
Extruding part: H13 forging
Bottom shelf: 35# steel and steel plate welding
(5) Electrical Parts:
PLC: MISBUSHI FX3U-128MR,MT-8102IP touch screen, displaying press situation and extrusion speed Equipped with automatic hydraulic digital controlled system, this press has functions of :
a) Display of set speed and actual speed
b) Same speed controlled and speed changed control
c) Display of set electric current and actual electric current
d) Actual position, speed changed position and after extrusion position
e) Switches group position setting
f) Break-through pressure testing
g) Timing showing parameters.
h) System working parameters setting
B.This press is equipped with position transducer and data display and adjustment. Under automatic situation, extrusion speed can also be adjusted.
AC contactor: MISBUSHI
stroke switch: Tend,Taiwan
Relay: Basel, UK
