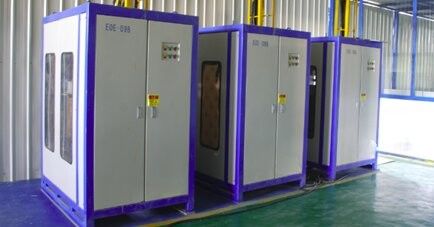

17000A Anodizing Line Equipment PLC Control Rectifier Power Supply

17000A Anodizing Line Equipment PLC Control Rectifier Power Supply
Features Gallery Product Description Request A Quote
For DC, AC Output Voltage: 0 - Rated Output Voltage Continuously Adjustable
The DC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
AC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
Power Supply AC Power: 50HZ, 380V ± 10%
Static Leaching Time: 0 - 180 Seconds Adjustable
Direct Current Rise Time: 10 - 50 Seconds
DC Duration: 0 - 180 Seconds
AC To DC Conversion Time: 5-0 Seconds
Adjustable AC Rise: 25-50 Seconds
AC Adjustable: 1-1800 Seconds Duration
Re-color Time: 5-999 Second Time
The Output Waveform: Full Half Sine Wave, DC, Asymmetrical Wave
Current: 17000A
Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: EOE-09B--17000A
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

PLC Control Anodizing Power Supply



EOE-O9B rectifier power supply products are mainly based on the Italy rectifier power supply performance (in line with the standard IEC - 146 ) and special oxidation process requirements successfully developed a high standard of energy saving and environmental protection products, applicable to aluminum alloy extruded profiles for architecture, anodic oxidation of aluminum alloy hard oxidation, electrolytic capacitors, electrolytic aluminum foil formation and other special uses DC power supply place.



The main function:

  1. According to the output voltage or current error by a PID controller of automatic voltage or current regulation function.
  2. PLC implementation of the output voltage or current digital given.
  3. Set the current limiting, pressure, lack of phase, temperature,protection.
  4. Intelligent operation control screen to showing current setting, parameter setting, data display and fault display.
  5. PLC ( programmable logic controller ) can realize the communication between PLC and upper computer, on-line control and Data collection.
  6. Soft starting and regulating function.
  7. Soft down regulation function.
  8. Intelligent touch screen has the voltage stabilize model, current stabilize model, area mode operation function.

Using criteria:

EOE-09B series of products is indoor use, the normal conditions of use for:

  1. The altitude not more than 1000 meters ( in 1000 meters of above can appropriate using)
  2. Working temperature -15~+40 ℃
  3. The relative air humidity is less than 85%
  4. The installation site without severely affecting power insulating gas, steam, chemical deposition, dust, dirt and other explosive etching medium.
  5. The installation site should be no severe vibration or bumps.
  6.  Power supply fluctuation is less than± 10% .
