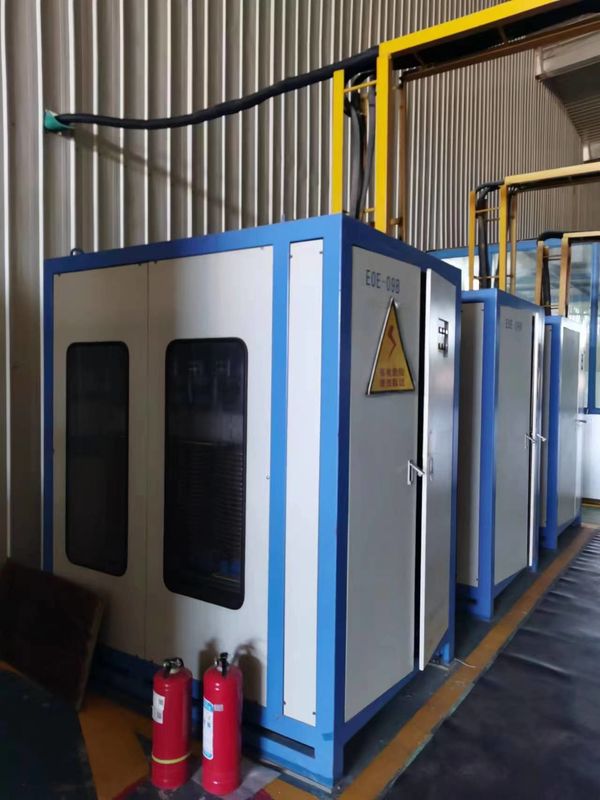

PLC Control DC Power Supply Anodizing Line 20000A Intelligent

PLC Control DC Power Supply Anodizing Line 20000A Intelligent
Features Gallery Product Description Request A Quote
For DC, AC Output Voltage: 0 - Rated Output Voltage Continuously Adjustable
The DC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
AC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
Power Supply AC Power: 50HZ, 380V ± 10%
Static Leaching Time: 0 - 180 Seconds Adjustable
Direct Current Rise Time: 10 - 50 Seconds
DC Duration: 0 - 180 Seconds
AC To DC Conversion Time: 5-0 Seconds
Adjustable AC Rise: 25-50 Seconds
AC Adjustable: 1-1800 Seconds Duration
Re-color Time: 5-999 Second Time
The Output Waveform: Full Half Sine Wave, DC, Asymmetrical Wave
Current: 21000A
High Light:

DC Power Supply Anodizing


Power Supply Anodizing

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: EOE-09B--20000A
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

PLC Control Anodizing Power Supply

  1. Energy-saving and Environmental Protection: The EOE-O9B rectifier power supply is designed to meet high standards of energy efficiency and environmental protection. It complies with the IEC-146 standard and is developed to fulfill the specific requirements of special oxidation processes.
  2. Automatic Voltage/Current Regulation: The power supply incorporates a PID controller, which enables automatic regulation of the output voltage or current based on error signals. This ensures precise and stable power delivery to meet the process requirements.
  3. PLC Implementation: The power supply utilizes a programmable logic controller (PLC) to implement digital control of the output voltage or current. The PLC enables efficient communication with an upper computer for online control and data collection purposes.
  4. Comprehensive Protection Features: The EOE-O9B power supply is equipped with various protection functions, including current limiting, overvoltage protection, phase loss protection, and temperature protection. These features safeguard the power supply and connected equipment from potential risks.
  5. Intelligent Operation Control Screen: The power supply features an intelligent touch screen interface that provides access to current settings, parameter configuration, real-time data display, and fault information. This user-friendly interface enhances ease of operation and troubleshooting.
  6. Soft Starting and Regulating: The power supply includes soft starting and regulating functions, ensuring smooth and controlled power delivery during startup and operation. This helps minimize any potential surge or instability in the system.
  7. Voltage and Current Stabilization Models: The intelligent touch screen offers voltage stabilization and current stabilization modes, allowing users to select the desired operating mode according to their specific application requirements. Additionally, an area mode operation function can be utilized for specific operational needs.
  8. Operating Conditions: The EOE-09B series of power supplies are designed for indoor use under normal conditions. They can operate effectively at altitudes below 1000 meters (with appropriate adjustments for higher altitudes), within a temperature range of -15°C to +40°C, and with a relative air humidity below 85%. The installation site should be free from severe vibrations, impacts, or exposure to power-insulating gases, steam, chemical depositions, dust, dirt, or explosive etching media. It is also important that the power supply fluctuations remain within ±10%.

These features make the PLC Control Anodizing Power Supply a reliable and versatile solution for various applications requiring DC power supply in aluminum alloy processing and other special processes.
