PLC Control Anodizing Line Equipment High Power Coloring Machine

PLC Control Anodizing Line Equipment High Power Coloring Machine
Features Gallery Product Description Request A Quote
For DC, AC Output Voltage: 0 - Rated Output Voltage Continuously Adjustable
The DC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
AC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
Power Supply AC Power: 50HZ, 380V ± 10%
Static Leaching Time: 0 - 180 Seconds Adjustable
Direct Current Rise Time: 10 - 50 Seconds
DC Duration: 0 - 180 Seconds
AC To DC Conversion Time: 5-0 Seconds
Adjustable AC Rise: 25-50 Seconds
AC Adjustable: 1-1800 Seconds Duration
Re-color Time: 5-999 Second Time
The Output Waveform: Full Half Sine Wave, DC, Asymmetrical Wave
Current: 9000A
High Light:

PLC Anodizing Line Equipment


Anodizing Line Equipment High Power

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: EDAC-12--9000A
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

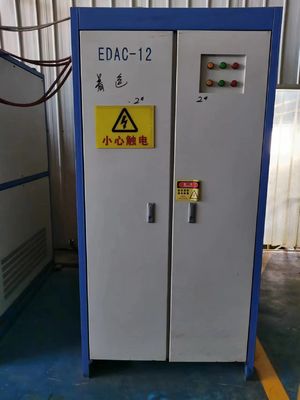

PLC Control Coloring Machine(EDAC-12)



EDAC-12 series DC-AC double wave coloring power mainly based on ELCA Italy, Spain, Germany, the United States and other similar coloring power supply (in line with the standard IEC - 146 ) and special coloring technology successfully developed high energy power products, applicable to aluminum alloy extruded profiles for architecture, electrolytic coloring of aluminum alloy car parts surface coloring and other special uses electrolytic coloring power supply place.

DC-AC intelligent coloring power operation started with a pulsating DC output, on aluminum alloy surface after oxidation surface film layer activation, shaping the homogenization treatment, so that the subsequent AC electrodeposition of metal ions coloring color consistency (i.e., small color difference ), especially in light color series ( such as: color, champagne imitating the color of stainless steel and light bronze etc.) have better uniform coloring performance. This kind of coloring power can be used for single salt, salt and nickel salt additives series products.

The use of intelligent DC-AC coloring power advantage:

1, aluminum alloy surface coloring uniformity were improved

Intelligent DC AC coloring power supply is used for pulsating DC current homogenizing treatment, again with AC voltage coloring, form a consistent surface color.

2, the strong adaptability of process

Intelligent DC AC coloring power than ordinary coloring power to process has stronger adaptability, not only to the tin salt, salt has good coloring ability, but also on the single nickel salt also has very good adaptability, especially the special formula of single nickel salt, shallow series ( champagne, imitating the color of stainless steel coloring etc. ) color reproduction. The DC-AC coloring power can also be run separately communicate coloring function.



The main function:

  1. The main circuit adopts high-power double induction voltage regulator surge, and the contactor serves as the circuit contact switch

  2. Adjust the automatic voltage regulator function according to the output voltage deviation through the PLC

  3. the PLC output voltage number is given, the realization of adjustable time

  4. Set the current limit, pressure and overtemperature protection

  5. Set up various shader models

  6. Touch screen realizes status setting, parameter setting, data display and fault display

  7. The PLC can realize the communication with the upper computer, and realize the online control and data acquisition

  8. intelligent touch screen has dc + sine wave, DC + asymmetric wave function;


Using criteria:

  1. The product is for indoor use, and the normal use conditions are:

  2. The altitude shall not exceed 1000 meters (above 1000 meters);

  3. Ambient temperature-15~ + 40℃;

  4. The relative air humidity is less than 85%;

  5. The installation site does not seriously affect the electric power insulation gas, steam, chemical deposition, dust, dirt and other explosive corrosion media;

  6. The installation site shall be free from violent vibration or turbulence;

  7. The power supply fluctuation is less than ± 10%.
