20000A Anodizing Line Equipment PLC Control Coloring Machine

20000A Anodizing Line Equipment PLC Control Coloring Machine
Features Gallery Product Description Request A Quote
For DC, AC Output Voltage: 0 - Rated Output Voltage Continuously Adjustable
The DC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
AC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
Power Supply AC Power: 50HZ, 380V ± 10%
Static Leaching Time: 0 - 180 Seconds Adjustable
Direct Current Rise Time: 10 - 50 Seconds
DC Duration: 0 - 180 Seconds
AC To DC Conversion Time: 5-0 Seconds
Adjustable AC Rise: 25-50 Seconds
AC Adjustable: 1-1800 Seconds Duration
Re-color Time: 5-999 Second Time
The Output Waveform: Full Half Sine Wave, DC, Asymmetrical Wave
Current: 20000A
Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: EDAC-12--20000A
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

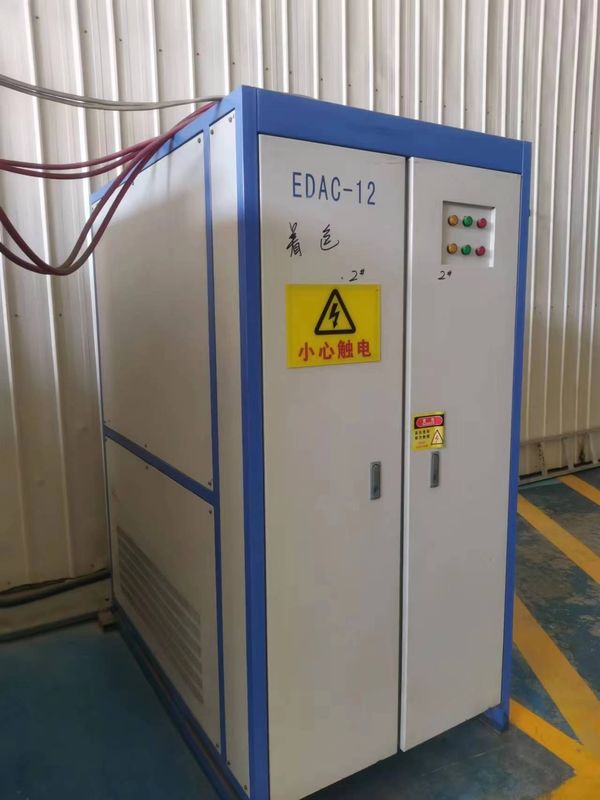

PLC Control Coloring Machine(EDAC-12)


  1. Uniformity of Coloring: The intelligent DC-AC coloring power supply utilizes a unique double wave technique to achieve a high level of color uniformity. The pulsating DC current is applied for homogenization treatment, ensuring that the metal ions deposit uniformly during AC electrodeposition. This results in consistent and even coloring across the surface of aluminum alloy materials.
  2. Wide Range of Applications: The EDAC-12 series power supply is versatile and can be used for various electrolytic coloring applications. It is particularly suitable for aluminum alloy extruded profiles used in architecture, where achieving a consistent color appearance is crucial. Additionally, it is beneficial for surface coloring of aluminum alloy car parts, helping to enhance their aesthetic appeal.
  3. Process Adaptability: The DC-AC coloring power supply offers a high degree of adaptability to different coloring processes. It performs excellently with both tin salt and salt additives, providing vibrant and uniform colors. Moreover, it showcases remarkable adaptability to single nickel salt, making it an ideal choice for achieving specific color shades in shallow series colors like champagne or stainless steel imitation.
  4. Communication Functionality: The intelligent DC-AC coloring power supply features communication capabilities, allowing it to function independently and communicate with other systems. This enables seamless integration into automated production lines and facilitates precise control over the coloring process.
  5. Advanced Circuit Design: The main circuit of the power supply incorporates large-power two-induction regulator surges and contactors as circuit contact switches. These components ensure stable and efficient operation, contributing to the reliability and longevity of the power supply.

By combining advanced technology, precise control, and adaptability, the EDAC-12 series DC-AC double wave coloring power supply delivers superior results in terms of color uniformity and process efficiency. It is a reliable and effective solution for various electrolytic coloring requirements in the aluminum industry.
