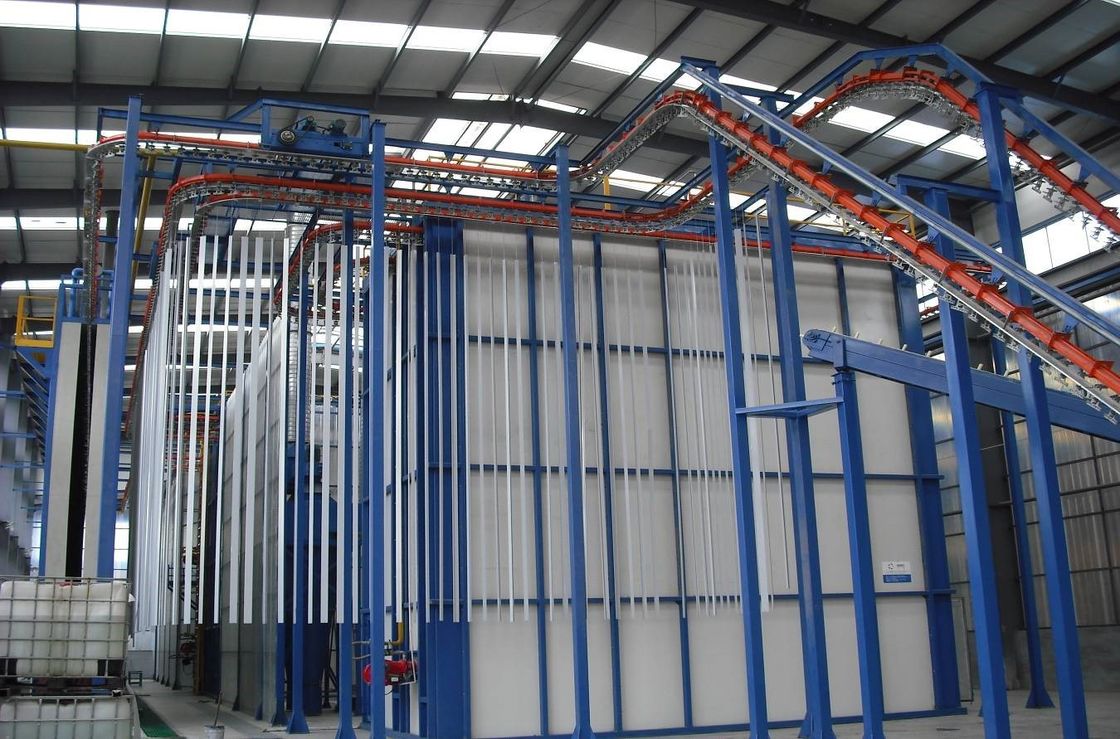

Automated Industrial Powder Coating Line Vertical Aluminium Profile

1set
MOQ
RMB3500000-4000000/set
Price
Automated Industrial Powder Coating Line Vertical Aluminium Profile
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 1200T/month
Mode: Vertical
Operation Mode: Continuous Spraying
Film Thickness: 60-80µm
Max Profile Length: L7000mm×W100mm×H200mm
Spraying Way: Prior To Automated Spraying
Working Speed: 1.5-2m/min
Voltage: 380V~415v
High Light:

Automated Powder Coating Line

,

Powder Coating Line Aluminium

,

Industrial Coating Line Vertical

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-AL
Model Number: PCPL-1200T
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 80-90days
Payment Terms: T/T
Supply Ability: 1set/two month
Product Description

1200T/month Powder Coating Production Line



1, Major Equipment  Parameter

1,1 Design consideration (confirmed by the factory)



Workpiece name



Aluminium profile



Workpiece material



Aluminium alloy



Workpiece parameters (one-piece)



Maximum workpiece dimension: L7000mm×W100mm×H200mm



Standard workpiece dimension: L7000mm×W50mm×H100mm



Standard workpiece weight: 3.3Kg/piece; maximum workpiece weight: 30Kg/piece



Output



monthly output:1000- 1200 tons/year



Equipment working system



8h



Speed of conveying chain



Normal speed of production chain:1.5- 2.0m/min (the running speed of chain 1.0-3.0m/min can be adjusted steplessly)



Type of spraying



Powder coating



Way of conveying



Suspension conveying (cross track)



Technical temperature



200℃ (adjustable under 230℃)



Heating method



Heated directly by fuel gas and heated air circulation



Fuel



Natural gas

Factory size (minimum)

60000mm×24000mm×13500mm(L×W×H)






2, Main technical parameters and features

No.



Name



Description

  01



Suspension conveying chain



Speed: the normal speed of production chain is 2000mm/min, and the running chain speed is 1000-3000 mm/min which is continuously adjustable



Chain pitch: T=400mm; cross track, single-point sling load: 30Kg



Hanging pitch: 200mm, 100mm, 66mm, 150mm and 133mm



Maximum gas consumption: the water vapour is about 500KG/H (temperature rise)=400 thousand kilocalories/h water heater

  02



Powder spraying and recovery



Powder spraying room and recovery system, 1 set in total



Cyclone secondary recovery, setting the ultimate filter (bag type)



Powder recovered by cyclone is pumped into the powder supply bucket and reused.

.

   03



Drying oven, curing oven

heating energy



Heating energy: natural gas



Maximum gas consumption: about 100M3/H (temperature rise)



Temperature rise time: ≤45 min



Exterior furnace wall temperature: ≤room temperature+15℃ (large area of surface)

   04



Power



Power supply: 3-phase 5-line, 380V, 50Hz



Single-phase voltage stability: 220V+10%; three-phase voltage stability: 380V+10%



Total power: about 161.0KW

   05



Air compression



Pressure: 7-8Kgf/cm2



Maximum gas consumption: 12.5 M3/MIN



Clean and dry air: maximum short-time flow 12M3/min, oil content ≤0.01ppm

  06



Water consumption



industrial water



P=1bar; Q≤4M3/h(maximum)



Pure water



u≤10us/cm; Q<4.5M3/h (maximum)

   07



Quality and requirements



Cured films should be well-distributed and firm, it's not allowed to have chameleon phenomenon such as yellowing.

   09



Output computation method



For example: normal speed of production chain is v=1800mm/min, hanging pitch (mean value) is T=150mm. One-piece weight (mean value) is q=3.3kg/piece. Working time:22hrs/day, 30days/month

Hourly output: Q(1500mm/min÷150mm/piece×60mi)×3.3kg/piece=1.98T/h.

Monthly output: M =1.98T/h×22hrs/day×30days/month=1306.8T/monthThe resulted calculated above is just a theoretical value, and the output assessed may be different based on the mean value of all the enterprises.







3, The major components of equipments



   No.



Name



Specification



Quantity

    01



Feeding and blanking conveying system (platform)



Feeding conveying system, 1 set





       1 type



Blanking conveying system, 1 set





Auxiliary blanking conveyor



    02



Suspension conveying chain



Chain and support frame





       1 set





Actuating device





       3 sets





Tensioning gear



         1 set





Rotary hanger





        Umpty



   03



Cascade pretreatment and supporting system



Tent and overhauling channel





          1 set





Water pump and pipeline





          9 sets





exhaust gas fan and pipeline





           1 set





Reservoir (bottom water channel)





            1 set





Sewage treatment system and waste gas treatment system





No configuration

   04



Moisture drying oven



Furnace body





             1 set



Heating and heated air circulation device





Fuel machine BG400, 1 set



   05







Automatic electrostatic powder spraying system



Rolling shutter machine













1 set



Cyclones





Bag filter and filter bag





Draught fan and in-and-out air hose, etc





Powder spraying elevator (effective travel: 7600MM)



   06



Powder curing oven



Oven body





            1 set



Heating and heated air circulation device





Fuel machine BG550, 1sets



   07



Electronic control system





Electrical cabinet, electric wire and trunking, etc





           3 sets



   08



Powder spraying gun





Optional equipment



Configured by client



   09



air compressor





Optional equipment





Configured by client





2, Feature description and detailed configuration of the major components

2.1 Feeding and blanking conveying system:

It’s made up of synchronous aluminium products feeding belt conveying platform, synchronous aluminium products feeding belt conveying platform, support, driving system, inclined auxiliary blanking conveyor.

Auxiliary conveyor: the aluminium products should be suspended over the lines to the feeding conveying platform in case of crash between workpieces. The aluminium products coated should be dropped down smoothly and steadily in case of crash between workpieces, and the running speed is adjusted by frequency control so that it’s convenient to get synchronous with the chain.



  No





         Name





  Content





Quantity

  01



Feeding conveying system



Conveying platform: L5000*W100*H100, 4pcs





1 set



Synchronous belt: Length: 10.4M*width 80 mm *thickness 6mm





Main support: square tube 100*﹩2.5





Motor: 1.5KW. gear motor





Transmission mode: ¢35 round steel, long axis, chain wheel, chain and synchronous pulley





Speed adjustment mode: frequency control



  02



Blanking conveying system



Conveying platform: L5000*W100*H100 4pcs



    1 set



Synchronous belt: length: 10.4M*width 80 mm *thickness 6mm





Main support: square tube 100*﹩2.5





Motor: 1.5KW gear motor





Transmission mode: ¢35 round steel, long axis, chain wheel, chain and synchronous pulley





Speed adjustment mode: frequency control



  03



Auxiliary balnking conveyor



Blanking conveyor: length 11.5 M*width 150 mm

   1 set



Transmission system: chain wheel, chain and 6 roller chain, 23.5m in total





Loose piece: nylon L120*W100*﹩10 mm,234pcs





Guide pillar: nylon ¢30*H100





Motor: 0.37 KW gear motor, frequency control







2.2 Suspension conveying system:

Suspension conveying system: is made up of actuating device, driving chain, cross chain, track, tensioning gear, once hanger, stand and automatic adding machine, etc.

To meet the demand of wearproof, manganese steel is used for the crooked part of track of chain with carburizing treatment that it is solid and wear-resisting. Double strand chain is used for the power transmission chain, and mechanical safety, mechanical adjustable clutch and variable frequency motor are set on the chain wheel.

2-3 sets of chain driving systems are used in the whole line to get driven synchronously so as to make the chain run smoothly. Self-compensating tensioning gear, synchronous frequency converter stepless speed regulating can be in reliable operation.

 01



Total length of chain



Length: about310m

 02



Whole-line actuating device



1.5KW * 3 sets

 03



Tensioning gear



1 set

 04



Running speed



Standard production speed 1.5m/min (chain running speed 1.0-2.0m/min, stepless and adjustable)

 05



Track stand



Square tube: 150*150*δ3.5

 06



Actuating device



Body frame



Square tube: 50X2mm



Motor/speed reducer



Variable-frequency three-phase machine: 1.5KW-4P



Chain wheel



Cast steel



Quantity



3 sets

 07



Type and specification of chain



Type



XF400.80 (cross track chain, cross section 115*47)



Pitch

T=200*2 mm



Single-point sling load

30KG



Method of lubrication



1 set of automatic oiling machine



Type of tensioning



1 set of heavy-punch tensioner

 08



Hanger



Once hanger (rotary hanger): 1200 pcs







2.3  Cascade pretreatment and supporting system:

Mode of pretreatment: cascade (shower the workpieces with well-distributed cascade by basin)

Cascade pretreatment has advantages as follows:

1, Cascade pretreatment: made up of aqua storage tank, tent (workpiece channel enclosure), process clapboard, water circulation system (water pump, heater)

2, PP plate structure applied can be in a long service life, and has a strong resistance to corrosion that frequent maintenance is unnecessary.

3, Cascade formed by basin can shower the workpieces well-distributedly from top to the bottom, and the workpieces can be cleaned completely that the evenness of surface treatment to the products is very high.

4, It has the function of sediment and filtration of water tank. After the dirt is washed away from the surface of workpieces, it will not come back again. Thus, the cleanliness degree of workpiece surface is higher than immersion. Compared with immersion, the capacity of water channel is small, heat exhaustion is less and the floor area occupied by equipments is small.





 No.



       Name



     Technical specification

01



Pretreatment process



Processing stations: 9



Order of processing: washing 1Automated Industrial Powder Coating Line Vertical Aluminium Profile 0pre-degreasingAutomated Industrial Powder Coating Line Vertical Aluminium Profile 1main degreasing Automated Industrial Powder Coating Line Vertical Aluminium Profile 0washing2Automated Industrial Powder Coating Line Vertical Aluminium Profile 3washing 3Automated Industrial Powder Coating Line Vertical Aluminium Profile 4chromizing Automated Industrial Powder Coating Line Vertical Aluminium Profile 4washing 4Automated Industrial Powder Coating Line Vertical Aluminium Profile 6washing 5Automated Industrial Powder Coating Line Vertical Aluminium Profile 7washing 6(Pure water washing)

02



Boundary dimension



Total length: 35.00m





Boundary dimension of tent: L17500*W2200* H9580mm





Bottom aqua storage tank: H950*W1500 mm*L.



03



Installed power

65KW
04



Heating source



Steam: 350 thousand kilocalories/h



05



Water consumption



Industrial water: 4M3/h





Pure water: 4.5M3/h



06



Wastewater discharge

<8M3/h



Remark: due to the different demand of pretreatment process, the mode of pretreatment should be confirmed by client







Instruction of pretreatment structure:



No.



Name



Instruction

01



Water storage tank



Quantity: 9 sets



Tank material: &15mm PP plate



Bottom stand: steel channel 10#/A3



Removable head: &10mm PP plate

02



Side plate and top plate of tent

Side panels of the shed: multi-layer composite high-strength corrosion-resistant PVC soft curtain
Roof of the shed: 15.0mm PP board



Main framework of tent: flat tube 120*40*3.0mm/A3,120*80*3.0mm/A3, steel channel 8#/A3

03



Processing clapboard and end plate

(groove clapboard)



Material of clapboard: &10mm PP plate



H1.8m dodge gate configured on the bottom of clapboard, the material is &10mm PP plate



Two-layer clapboard is loaded with soft rubber plate in the area of exits and entrances in case of bath solution overflow



Dodge gate loaded with soft rubber plate on the bottom of clapboard in case of bath solution channeling

04



Cascade basin



Quantity: 36pcs



Material: &10mm PP plate



Removable-type design: the distance of cascade can be adjusted according to different workpieces

05



Bath solution circulating system



Each processing station is equipped with a set of bath solution circulating system, 9 sets in total



Constitution of bath solution circulating system: circulating water pump, filter screen, pipeline and regulating valve, etc



Corrosion-resistant pump material: MHB4 alloy pump



Material of bath solution filter screen: nylon filter screen



Pipeline, valve material and supporting: PVC pipe and PVC valve



Line pressure detection and control: pressure gage 0-4kg/cm2 , Φ80mm

06



Water charging system



Flowmeter is used for the pre-separation tank, degreasing tank and chromizing tank to control replenishing water regularly



Automatic water replenishing device is used for rinsing tank



Material of water replenishing pipeline and valve inside the equipments: PVC pipe and PVC valve



Automatic water replenishing valve: stainless steel ball float valve



Material: 316L stainless steel

07



Overflow system



8# tank (washing) overflows to 7# tank, 7# tank (washing) overflows



6# tank (chromizing tank) overflows



5# tank (washing) overflows to 4# tank (washing), 4# tank (washing) overflows



3# tank (main degreasing) overflows, 2# tank (pre-degreasing) overflows



Tank overflow inside and outside and blow-off pipe: PVC pipeΦ60

08



Sewerage system



9sets in total



Blow-off pipe: 1 set in each tank, 9 sets in total



Material of blow-off pipe: PVC pipe Φ75



Material of blow-down valve: PVC valve



09



Exhaust draindown system



Drought fan: 2 sets



Power: 3.0KW



Material of air hose: PVC

10



Groove face grating



Removable grating is convenient for maintenance



Grating material: fiberglass

11



Platform and guardrail



Total length: 36.0m



Top installation platfor and guardrail are convenient for adjusting cascade basin



Platform: 2m/A3 riffled steel plate. Guardrail: square tube 40*20/A3

12



Maintenance ladder



Quantity: 1 set



Material: square tube 80*40/A3, square tube 30*30/A3









Equipments and configurations in the process section of pretreatment-water pump and supporting:





Station



      Name



Configuration of water basin and water pump



Main pipeline



Filter screen

1#



Washing 1



Quantity of cascade basin: 2 pcs



¢75 PVC pipe



Standard chemical nylon filter screen



Equipped with circulating water pump: 1 set



Type of water pump: 65FCHB20S, metal antiseptic pump



Parameter of water pump: P=4kw, Q=30M3/h/, H=20M.



Water collection tank (circulating water tank): 1 set

  2#



Pre-degreasing



Quantity of cascade basin: 6 pcs



¢110 PVC pipe



Standard chemical nylon filter screen





Equipped with circulating water pump: 1 set





Type of water pump: 100FCHB20S, metal antiseptic pump





Parameter of water pump: P=11kw, Q=100M3/h/, H=20M.





Water collection tank (circulating water tank): 1 set

  3#



Main degreasing



Quantity of cascade basin: 8 pcs



¢110 PVC pipe



Standard chemical nylon filter screen





Equipped with circulating water pump: 1 set





Type of water pump: 100FCHB20S, metal antiseptic pump





Parameter of water pump: P=11kw, Q=100M3/h/, H=20M.





Water collection tank (circulating water tank): 1 set

  4#



Washing 2



Quantity of water basin: 2 pcs



¢75 PVC pipe



Standard chemical nylon filter screen





Equipped with circulating water pump: 1 set





Type of water pump: 65FCHB20S, metal antiseptic pump





Parameter of water pump: P=4kw, Q=30M3/h/, H=20M.





Water collection tank (circulating water tank): 1 set

  5#



Washing 3



Quantity of cascade basin: 2 pcs



¢75 PVC pipe



Standard chemical nylon filter screen





Equipped with circulating water pump: 1 set





Type of water pump: 65FCHB20S, metal antiseptic pump





Parameter of water pump: P=4kw, Q=30M3/h/, H=20M.





Water collection tank (circulating water tank): 1 set

  6#



Chromizing



Quantity of cascade basin: 8 pcs



¢100 PVC pipe



Standard chemical nylon filter screen





Equipped with circulating water pump: 1 set





Type of water pump: 100FCHB20S, metal antiseptic pump





Parameter of water pump: P=11kw, Q=100M3/h/, H=20M.





Water collection tank (circulating water tank): 1 set

  7#



Washing 4



Quantity of cascade basin: 2 pcs



¢75 PVC pipe



Standard chemical nylon filter screen





Equipped with circulating water pump: 1 set





Type of water pump: 65FCHB20S, metal antiseptic pump





Parameter of water pump: P=4kw, Q=30M3/h/, H=20M.





Water collection tank (circulating water tank): 1 set

  8#



Washing 5



Quantity of cascade basin: 2 pcs



¢75 PVC pipe



Standard chemical nylon filter screen





Equipped with circulating water pump: 1 set





Type of water pump: 65FCHB20S, metal antiseptic pump





Parameter of water pump: P=4kw, Q=30M3/h/, H=20M.





Water collection tank (circulating water tank): 1 set

  9#



washing 6(Pure water washing)



Quantity of cascade basin: 2 pcs



¢75 PVC pipe






Equipped with circulating water pump: 1 set





Type of water pump: 80FCHB15S, metal antiseptic pump





Parameter of water pump: P=5.5kw, Q=40M3/h/,H=15M.





Water collection tank (circulating water tank): 1 set





Water pump manufacturer



Jeika







2.4 Moisture drying oven 1 set

Technical features and functions:



Moisture drying oven is used for drying the aluminium profile after pretreatment, which means the ways of updraught and down-shot heated air circulation are used to dry aluminium products. Besides, in design, the hot air forms a kind of strong convection current so that there is the air curtain formed inside the oven, the purpose of this is to reduce the overflow of heat. The frame structure has a good rigidity and little heat leakage that it’s energy-saving.

There is no guard railing on the top of oven, and it’s equipped with a ladder stand for the personnel, which makes it easy for maintenance.

Hot-air blower is imbedded on the top of oven, connected by bolts and screws, air-cooled, which is convenient for maintenance and replacement.

The cover of air flue is a removable grating plate with an access door set, which is convenient for clearing the oven inside.



No.



 Name



Technical specification

01



Operating temperature



80—90℃, maximum 100℃

02



Temperature rise time

﹤45min
03



Temperature difference between oven wall and room

﹤15℃
04



Temperature difference in workpiece area

﹤+5℃



05

Time of drying

8-10 min



Drying condition: for the first drying workpiece after dropping water (aluminium products)

06



Boundary dimension

L9480*W2385*H9280 mm.
07



Track length inside the oven



About 19m

08



Mode of temperature control



Heated air circulation, automatic temperature control

09



Energy



directly heated by natural gas

10



Installed power

﹤13KW
11



Exit&entrance of workpiece



Size: W400*H8300mm

12

Side frame inside the oven

Galvanized bolts assembled and connected

13



Outside surface of oven



Stand square tube is coated with anti-corrosive primer+blue finishing coat, board surface: primary colour







Structure specification:



No.



Name



Instruction

01



Side plate of oven



Main body framework: flat tube 120*40*3.0mm/A3,120*40*3.0mm/A3



Insulating layer: standard rock beam and laminboard, thickness: external &150mm (&0.8mm/A3 color coated sheet, inside &0.8mm/A3 zinc sheet).



Weight of rock wool: 100K

02



End plate of oven



Main body framework: flat tube 120*40*3.0mm/A3,120*40*3.0mm/A3



Insulating layer: standard rock beam and laminboard, thickness: external &150mm (&0.8mm/A3 color coated sheet, inside &0.8mm/A3 zinc sheet).



Weight of rock wool: 100K

03



Hot air duct of oven



Main body framework: flat tube 70*70*2.0mm/A3,30*40*2.0mm/A3



Inner plate: &1.0mm/A3 zinc sheet

04



Oven top



Crossgirder of oven top: flat tube 200*100*4.0mm/A3, angle iron 40*40*4.0mm/A3



Draught fan permanent seat: assembled by &6mm/A3 and 7# angle iron, convenient for maintenance.



Insulating layer: 150 mm100K rock wool board



Top pinch plate: inside &1.0mm/zinc sheet, external &1.0mm/A3.

05



Baseplate



Bottom pinch plate: &1.0mm/A3 zinc sheet



Insulating layer: 50 mm100K rock wool board



Inner frame: angle iron 25*2.5

06



Heating system



Hearth: heat-resisting stainless sheet &2.5mm, flange connection, convenient for dismantlement



Hearth connecting flange: &8.0mm/Q235 heat-resisting steel plate



Burner: BG400 1 set

07



Hot-air blower



Air-cooled vane draught fan, temperature resistance 250℃



Motor: 3KW



Flow: ﹥12500M3/H



Full pressure: 230Pa



Quantity: 3 sets in total

08



Air outlet of oven bottom



Hot galvanizing flat iron grating



Zinc plate, angle iron 25/A3

09



Ladder



Main body framework: square tube 80*40*2.5mm/A3



Ladder stand guardrail: flat iron 40mm*&4.0mm



Ladder stand step: square tube 30*30*2.0mm/A3

10



Guardrail of oven top



Guardrail height: 1100 mm



Flat tube: 40*20*1.5mm/A3

11



Chimney air hose



&0.8mm galvanized sheet spiral duct

12



Access door



Quantity: 1 type





Material: stand square tube 120*40*3.0mm/A3, insulating layer: 15 rock wool





2.5 Automatic electrostatic powder spraying system

Feature description:

Rolling shutter powder spraying system is designated for the vertical powder spraying of aluminium profile, and the shape of conveying chain inside spraying room is V, where there is equipped with hanger reversing gear in the intermediate point. Workpiece can rotate for 180°intermediate point, and the spray guns on the elevator are arranged in V. Workpieces are moved to the elevator where spray guns are equipped through conveying chain. Spray guns can spray powder to workpieces from one side, and when the workpieces move to the middle part of V track through reversing gears, it rotates for 180°. Thus, two sides of workpieces can be sprayed in the single powder spraying room. Two sets of powder spraying rooms are arranged side by side, and there is a set of hanger rotation device installed between two spraying rooms, one is used to spray the front side, rotating for 180° before going to the other spraying room. The other one is used to spray the reverse side so as that both sides can be sprayed.

The air in the spraying area can be discharged from the vertical joints of air draft barrel of spraying room. Air draft barrel of powder spraying room is joined with cyclone recovery system. Floating powder in the spraying area can be recycled by cyclone recovery system. And the superfine powder can be recycled by the filter recovery system. The automatic roller shutters can be retractable while changing colors fast in the powder spraying room. Besides, the problem of cross color can also be avoided effectively. Base plate is installed on the bottom of powder spraying room to collect the powder poured out in case of waste and pollution.

Rolling shutter device:

Core tube air draft system is connected with cyclone separator, and the design of rolling shutter is used that it’s convenient to change colors. Besides, with the electrodynamic automatic rolling shutter, and the part of core tube that is equipped with a trolley to clear up powder, it will be fast to clean the powder in the V hole of core tube.



 No.





Name





Instruction



01



Boundary dimension

L4300×W2300×H9600mm
02



Air draft core tube



Material: steel plate 3/A3 roller





Coating: epoxy paint inside, antirust paint outside+blue finishing paint



03



Main body side stand





Square tube 120×3mm



04



Top and bottom stand





Square tube 60×2mm, square tube 120×80×3mm/A3



05



Passageway and guardrail



Botton of passageway: zinc-coated grating, bottom stand: square tube 60×2mm/A3



Guardrail: square tube 40×20×1.5mm/A3



06



Rolling shutters rollers



Length: L2200MM*2 sets





Material: galvanized tube





Rolling shutters rollers driving motor: 0.37KW



07



Coretube powder-cleaning trolley



1 set

08



Roller shutters curtain PU



2 rolls

09



Pressing plate



2 sets

10



Joint air hose



2mm /A3 roller, 1 batch











Cyclone configuration:

This is used for recycling the dust in the air of powder spraying room, and the recovery rate is 95—98﹪. It’s connected to the core tube of spraying room in the entrance, and the exit is connected to the entrance of filter. Dust collected can be recycled through peristaltic valve and pumped into sifter and powder barrel.



No.



Name



Instruction

01



Boundary dimension



Main body: 2500×2500×11600mm



Barrel body Ø1530×7600mm

02



Exhaust tube



Connected to the air hose of spraying room: steel plate 2mm/A3 roller+screw-thread galvanized air hose



Connected to the air hose of filter: galvanized sheet: 1.0mm, spiral tube

03



Cyclone body



Material: 3mm/A3 steel plate, roller



Mode of surface treatment: epoxy paint inside, antirust paint outside+blue finishing coat

04



Main body stand



Main body stand: square tube 120×80×2.5mm



Side stand: square tube 80×40×2.5mm



Fixed platform of cyclone barrel body: square tube 60×60×2.5mm

05



Maintenance platform blanking plate



Checkered plate 2mm/A3

06



Guardrail



Guardrail height: 1100 mm





Square tube: 40×20×1.5mm/A3



07



Ladder



Quantity: 1 piece





Step material: square tube 30×1.5mm/A3



08



Peristaltic powder conveying tube



2 sets





Type and brand: DN80,





Powder conveying tube: chequered tube L=5





Control mode: PLC automatic control







Filter element dust collection device:

A combined polyester fiber filter bag is adopted, the recovery rate of dust is over 99.99%, and the exhaust emission is less than 0.04MG/M3. A removable inspection door is set on the top of filter for the convenience of maintenance and inspection. An automatic power-driven blow-off valve is set on the botton to release the power of work.



No.



Name



Instruction

01



Boundary dimension



Main body of filter: L2060×L2060×H6600mm



Installation platform support of draught fan: L2060×1800×5400mm



Main material of supports: square tube 120×80×2.5mm/A3

02



Main body



External cover plate: 3m/A3 plate



Main material of inner frame: square tube 80*40*3.5 and square tube 40×40×2.5mm/A3

03



Exhaust fan



Centrifugal fan



Power: 55KW



Blast capacity: 26000M3/H

04



Joint air hose



Screw-thread zinc pipe: ∮0.8mm/ zinc sheet



Air hose flange: steel plate 6/A3

05



Air pocket pipe



Seamless steel tube: Φ219mm



Steel channel 10#

06



Electromagnetic valve



Pulse mode: G1.5”



Quantity: 25pcs

07



Back flushing pipe



Quantity: 25pcs



Material: zinc pipe installed and welded



08



Filter bag



Specification: standard polyester filter bag φ230×3000 mm





Quantity: 100pcs





Filter fineness





Filter bag arrangement form: 1×2 integrated-type rectangular array



09



Waste powder emission

(sealed on the bottom)



Vacuum and isolated automatic blow-off valve 1 set



Power: 1.1kw



Manner of working: interrupted, PLC self-timing emission control

10



Waste powder traveling bogie



Quantity: 1 set





Material: square tube 60×40/A3



11



Pulse controller

PLC
12



Overhauling ladder



Combined type and integrated, ladder (step) material: square tube 40×40/A3







Electrodynamic-type reciprocating elevator:

Technical description:

  1. Effective travel: 7600MM
  2. The maximum running speed: 630mm/s
  3. Set high-low stroke limit protection switch, accumulate error to correct the system

      d. Quantity available to equip spray guns: 24pcs

     e. Standard wear-resisting T track and wear-resisting guide pulley combinational design, which have the features of strong stability and long service life.

      f. German-made products are used as supporting to the key components, such as speed reducer, motor and PLC, etc.

      g. Double-insurance machinery safety design of, and it will reset automatically when it’s shut down, human-computer interface is centralized for operating control.

No.



Name



Structure specification

01



Boundary dimension

L815×W572×H10500mm
02



Main body



Internal frame: square tube 120×60×3.5mm



External sealing board: A3 board, thickness is 2mm



Guide rail: standard T track



Foundation: thick steel plate 15MM

03



Lifting trolley



Guide pulley: N66 finish machining



Body frame: steel plate installed and welded



Drive chain: 5 chains on triplex row

04



Bob-weight trolley



Guide pulley: N66 finish machining



Body frame: angle iron



Bob-weight chain: 5 chains on double rows



Clump weight: umpty

05



Guide bearing

NACHI
06



Gear motor



Power: 2.2KW



Manufacturer: German SEW

07



Gun barrel and gun rack



A3 structural steel, 1 set

08



Caterpillar chain



Engineering plastic chain, W250 type

09



Dust seal



Nylon hairbrush

10



Travel control



Encoder and Siemens PLC

11



Speed regulation



Frequency converter+PLC

12



Error correction



1 type





2.6 Powder curing oven

(A) Technical feature and function:

Powder curing oven is used in curing aluminum profile after it’s sprayed with powder. Up-draft and down-blow heated air circulation is adopted to cure and spray the aluminum product and make wind screen area and powder curing area operate independently, thus making outlet and inlet inside of oven form an air curtain to reduce the heat overflow. Unique carrying wind system in the curing area makes air temperature inside of the oven more uniform, which is easy for curing and leveling powder. Frame structure has nice rigidity, less heat leakage, and is energy-saving.



The top of the oven is equipped with guard railing, and ladder stand for staff use, which are conducive to maintenance.

Upper cover of wind screen and air flue adopts separable grating plate and sets access door, which are conducive to clear the inner oven.





No.



Name



Technical specification



01



Operating temperature



200℃
02



Boundary dimension



L9480*W6410*H9280 mm.
03  Temperature difference between oven wall and indoor ﹤15℃
04  Temperature difference in workpiece area ≦+5℃
05



Curing time



22 min
06



Chain speed Designed



2.0 m/min (national standard workpiece, wall thickness is 1.0mm aluminum profile)

07



Temperature rise time



≦45min
08



Track length of oven inside





41+15meter

09



Temperature control mode





Heated air circulation and automatic temperature control



10



Energy





Heated directly by natural gas



11



Installed power



﹤27KW
12



Workpiece outlet and inlet





Dimension: W400*H8300mm



13



Side frame of oven body





Galvanized bolt assembled and connected



14



Outside surface of oven body





Stand square tube is sprayed with anti-corrosive primer+ blue finishing coat, board: primary color



(B) Structure specification:



No.



Name



Instruction

01



Side plate of oven



Main body framework: flat tube 120*40*3.0mm/A3, 120*40*3.0mm/A3



120*40*3.0mm/A3,120*40*3.0mm/A3



Insulating layer: thickness of standard rock beam laminboard is &150mm (external &0.8mm/A3 color plate, internal &0.8mm/A3 zinc plate).



Weight of rock wool: 100K

02 End plate of oven body



Main body framework: flat tube 120*40*3.0mm/A3,120*40*3.0mm/A3



Insulating layer: thickness of standard rock beam laminboard is &150mm (external &0.8mm/A3 color plate, internal &0.8mm/A3 zinc plate).



Weight of rock wool: 100K

03  Hot air flue of oven inside



Main body framework: flat tube70*70*2.0mm/A3, 40*40*2.0mm/A3



Inner plate: &1.0mm/A3 zinc plate

04  Median septum of oven body



Main body frame work: flat tube 70*70*2.0mm/A3,40*40*2.0mm/A3



Insulting plate: thickness of standard rock beam and laminboard is &150mm.

05



Oven top



Crossgirder of oven top: flat tube 200*100*4.0mm/A3, angle iron: 40*40*4.0mm/A3



Permanent seat of draught fan: assembled by &6mm/A3 and angle iron 7#, which is convenient for maintenance.



Insulating layer: &1.0mm/A3 zinc plate 150mm 100K rock wool plate



Top pinch plate: internal &1.0mm/ zinc plate, external &1.0mm/A3 plate.

06  Baseplate



Bottom pinch plate: &1.0mm/A3 zinc plate



Insulating layer: &1.0mm/A3 zinc plate 50mm 100K rock wool plate



Inner frame work: angle iron 25*2.5

07  Heating ystem Hearth: heat resistant stainless plate &2.5mm, flange form connection, which is convenient for disassembly.



Hearth flange connection: &8.0mm/Q235 heat resistant steel plate

Burner: BG550, 1 sets
08



Hot air blower



Air-cooled and vane air blower, temperature resistance is 250℃



Motor: 3KW



Flow: ﹥12500M3/H



Full pressure: 230Pa



Quantity: 4sets in total

09  Air outlet of oven bottom



Hot galvanizing flat iron grille



Zinc plate, angle iron 25/A3

10





Ladder



Main body framework: square tube 80*40*2.5mm/A3



Ladder guardrail: 40mm*&3.0mm flat iron.



Ladder step: square tube 30*30*2.0mm/A3

11  Guardrail of oven top



Flat tube: 40*20*1.5mm/A3



Guardrail height: 1100 mm



12  Chimney air hose



&0.6mm zinc plate spiral air hose



13 Access door



Quantity: 1 set





Material: stand square tube 120*40*3.0mm/A3, insulating layer: &150mm rock wool





Automated Industrial Powder Coating Line Vertical Aluminium Profile 8



2.7 Electronic control system

(A) Feature description:

(1) Production line adopts centralized control cabinet to control, operated by man-machine interface, which is of perpetual intuition and easily operation.

(2) Display of monitoring appropriately of curing oven temperature.

(3) Display of operation status of the equipment.

(4) Key position of production line sets emergency stop button to assure safety.

(5) Main components and parts select original import or co-invested brand, which lengthen service life, thus lowering failure rate.

(6) Adopting chain design and sound-light alarm system to avoid sudden failure and component damage.

(B) Detailed configuration:

No.



Name



Instruction

01



Electric control cabinet



A3 plate powder spraying

02



Touch screen



10.4 inch color, manufacturer: Siemens

03 PLC



Siemens

04 Frequency converter



Mitsubishi

05  Temperature control module



Siemens

06



D/A module



Siemens

07  Temperature probe PT100
08  Contractor



Schneider

09  Thermorelay



Schneider

10  Disconnector



Schneider

11  Indicator light



Schneider

12



Button



Schneider

13 Electric wire and cable



Produced in Guangdong

14  Wireway



Galvanized plate, pretreatment part is plastic wire groove



2.8 Power source configuration sheet:

The biggest operational consumption (reference value) of each stand-alone when spray the powder (not including wood grain)

 No. Equipment name

 Electricity consumption

(Kw/h)

 Compressed air

(m3/min)

 Industrial water consumption

(T/h)



Natural gas

(m3/ h)

01  Feeding and blanking platform and supplementary blanking machine 4.0
02



Suspension pipeline

6.0 0.5
03 Pretreatment (heating oven excluded) 65.0   4.0
04



Moisture drying oven

12.0     30.0
05 Spray room and elevator (1 set of configurations) 50.0 6.5
06



Curing oven

24.0     50.0
07



Total

161.0 7.0 4.0 80.0



Remark: the above is the biggest installation energy consumption, not including consumption of furnace, air compressor, spray gun, workshop illumination and sewage treatment.







2.9 Equipment color matching sheet:

Main equipment color spraying in production line

No.



Name



Instruction

01



Equipment main body



Pretreatment: panel—hoary PP plate (primary color); panel stand sectional material—peacock blue





Curing oven: insulating panel—hoary color plate (primary color); insulating panel square tube external stand—peacock blue



02



Upright and hanging bracket



Peacock blue

03



Elevator

Peacock blue
04



Chain track



Nacarat

05 Guardrail



Yellow

06



Electric machine and outsourcing supporting



Primary color

07



Remark: the above is the color matching of main equipments. Please refer to relevant pictures for others.









3, Engineering scope of responsibility (equipments not in price, etc)

 No.



Project content



Division of responsibility



Buyer



Seller

01  Workshop and configuration



Workshop, floor of workshop, equipment basis





Wall and rooftop tapping and leakage repairing, etc



Fire fighting and ventilation facilities of workshop



Pretreatment of pool and antiseptic



Pretreatment sewer, pool and antiseptic, etc

02



Power supply

 Workshop power supply, from wall electricity box to various equipment electric cabinet tube and wire, etc.



Workshop illumination



Internal wiring and trunking of equipment





Internal electricity box and electric cabinet of the equipment

03 Water supply



Water pipe of the workshop is connected to water supply point of equipments





Preparation of pure water is connected to water consuming point of equipments



Internal water pipe and valve, etc of equipment


04



Water drainage



Underground embedded pipe and groove





Drainage ditch and cover plate



Sewage treatment, etc

05 Energy  Energy (liquefied gas) supply depot and pipeline



Connected to the place of equipments operation



Steam and pipeline are joined up to equipment

06



Air compression



air compressor ,cooling equipment and pipeline





Connected to pipe and valve of equipments

07 Electrostatic powder spraying gun



Powder spray gun and control system





Powder barrel and powder supply system

08



Others



Powder spraying room and isolation room


 Install necessary water supply, power supply and gas cutting, etc



Unloading and lifting tools, etc in the equipment field

 Note: √ refers to responsible party
Recommended Products
Get in touch with us
Tel : +86-18675161888
Fax : 86-757-8109-8395
Characters Remaining(20/3000)
