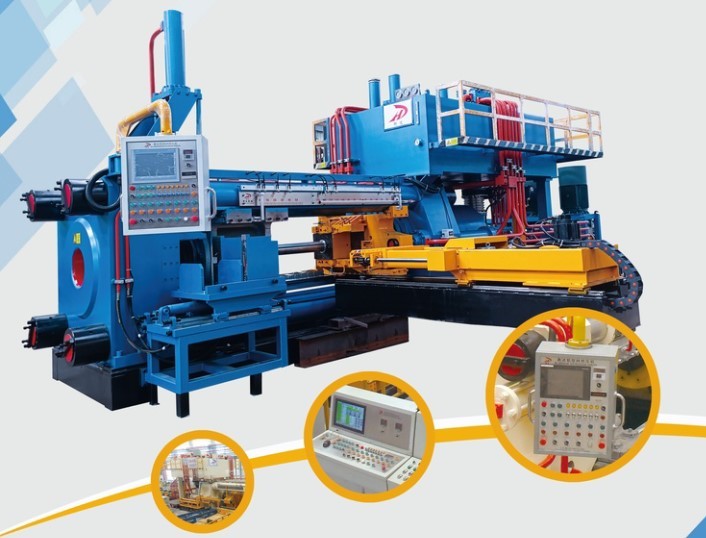

3000T Aluminum Extrusion Press Semiautomatic / Automatic Extruded Aluminium
Features Gallery Product Description Request A Quote
Features
Specifications
Extrusion Strength: 3000T
Billet Size: Φ254mm (10 Inch), Length 1300mm
Operation Mode: Semiautomatic Or Automatic
Main Cylinder Piston Diameter: Φ1120mm
Die Slide Size: Outer Diameter: ф580mm, Length:550mm
Discharge Hole Size: Φ350*420
Voltage: 380V~415v
Highlight:

3000T Aluminum Extrusion Press

,

Aluminum Extrusion Press Semiautomatic

,

Automatic Extruded Aluminium

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-AL
Model Number: AEP-3000T
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 30-60days
Payment Terms: T/T
Supply Ability: 1set/5 month
Product Description

3000T Aluminium Profile Extrusion Press Specification









1. Technical Parameters



(1) Dimensions of aluminium ingot



Dimensions of aluminium ingot



Ф254mm (10") ±1mm





Inner hole diameter of container



Ф264mm



Diameter deformation of aluminium ingot after using the hot shearing shall not exceed



+2 mm



Length of aluminium ingot



Maximum 1300 mm

Minimum 500 mm





If using two aluminium ingots for extrusion at the same time, the minimum length of each aluminium ingot is not less than 350mm.





Aluminium ingot curvature





2mm/m







(2) Extrusion capability



Extrusion force of the complete machine



280kg/cm² 3031MT



Extrusion force of the master cylinder



280kg/cm² 2757MT



Auxiliary cylinder forward extrusion force



280kg/cm² 274MT



Auxiliary cylinder reverse force



280kg/cm² 162MT



Container sealing



25Mpa 314TM



Container opening



25Mpa 200MT



Main shearing force



25Mpa 95MT



Shearing force of sliding mould base



25Mpa 64MT





(3) Stroke



Extrusion stem



1,700 mm



Container



500 mm





(4) Speed (Maximum speed during manual operation)



Maximum extrusion speed (adjustable)



0.2-22mm/s



Fast forward speed of crosshead



350 mm/s



Reverse speed of crosshead



320 mm/s



Sealing speed of container



130 mm/s



Opening speed of container



200 mm/s



Decline speed of main shear



500 mm/s



Return speed of main shear



700 mm/s





(5) Hydraulic system parameters



1. Oil pump



Primary oil pump



A4VSO250EO2 variable plunger pump Rexroth 35Mpa 4 sets





Auxiliary oil pump



A4VSO250EO2 variable plunger pump Ke Da 31Mpa 4 sets







A15VSO175 variable plunger pump Rexroth 35Mpa 1 set





Special Oil pump for die clamping





A2F23 plunger pump Li Hao 31Mpa 1 set





Special Oil pump for pressure guiding





SQP1-11 vane pump TOKYO KEIKI 17Mpa 1 set



Cooling filter pump





558 L/min quantitative centrifugal pump Guangyi 7 kg/cm2 2 sets





2. The master cylinder, quick cylinder, container cylinder, shears and sliding mode cylinder adopt the logical valve integration control, and the retainer support, etc. adopt the three-position four-way electro-hydraulic reversing valve integration control.





3. Main hydraulic components: Rexroth applied for high-pressure reversing-face valve selected from Rexroth.



(6) Electrical system:



Main motor controller





Hilectro servo drive





Manipulator controller:





Inovance servo control system



AC contactor



Schneider



Button switch



Schneider



Intermediate relay



Schneider





PLC





Siemens

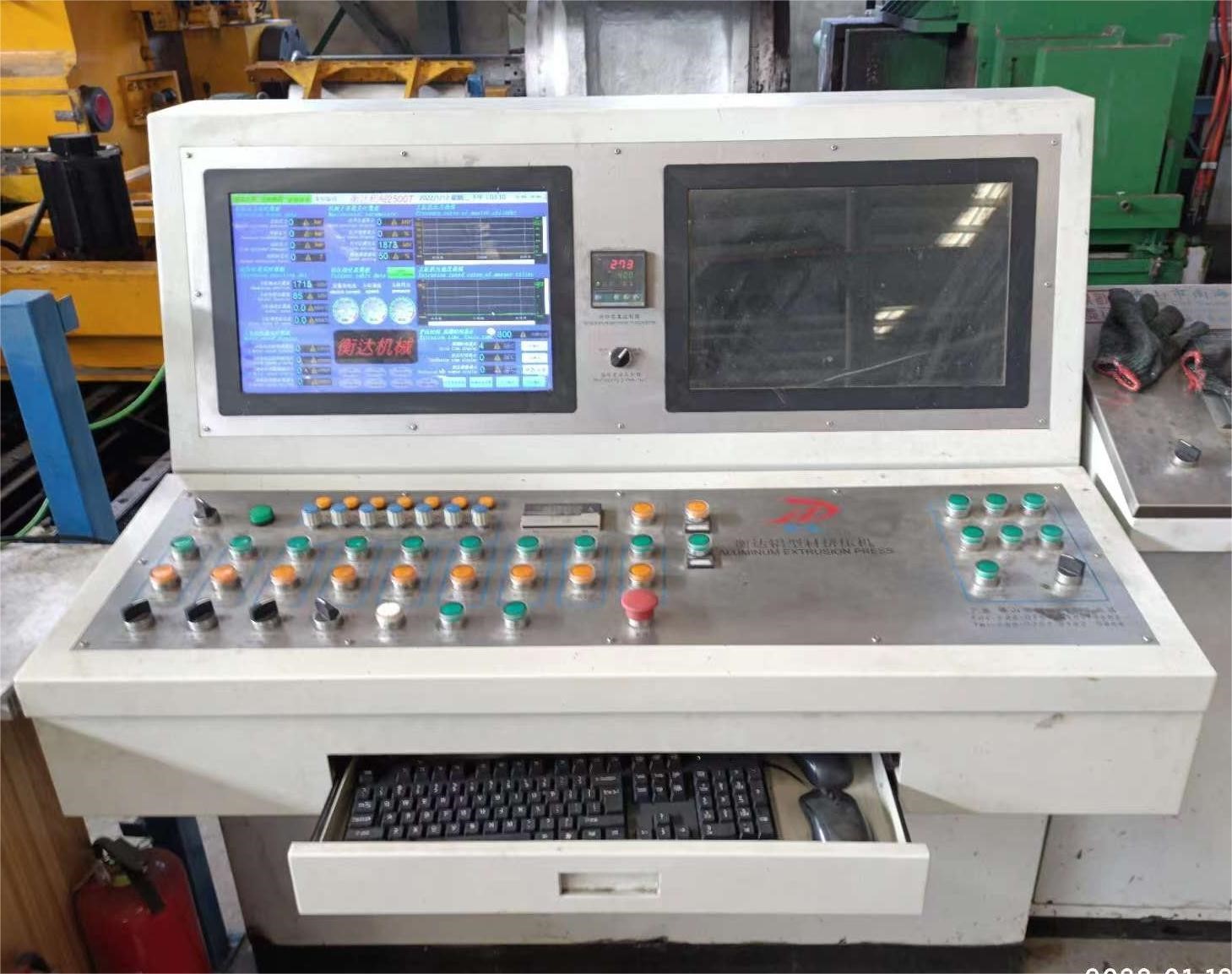

Human-machine interface





Fanyi 15" touch screen





Proximity sensor





Omron





Displacement Sensor





MTS (USA)







Motors:

Main oil pump motor



Servo motor (Liquid-cooled) HP130U1-G122W 175KW 4 sets (Hilectro)



Auxiliary oil pump motor



Servo motor (Liquid-cooled) HP13060-G102W 84KW 1 sets (Hilectro)



Special motors for die clamping



YE3 -6pole energy-saving squirrel-cage type induction motor 11KW 1 set (Dongguan Global)



Special motors for pressure guiding



YE3- 4pole energy-saving squirrel-cage type induction motor 11KW 1 set (Dongguan Global)



Manipulator drive motor:



Servo motor 11KW 1 set (Inovance)



Cooling oil circulation motor:



Energy-saving squirrel cage induction motor 5.5KW 2 sets (Guang Yi)



Total installed power:

900KW





(7) Die base

Die base dimensions



Φ580 mm (diameter) x 550 mm (thickness)



Die base oil cylinder

Φ180XΦ100





(8) Dimensions of die platen discharge hole: Φ300X380 Quincunx



Main cylinder



Main cylinder plunger: Φ1120mm



Slave cylinder: Φ250mmXΦ160mm Quantity: 2pcs



Stroke: 1700mm



(10) Container

Oil cylinder:



Φ200mmXΦ120mm Quantity: 4 pcs





Stroke



500mm

Tight locking force



314T (adjustable)





Heating temperature setting



420°C

Heating mode



heated by electrical heated tube





Heating power



70Kw





(11) Shearing system



Shearing cylinder



Φ220mmXΦ180mm



Shear force



95T





(12) Cooling system:



Plate heat exchanger



25m² 2 sets





Working pressure



0.1—0.2MPa





(13) Hydraulic operating oil (self-prepared by customer)



Required amount



12000 L



Viscosity



N68# dust-free wear-resistant hydraulic oil







2. Structure





The extrusion press is composed of main cylinder components, die platen components and four heavy tie rods and four heavy prestressing pipe sleeves connecting these two parts, crosshead including extrusion stem and with sliding mechanism, container, billet loader, box-type die replacement device, shears including residual pressure knocking device and hydraulic units. The extrusion press is supported by the base in the welded steel structure.



(1) Prestressing equipment structure:

  • Four heavy steel bushings apply 1.2 times of the pre-tensioning stress of the design tension of the tie rod between the die platen and main cylinder rack.
  • The prestress design has the following advantages:
  • The main tie rod is tensioned by the prestress within the range of the whole length, enables the movement of the die platen to the minimum level under the pre-tensioning stress by the prestressing pipe sleeves and makes the alignment precision deviation of the equipment to the minimum level under the extrusion force.
  • After the die platen and main cylinder rack are tightly connected, the equipment structure becomes quite rigid and firm



(2) Main cylinder components:

  • The main cylinder and side cylinder are respectively equipped with the suitable single-acting main cylinder. The V-shaped seal ring is used for the main cylinder as sealing and guiding for the tin bronze bushing. The spacer shim is applied between the seal ring cylinder and flange for adjustment to ensure the sealing precision.
  • The back end of main cylinder is equipped with the prefill valve in mass flow to ensure that the working oil can freely flow into the main cylinder from the fuel tank during the fast shutdown of the primary plunger. Meanwhile, the main cylinder rack is equipped with four container cylinders.



(3) Die platen components and box-type die replacement device:

  • The die platen is cast by35# steel with high quality, and the central part of the die platen has the discharge hole in the dimensions and shape meeting the largest production requirements to make the extruded products pass through.
  • The hole is equipped with the die platen hard pad manufactured by hard steel to support the pressure applied in the die platen.
  • The extrusion press is equipped with two die boxes, which are driven by double acing hydraulic cylinder. Sliding inside the die platen will realize the fast replacement of the die pre-installed, effectively reduce the shutdown time of loading and unloading during the replacement of die. If necessary, the sliding formwork hydraulic cylinder can also be used as shearing.

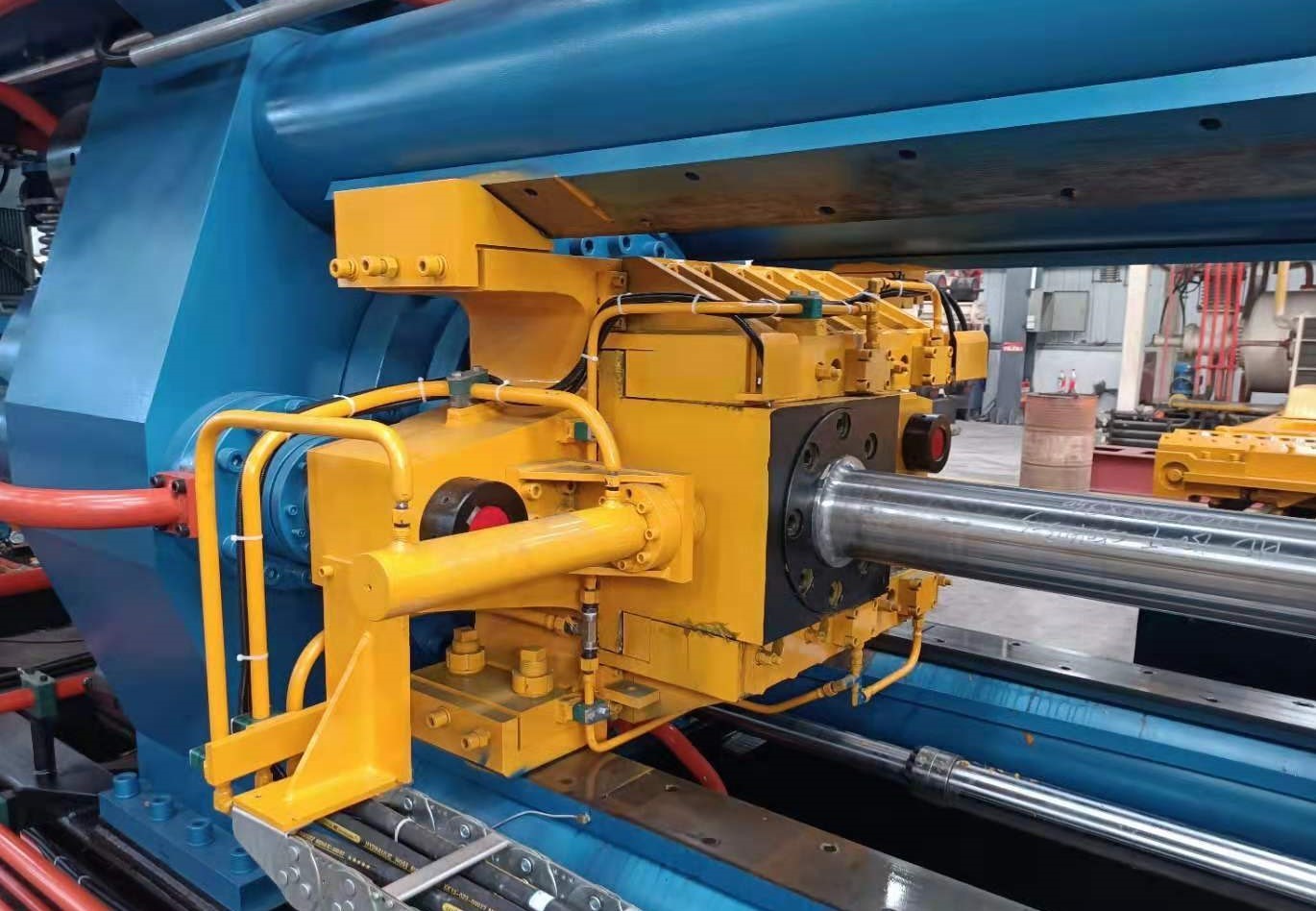

(4) Main crosshead and extrusion stem components

  • The material of main walking beam is 35# forged steel. It is installed at the front end of the primary plunger and uses the main tie rod sleeve as the supporting and guiding for the X guide rail. It is used to balance the partial gravity of the primary plunger and driven by the main cylinder and side cylinder.
  • The extrusion stem is firmly installed on the extrusion stem base at the front end of the crosshead by a clamping device with easy assembly and disassembly, and can moves horizontally from the left to the right to reserve space for the manipulator into it.

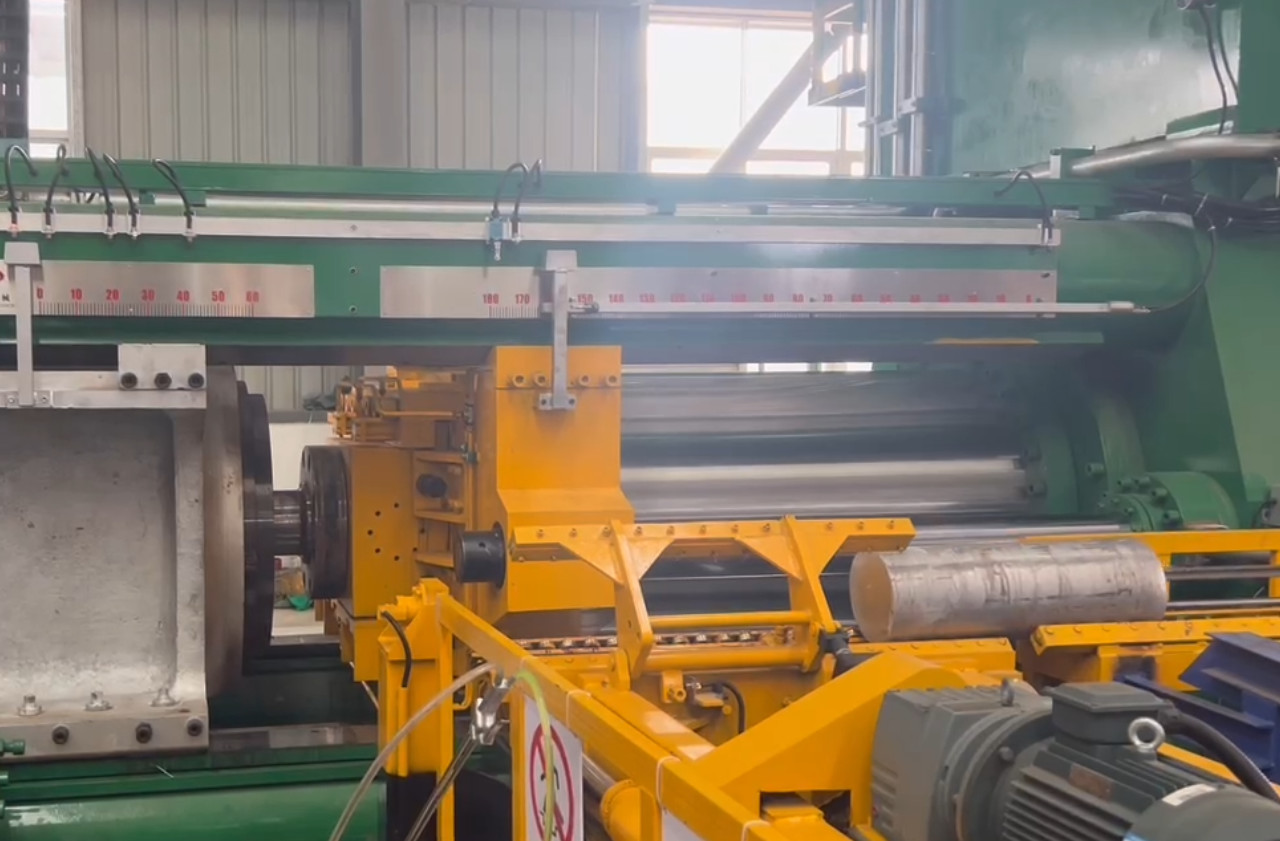

(5) Container components:

  • The container components contain the container, thermal insulation base, resistance heater, etc.
  • The thermal insulation base has X-shaped support and six points for guiding. The lower sliding spacer is guided within the whole stroke along the guide rail of the base in 2 directions, namely vertical and horizontal directions. The upper sliding spacer is guided by the wear plate contacting the upper prestressing pipe to make the thermal insulation base move stably.
  • The thermal insulation base is driven by four thermal insulation base cylinders on the main cylinder rack, and equipped with the adjustable positioning bolts, and plays a role in regulating the alignment of the container support.
  • The container is heated by the directly inserted resistance elements. These heating elements are distributed within the container out sleeve area and are automatically controlled in SSR to to keep the working temperature required for the container.
  • At the same time, a locking device is provided to ensure the alignment precision of extrusion stem and container.



(6) Main shears:

  • The vertical shears are installed inside the die platen and manufactured by #45 steel.
  • The guiding part of the shears is the rectangular design, which will adjust the gap between the shear blade and die. Besides, the compensation for the wear of guiding plate will be realized through the adjustment for the block gap in use, to make the swing of the shearing stem to the minimum level during the shearing and maintain the best shearing effect for a long time. The residual pressure knocking device is installed on the main shear components and plays a role in knocking the residual pressure out from the shears.
  • During the shearing, the die base is fixed by the locking device to ensure the shearing precision. Such locking device system is composed of longitudinal and transverse die assemblies.

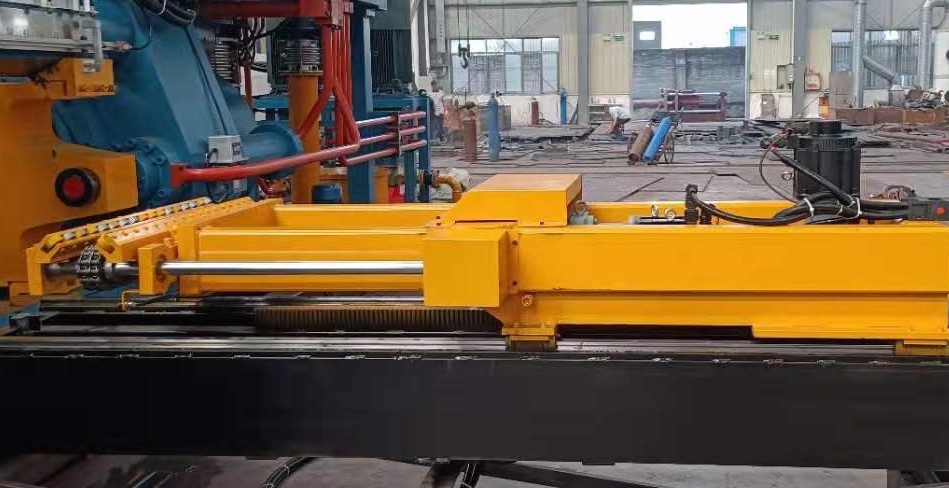

(7) Billet loader:

  • The billet loader is driven by servo motor and composed of gear wheels, gear racks, linear guide rail, encoder, etc. and moves in straight line under the fixation and support by the linear guide rail, to ensure that the aluminium ingot is fast and stably conveyed to the extrusion center line of the container with accurate positioning during the loading.
  • In case of the changes in the aluminum ingot diameter and dimensions, the center of aluminum ingot can be conveniently adjusted to the center of container through adjusting the support location of the movable pulley.
  • When the billet loader delivers the aluminium ingot to the center of the container, the aluminium ingot is pushed into the container by the extrusion stem.



(8) Hydraulic system:

  • The hydraulic power for the operation of extrusion press: the main pump is provided by a German Rexroth A4VSO series high precision variable spit variable electro-hydraulic proportional valve control plunger piston pump and the auxiliary pump is provided by a Ke Da A4VSO variable displacement plunger pump.
  • The oil throughput rate of the Primary oil-pressure pump is controlled by the Rexroth control system electronics, PLC central processor, main cylinder displacement sensor, etc.
  • The Primary oil-pressure pump and the secondary oil-pressure pump are installed vertically behind the main cylinder through the vertical motor and connect the bottom of the fuel tank through the large drift diameter seamless steel tube, anti-shock stainless steel soft connection, switch valve, etc., to ensure that the oil suction end of the Primary oil-pressure pump maintains the role of positive oil pressure for a long time and will not generate such phenomena as empty suction or cavitation during the oil absorption damaging the oil pump and enable the oil pump to generate small noise with more stable working pressure and long service life. The vertical installation can save space for the oil pump motor unit and make the equipment more compact and beautiful.
  • The logical valves like directional valve, pressure relief valve and safety valve are installed on the integrated oil-way valve station for use, so as to form the simple pipelines and prevent the oil leakage to the greatest extent. The logical valve is characterized by high pressure control, large flow and no impact.
  • The sealed pump of container is used to maintain the sealing pressure inside the locking cylinder of container before and during the extrusion.
  • All high-pressure pipelines are welded by seamless steel tubes and welding neck flanges, and the face-to-face flanges with O-rings are applied at the connected places or the deep thread connection is applied for connection. The incoming and outgoing oil pipes are installed with the anti-shock connections.
  • The suction valve (butterfly valve) of the main cylinder is installed outside the fuel tank, and can be closed during the maintenance. There is no necessity to empty the hydraulic oil inside the fuel tank.





(9) Servo-driven energy saving systems

  • Motor performance: servo motors and traditional frequency asynchronous motor comparison has the following advantages
  • High mechanical efficiency of the motor, servo motor in any load efficiency can reach 95%, while the asynchronous motor generally only in the rated power near the efficiency can reach 85%, in deviation from the rated power conditions efficiency will drop sharply.
  • No-load current is small, the servo motor no-load current is almost 0, while the no-load current of the stepper motor is generally 40% or more of the rated motor current.
  • Short acceleration time, servo motor full load acceleration to rated speed can reach 0.3 seconds at the fastest, the fastest acceleration time in the case of no-load stepper motor are more than 6 seconds, with load starting time is longer. And the rapid starting current of the stepper motor is particularly high, and the impact on the power grid is very large.

Energy saving principle:

  • Servo motor using its variable speed, torque, fast response time and other advantages, according to the actual requirements of the extruder press power conditions, through the control of motor speed and hydraulic oil pump to achieve the best working conditions of displacement and energy-saving control as required. Effectively reduce the power loss of the machine operation without work.
  • Combination of start and stop: The servo motor works quickly and powerfully, and the control is precise and stable. When there is no control signal for the equipment (e.g. die change, profile quality inspection and monitoring, stopping midway for minor repairs, etc.), the motor can automatically start and stop quickly. The energy-saving effect can be achieved without affecting the speed of the machine.

Energy-saving effect:

  • Under normal working conditions, the servo motor drive can save energy by about 15%-25% compared with the traditional asynchronous motor drive. If the production of carbide or special industrial profiles that require a slower extrusion speed, the energy saving effect will be even more obvious, even up to 40%, and the extrusion speed will be more stable, which will guarantee the quality of the products.

Drive servo motor cooling system:

  • The machine adopts our unique closed-loop liquid-cooled cooling system.
  • The system is composed of a special water-cooled servo motor, circulating water pump, professional refrigerator, special coolant and temperature control system. The advantages of this system: 1. to ensure that the temperature of the torque motor is guaranteed to be below 40 degrees, to avoid the demagnetization of the motor stator caused by the high working temperature of the motor, which will affect the service life of the motor and the energy-saving effect.
  • The use of special coolant to ensure better heat exchange, not easy to volatilize, long-term use will not produce scale or oil scale in the motor waterway leading to permanent damage to the motor.
  • The design effectively improves the traditional high-power servo motor heat dissipation problems and the traditional oil-cooled high-power servo motor for a long time after the use of oil scale affects the motor heat dissipation effect of the drawbacks. Greatly improve the service life of the motor and give full play to the energy-saving effect of the servo motor.







3. Operation

(1) Extrusion circulation



For the control of the extrusion press, the repeated full-automatic circulation or semi-continuous automatic circulation is allowed.



The extrusion press will realize the following circulating actions:



Circulating action based on the control mode selection



a. Manual



b. Single circulating automation (from the container forward)



c. Full automatic (continuous circulating)





(2) Extrusion speed

  • The extrusion speed can be regulated to the maximum speed value from the zero stepless speed by the pre-set device on the operation cabinet. In the full-automatic circulation, the extrusion speed can be controlled by program so as to determine the filling speed, extrusion speed and speed reduction ratio.
  • Constant speed and segment speed selection operation (constant speed control system: closed loop control consisting of speed sensor, pressure sensor, CNC processor and touch screen, etc., extrusion speed and filling pressure are conveniently preset and displayed from the operating screen).
  • Non-extrusion time: no more than 23 seconds at 50 Hz in no-load cycle operation.



(3) Temperature control of container

  • According to the signal detected by the thermocouple, the thyristor power controller, according to the preset temperature value, inputs the appropriate electrical energy into the heater to control the heating temperature of the container. This ensures a balanced temperature balance between the front and rear of the container, prevents over-temperature heating and extends the life of the container.



(4) Safety control

  • The extrusion press is controlled by the interlocking device to prevent the equipment damage possibly due to the mis-operation. For example, only after the billet loader is returned to the safe position, the primary plunger will run forwards.
  • The main oil cylinder, auxiliary oil cylinder and container cylinder are equipped with pressure sensors to detect the working pressure of each cylinder for safety protection, interlock control and over-pressure limit protection, which are displayed on the console screen.
  • The oil tank is equipped with an electric contact level meter and a thermometer to detect the level of the hydraulic oil and the oil temperature respectively, which will promptly alarm and stop when the liquid level exceeds the limit or the oil temperature exceeds the preset upper limit.
  • The operating cabinet is equipped with an emergency stop button to terminate the extruder at any time.





(5) Video monitoring

  • The extruder press is equipped with a real time monitoring camera, with two high temperature resistant cameras monitoring the position of the front beam outlet and the container cylinder inlet respectively, and displaying them on the monitor screen of the operator's console, making it easy for the start-up personnel to observe its working status.



















4.Detailed descriptions for all parts of extrusion press



1. Technical parameters



1.1 Mechanical equipment



1.1.1 Equipment base



Material type



Material Q235 welded steel



Technical Specification:



  • The equipment base is manufactured by the welded steel plate, and supports the whole structure from die platen to main cylinder rack.
  • Before the machining and after the welding, the whole structural members will be quenched.
  • The main cylinder rack is supported by the equipment base, and its amount of movement in the axial direction is limited by the fixed pins and tie rod.
  • The die platen is fixed and supported by the equipment base through sliding rack.
  • The die platen will move along with the flexible deformation of the tie rod on the sliding rack.





1.1.2 Main cylinder base and main cylinder



Material type



Material of main cylinder base





Forged steel (#35)





Material of main cylinder





Forged steel (#35)







Technical Specification

  • The main cylinder and side cylinder (two) are embedded in the main cylinder base. 35# forged steel is selected for the main cylinder base. During the casting, it has high mobility and therefore has the super high stability.
  • The main cylinder is made up of two or three parts, welded by special welding methods from 35# forged steel and then tempered.
  • The primary plunger fast forwards and its return stroke are driven by two side cylinders on the main cylinder base.
  • During the extrusion, the primary plunger and side cylinder work at the same time.





1.1.3 Primary plunger



Technical data

Diameter

Φ1120 mm

Stroke

1700mm

Working pressure

28Mpa

Material type

35# forged steel+2Cr13





Technical Specification

  • The main plunger is made of 35# forged steel as the base material and then finely polished by a special welding process on the surface with stainless steel overlay treatment, and the surface hardness may reach HRC46-48.
  • The main cylinder moves inside the main cylinder along the direction of extrusion through copper casing and returned by two side cylinders driving the primary plunger during the return stroke.
  • The main cylinder and copper casing are automatically lubricated by the hydraulic oil inside the main cylinder.
  • The speed and location of primary plunger are monitored and controlled by the absolute encoder.





1.1.4 Tie rod and prestressing pipe sleeve



Material type

Material



42 CrMo forged steel





Diameter



Φ350mm



Prestressing pipe sleeve material



45# carbon steel pipe sleeve





Technical Specification



As shown in the following figure, the tie rod manufactured by the forged steel is closely connected with the carbon steel pipe sleeves.



Four carbon steel pipe sleeves are prestressing by the tie rod between the die platen and main cylinder rack.



The prestress design has the following advantages:



  • The main tie rod is pre-stretched within the range of the whole length, and enables the movement of the die platen to the minimum level under the effect of the prestressing pipe sleeves, so that the alignment precision error of the equipment will reach the minimum level.
  • The die platen and main cylinder rack are tightly connected to make the structure of extrusion press rigid and firm.
  •  The prestressing equipment structure reduces the deformation of the die platen to the minimum level, and after the precise analysis, the deformation by force of the die on the die platen will be reduced to the minimum level.



1.1.5 Main crosshead



Material type



Material 35# forged steel



Technical Specification



  • The main crosshead is the 35# forged steel with high quality and is firmly placed on the primary plunger. The base of the extrusion stem drives the extrusion stem to move from the left to the right.
  • The crosshead is connected with the side cylinder.
  • The extrusion stem is firmly installed on the base at the front end of the crosshead by a clamping device with easy assembly and disassembly.
  • At the same time, a locking device is provided to ensure the extrusion stem and container in the same horizontal line. Within the whole stroke, the main crosshead is supported and guided on the smooth guiding base.
  • Two-way guide rail - vertically and horizontally - is equipped in the lower part of the main crosshead and adjusted by adjusting bolts.







The crosshead is equipped with the following parts:





  • The sliding and locking devices of the extrusion stem ensure the accurate support of extrusion stem
  • Clamping and connecting bolts of supporting extrusion stem



1.1.6 Die platen



Material: 35# forged steel



Technical Specification



  • The die platen is manufactured by the high-quality35# forged steel, and aims at reducing the pressed conditions, deformation and curvature of the die platen and die after the application of extrusion force to the minimum level.
  • The holes with suitable dimensions and shapes are determined in the center of die platen to make the extruded products through.
  • The die box is driven by double acing hydraulic cylinder and slides inside the die platen.
  • If necessary, the sliding formwork hydraulic cylinder can be used for shearing.







1.1.7 Double die base replacement device



Material type Die base 45# forged steel



Technical Specification



  • The sliding formwork hydraulic cylinder is installed inside the die platen and operated by double acting hydraulic cylinder and can be used as auxiliary shears.
  • The vertical adjustment for the die box will be realized by placing the spacer shim outside the equipment, and the horizontal adjustment will be realized by setting the stopper.
  • The die replacement device is the two-position box type, and the die replacement location is one side of operation of the extrusion press die platen. It will fast replace the die and facilitate the operation and maintenance around the die platen of extrusion press.









1.1.12 Billet loader



Technical data



Type





Linear moving type





Drive mode





Driven by servo motor





Structure





Welded steel







Technical Specification

  • The billet loader is driven by motor and moves in straight line under the support of roller, to ensure that the aluminum ingot is supported to the center of extruder press during the loading.
  • In case of changes in the aluminum ingot dimensions, the aluminum ingot can easily be loaded into the centre of the extruder press by the replacement for the lining of roller support


















1.2 Extrusion tools



The extrusion tools of the extrusion press include the following elements:



1.2.1 Container



Technical data









Inner hole diameter



Φ264mm



Length



1350 mm





Materia



Liner of container





Forged steel (H13 Alloy tool steel)





Out sleeve of container





Forged steel (5CrMnMo Alloy tool steel)







Technical Specification

  • The container is located inside the thermal insulation base and composed of two parts: liner and out sleeve of the container
  • During the extrusion, these two parts of the container will shrink to bear the thermal pressure and thermal tension.
  • Within the contact region at one side of the die platen, the lining stretches to about 20 mm from the liner surface of container, to ensure the correct sealing between the die and container during the extrusion, so as to avoid the metal overflow.
  • There is no cotter way in the middle of outside surface of the container liner to prevent the concentration of stress and heat and prolong its service life.
  • Only the two-end surface of the container out sleeve has the cotter way.





1.2.2 Extrusion stem and fixed extrusion pad



Technical data

Extrusion stem outer diameter Φ252mm

Material



Extrusion stem





Forged steel (H13 Alloy tool steel)





Connecting rod





Forged steel (H13 Alloy tool steel)





Fixed extrusion pad



Forged steel (H13 Alloy tool steel)







Technical Specification

  • The extrusion stem transfers the extrusion force to the aluminium ingot by the fixed extrusion pad:
  • The extrusion stem components include extrusion stem and connecting rod. The connecting rod and extrusion stem are tightly connected.
  • The fixed extrusion pad is screwed into one end of the connecting rod, and the rest part is tightly connected with the head of extrusion stem.
  • Another tail end of the connecting rod is tapered to maintain the centrality.





1.2.3 Oil pump motor unit



The Primary oil-pressure pump and the secondary oil-pressure pump are installed behind the main cylinder and connect the bottom of the fuel tank through the large drift diameter seamless steel tube, anti-shock stainless steel soft connection, switch valve, etc., to ensure that the oil suction end of the primary oil pump maintains the role of positive oil pressure for a long time and will not generate such phenomena as empty suction or cavitation during the oil absorption damaging the oil pump and enable the oil pump to generate small noise with more stable working pressure and long service life.











2. Overall dimensions of extrusion press:16000mm×7000mm×6000mm



Weight: extrusion press weight is about 260 t





Extrusion press main parts material





Name



Material

1



Front plate





35#Casting steel



2



Cylinder base





35#Casting steel



3



Main cylinder plunger





35# forged steel (integral forging)



4



Plunger





35# forged steel+2Cr13 (surface hardness HRC45-48º)



5



Tie rod





42CrMo forged steel (quenched and tempered)



6



Prestressing pipe sleeve





45# seamless pipe



7



Crosshead





35#Casting steel



8



Container housing





35#Casting steel



9



Out sleeve of container





5CrMnMo (hardness HRC38-40º)



10



Liner of container





H13 high temperature resistant steel (hardness HRC48-51º)



11



Extrusion stem





H13 high temperature resistant steel (hardness HRC48-51º)



12



Extrusion head





H13 high temperature resistant steel (hardness HRC48-51º)



13



Die base





45# forged steel



14



Extrusion hard pad





H13 high temperature resistant steel (hardness HRC48-51º)



15

Front plate hard pad



H13 high temperature resistant steel (hardness HRC48-51º)







Extrusion press main parts description



Hydraulic components



Name



Brand



Quantity



Remark



Main plunger





Rexroth





4 sets



Variable plunger pump





Auxiliary oil pump





Ke Da

Rexroth



4sets

1sets



Variable plunger pump

Variable plunger pump





ndependent charge oil pump for the middle plate





Lihao



1set



Fixed displacement plunger pumps



Cooling oil circulation oil pump





Guangyi



2 sets



Pipeline Pumps



Hydraulic solenoid valves





Rexroth





1 batch





One-way valve





Taiwan Kuoka





1 batch





Logic valve





Rexroth





1 batch





Electrical components



Main oil pump motor





Hilectro motor





4 sets



Liquid-cooled servo-efficient motors





Auxiliary oil pump motor





Hilectro motor





1 sets



Liquid-cooled servo-efficient motors





Charge oil pump motor





Dongguan Global





1set



YE3 energy saving motor





Translating Manipulator Motor





Inovance





1set



Air-cooled servo motors





Translating Manipulator Motor Driver





Inovance



1set





PLC





Siemens





1 set





Touch Screen





Flexem





1 set





Air switch





Mitsubishi





1 batch







AC contactor





Schneider





1 batch







Intermediate relay





Schneider





1 batch







Push Button Switch





Schneider





1 batch







Proximity switch





OMRON





1 batch







Displacement sensor





MTS





1 set







Pressure Sensor





WIKA, Germany





1 batch







Seals



V-ring of Main cylinder





Garnor





1 set







Auxiliary cylinder sealing ring





Garnor





1 batch







Other components



Hand linear guide





Taiwan Shangyin





1 set



Translating machines





O-ring wire





Garnor Guangdong cable





1 batch





Oil cylinder barrel





Rolling cylinder barrel





1 batch





Recommended Products
Get in touch with us
Tel : +86-18675161888
Fax : 86-757-8109-8395
Characters Remaining(20/3000)
