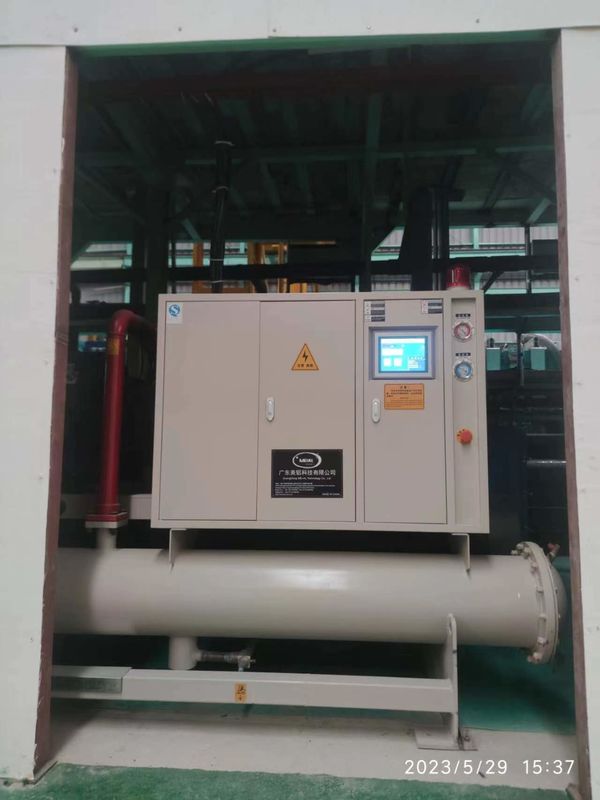

Dry Water Cooled Screw Chiller Oxidation Dedicated Direct Cooling

1set
MOQ
RMB276,600/set
Price
Dry Water Cooled Screw Chiller Oxidation Dedicated Direct Cooling
Features Gallery Product Description Request A Quote
Features
Specifications
Comp Current: 156.6 A
Cop: 4.45 W/w
Refrigerant: R22
Power Supply: 3PH—380V—50HZ
Input Power×1000kal/h: 76.1 Kw
Heat Reclaimed Volume×1000kal/h: 101.6 Kw
Rated Cooling Capacity×1000kal/h: 338.6 Kw
Froxen Medium: 15% -25% Sulfuric Acid Tank Solution
Number Of Refrigeration Circuit: 1
High Light:

Dry Water Cooled Screw Chiller

,

Water Cooled Screw Chiller Oxidation

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: 390 SRK
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

Oxidation dedicated direct cooling dry water-cooled screw chiller (heat recovery)



LSJ—Model 330 SRK 350 SRK 390 SRK 460 SRK 530 SRK 580 SRK
Refrigerant R22 R407C R22 R407C R22 R407C R22 R407C R22 R407C R22 R407C



Rated cooling capacity

×1000kal/h 282.9 270.7 301.4 296.1 338.6 319.3 397.0 377.8 458.8 441.4 500.2 470.0
kw 329.0 314.9 350.6 344.3 393.8 371.4 461.7 439.4 533.6 513.3 581.7 546.6



Heat reclaimed volume

×1000kal/h 84.9 81.2 90.4 88.8 101.6 95.8 119.1 113.4 137.6 132.4 150.1 141.0
kw 98.7 94.5 105.2 103.3 118.1 111.4 138.5 131.8 160.1 154.0 174.5 164.0



Input power

×1000kal/h 61.9 60.7 67.6 66.4 76.1 72.7 86.7 80.1 98.9 99.0 107.6 104.9
kw 72.0 70.6 78.6 77.2 88.5 84.6 100.8 93.1 115.0 115.1 125.1 122.0
Comp current A 127.4 125.0 139.1 136.6 156.6 149.7 178.4 164.8 203.6 203.7 221.4 215.9
cop w/w 4.57 4.46 4.46 4.46 4.45 4.39 4.58 4.72 4.64 4.46 4.65 4.48
Froxen medium Sulphuric acid bath
Power supply 3PH—380V—50HZ



Protection device

Water pump interlock protectionacid pump interlock protection,leakage protection,overload protection,Phase reversion protection phase lack protection overload current protection discharge air timperature protection
Number of refrigeration circuit 1 1 1 1 1 1 1 1 1 1 1 1
Capacity control (%) 0,25,50,75,100
Refrigerant charge (kg) 21 28 35 45 49 58
Condenser Shell and tube type
Water side max pressure (MPa) 1.0
Dia.of pipe to condenser (inch) 5 5 5 5 6 6
Cooling water flow (m3/h) 73.4 70.5 78.5 77.1 88.2 83.4 102.9 97.4 118.7 115.0 129.3 122.3
Condenser water pressure drop(kPa) 60.0 61.0 60.0 62.0 61.0 61.00
Evaporator Efficient anti-corrosin shell and tube type
Water side max pressure (MPa) 1.0
Dia .of pipe to evaporator (inch ) 8 8 8 8 8 10
Chilled water flow (m3/h) 188.6 180.5 200.9 197.4 225.8 212.9 264.6 251.9 305.9 294.3 333.5 313.3
Evaporator water pressure drop(KPa 61.0 61.0 61.0 62.0 67.0 65.00
Liquid in & outlet timperature Inlet lipuid19.5℃,outlet lipuid 18℃
Heat recovery unit Shell and tube type
Water side max pressure (MPa) 1.0
Dia.of pipe to heat recoverer 2 2 2 1/2 2 1/2 2 1/2 2 1/2
Reclaimed water flow (m3/h) 17.0 16.2 18.1 17.8 20.3 19.2 23.8 22.7 27.5 26.5 30.0 28.2
