Air-Cooled Direct Cooling Freezer And Cop 3.8 129550Kcal/h

1set
MOQ
RMB153,736/set
Price
Air-Cooled Direct Cooling Freezer And Cop 3.8 129550Kcal/h
Features Gallery Product Description Request A Quote
Features
Specifications
Cooling Capacity: 150.64 KW
Coolingcapacity: 129550Kcal/h
COP: 3.8
Input Power: 3PH-380V/50HZ
Refrigerant: R22
Matching Wire: 35mm²
High Light:

Air-Cooled Direct Cooling Freezer

,

Direct Cooling Freezer 129550Kcal/h

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: FXJ-50P
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

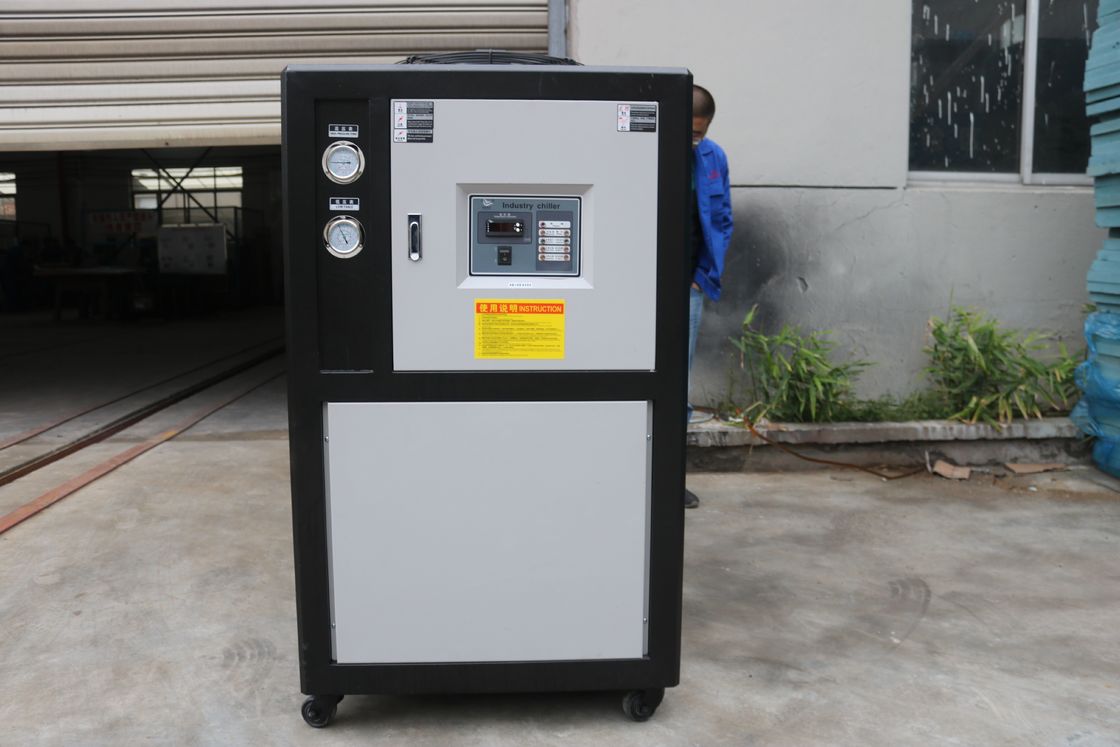

Air-cooled direct cooling freezer



Model FXJ-3P FXJ-5P FXJ-8P FXJ-10P FXJ-12P FXJ-16P FXJ-20P FXJ-25P FXJ-30P FXJ-40P FXJ-50P
  KW 10.9 15.17 25.6 31.93 37.66 51.2 63.86 75.32 95.79 127.72 150.64
Cooling Kcal/h 9374 13046 22016 27460 32387 44032 54920 64775 82379 109839 129550
capacity
COP 3.6 3.68 3.77 3.88 3.8 3.77 3.88 3.8 3.88 3.88 3.8
Input Power 3PH-380V/50HZ
  Mode full-hermetic scroll type compressor
quantity Set Set Set
Input power(KW) 2.8 4.1 6.8 8.2 9.9 13.6 16.4 19.8 24.6 32.8 39.6
Compressor
Rated load current(A) 5.3 7.3 11.7 14.2 16.8 23.4 28.4 33.6 42.6 56.8 67.2
Matching wire(mm²) 2.5 2.5 4 6 6 10 10 16 25 25 35
Way to unload(%)   0,100%
Refrigerant R22
  Mode Hjgh efficient esternal inside screw tube shinizu fin style
Cooling fan power(KW) 0.18 0.45 0.52 0.9 0.9 1.56 1.6 2.34 2.4 3.12 3.5
Condenser
Cooling mode Air cooling
  Mode internal screwed shell and tube type
Freezing liquid flow(m³/h) 1.87 2.6 4.4 5.5 6.5 8.8 11 13 16.5 22 26
Evaporator   Freezing inlet liquid12°C,Freezing outlet liquid7°C
  Freezing liquid in&outlet temperature
Pump power(KW) 0.37 0.37 0.75 0.75 0.75 1.5 1.5 2.2 2.2 3.7 3.7
Throttle methods external balance expansion valve/capilary
Sfety protection
water pump interlock protection,leakage protection,overpressure and snti-phase protection,
refrigerant abnormality protection
compressor over temperature protection,and lack of water protection,etc
    DN25 DN40 DN40 DN40 DN40 DN50 DN50 DN40 DN60 DN80 DN80
Piping connection Liquid in&outlet diameter
Weight(KG) 216 265 300 316 446 480 510 595 613 724 835
  L 1000 1200 1800 1800 1800 2100 2100 2800 2800 2170 2450
Overall size W 700 750 820 820 820 1050 1050 1050 1050 1650 1650
  H 1200 1300 1400 1400 1400 1540 1540 1540 1540 1750 1750
