Tape Sticking Machine
Design Parameter
|
Device type: Aluminum Tape sticking machine |
Product Name: Complex type all around the paster machine (discharge all-wheel drive) |
|
|
Specific specifications |

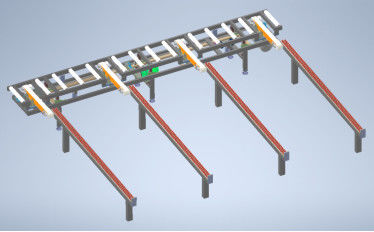

1, The machine installation dimensions (length x width x height ㎜) : 1850 * 860 * 1420. 2, The roller size: 100 x 250 ㎜ ￠. 3, Apply to power: single-phase 220 v AC 50 hz; The motor power: 1.5 KW. 4, Film feeding speed: 0 ~ 280 m/min. 5, Sticker range: the up and down or so sticker all around; Maximum stick shaped specifications: 200 ㎜ wide x 150 ㎜. 6, Inward and outward each supporting a 4 meters long galvanized roller conveyor frame 7, Feed direction: right into the left out (be) according to customer's request.
Features: all of the following five roller rotating machine. |
|
