50Hz Anodizing Line Accessories Fluoroplastic Centrifugal Pump

1set
MOQ
RMB 25,200.00 /set
Price
50Hz Anodizing Line Accessories  Fluoroplastic Centrifugal Pump
Features Gallery Product Description Request A Quote
Features
Specifications
Protection Grade: IP55
Insulation Grade: F
Standard Voltage: 50Hz
Flow Rate: 50m3/h
Lift: 20m
Speed: 2900rpm
High Light:

50Hz Anodizing Line Accessories

,

Anodizing Line Accessories PFA

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-AL
Model Number: 150-15-11 11KW-4P
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 80-90days
Payment Terms: T/T
Supply Ability: 1set/two month
Product Description

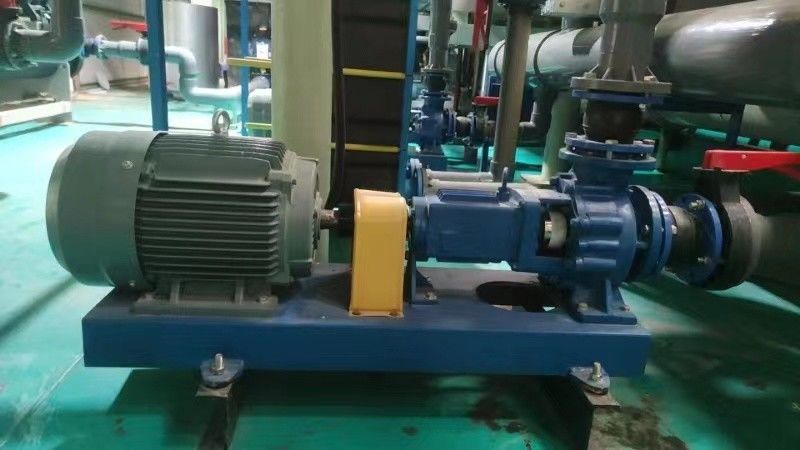

50Hz Anodizing Line Accessories Fluoroplastic Centrifugal Pump



Product classification: Fluoroplastics series

  1. Contact Parts: The parts of the pump cover and impeller that come into contact with the medium are sintered and pressed into shape using metal inserts wrapped with fluoroplastics such as FPE, PVDF, and F46. This construction ensures corrosion resistance and wear resistance, making the pump suitable for handling various corrosive substances.
  2. External Bellows Mechanical Seals: The pump is equipped with external bellows mechanical seals. These seals provide a reliable and leak-free sealing solution, preventing the medium from leaking into the surrounding environment.
  3. Grinding Material Options: The pump offers options for grinding material, including aluminum oxide versus tetrafluoro, silicon carbide versus tetrafluoro, and hard alloy versus hard alloy. Users can choose the appropriate grinding surface based on their specific requirements, ensuring optimal performance and longevity.
  4. Corrosion Resistance: The pump is designed to transport various corrosive substances such as hydrochloric acid, sulfuric acid, hydrofluoric acid, aqua regia, strong oxidants, and organic solvents. It exhibits excellent corrosion resistance, allowing for reliable and safe handling of these substances.



Core accessories

1. Imported PFA material impeller

Imported PFA (fluoroplastic) high-temperature fired closed impeller integrated molding

External use of high-temperature molding technology

Internally wrapped stainless steel spindle

Can transport organic solutions of any concentration

2. Silicon carbide mechanical seal

Silicon carbide sealing ring is the most widely used material in mechanical seals

Has strong chemical corrosion resistance

Has high mechanical strength

Wear resistance and high temperature resistance

3. Imported durable bearings

Imported bearings have longer service life and higher accuracy

Less noise compared to domestic bearings

Higher limit speed and less prone to overheating

High load resistance and comprehensive cost-effectiveness

Genuine products from the original factory, quality assurance
