700T/Month Industrial Powder Coating Line Equipment 380V - 415V

700T/month Powder Coating Production Line

Major Equipment  Parameter

1, Drying Oven:

(1) Technical note of moisture drying oven:

A. Moisture drying oven consists of chamber, return air piping, bottom framework, inner framework, simple fuel gas heating system and automatic temperature control system, etc.

B. Top opening (translational) oven is used for the oven, and the hot wind is delivered from bottom to the top. Air supply duct is set inside the oven.

C. Overtemperature protection switch is set to protect the combustion system. When there are the problems of overtemperature and draught fan failure, heating system can be switched off timely and sound-light alarm will be sent out.

D. Centrifugal fan, water-cooling bearings are used for circulating fan. Space is saved for maintenance in the installation site.

E. Stainless internal wall board is used in the combustion chamber, and the insulating layer is 200mm rock wool.

(2) Technical parameters of hot wind circulation oven:

(3) Materials utilization of moisture drying oven:

(4)Outsourcing of drying tunnel equipments:

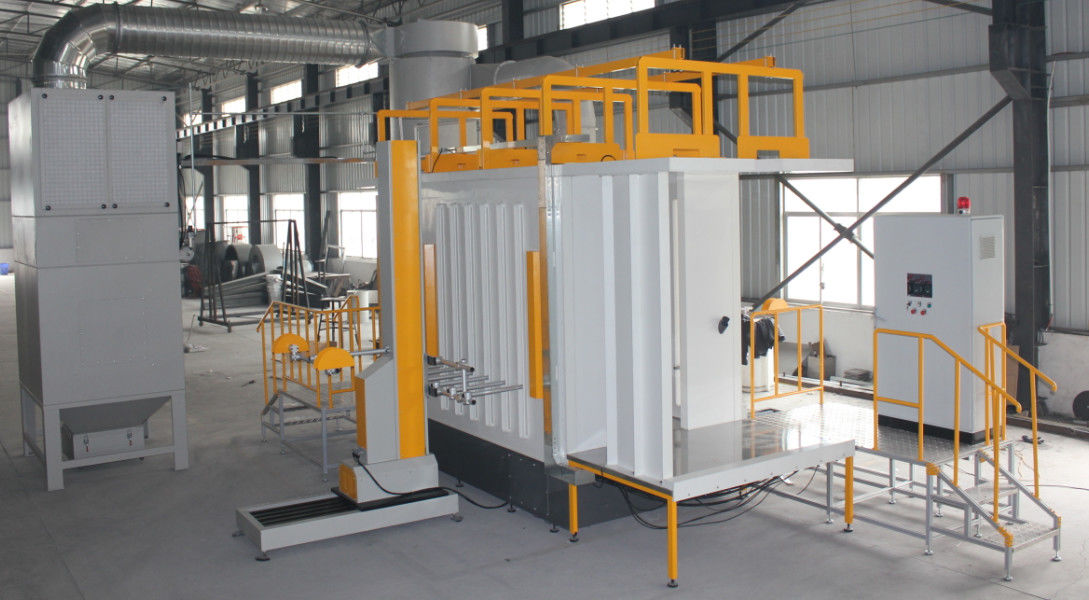

2, Spray chamber and recovery system:

(1) Overall scheme description:

External dimension of spray chamber: L7000mm×W1800mm×H3250mm

Structural feature: rounding top and U-bottom structural design that are used for spray chamber can make sure that the air will flow smoothly and will not cause interference in air flow, by which it will reach a high spraying rate.

1.2, Design parameters and advantage description of overall scheme

a). High-efficiency two-stage cyclone recovery system is used for the improved “HAPPY-12”, and a rotary filter element is used for recovery.

b). Stainless steel plate is used for the spray chamber with 10 automatic gun openings (5 on each side). Besides, transverse-distributed way is used for the spray guns, and a piece of gun can be distributed in each groove. Meanwhile, two manual spraying positions are configured in the system for the complicated workpiece to make up by manual.

c). Top technologies are introduced from overseas for the whirly recovery, and the recovery rate can be over 95%. The equipment has a vibrating screen system to make sure that the powder can be recycled normally without any pollution. The appearance of the whole structure is nice, elegant, sturdy and durable.

d). The improved “HAPPY-08” spray chamber has the features of being low in five aspects, which are high in three aspects and fast in two aspects (low powder consumption, low noise, low energy consumption, low powder wasted and low maintenance rate; high spraying rate, high powder recovery rate and high degree of automation; fast purification and fast color changing).

e). The whole set of spray chamber can be divided into seven major parts, which are the body of spray chamber, cyclone automatic recovery device, rotary filter element self-cleaning filtration system, automatic recovery system, powder supply bucket, general electric control system and intelligent elevator.

f). Manual plate turnover device is used for the bottom air flue of spray chamber, where world-advanced mushroom-head cleaning system is configured so that the powder can be recycled on time, and blocking powder that is caused because of being stored for too long can be reduced.

g). Human-computer interface (Chinese display) which is a simple operating system is used for the whole set of chamber that it makes human and machine combined the best, by which the intelligence degree of operation is improved.

(2) Basic configuration of spray chamber:

3,Powder spray elevator: 2 sets

PLC microcomputer control system is used for this elevator, drive motor runs under the control of frequency converter. Signals which are measured through the encoder installed on reducer shaft are sent back to PLC, and signals are sent to frequency converter from PLC when the stroke of elevator is set by manual so that the elevator can have reciprocating motion frequently in an effective coverage. Since the principle of optics is used for rotary encoder, the stroke of elevator can be more accurate and running more stable.

Device configurations below:

4, Curing drying tunnel: 60M*1M*3.95M (length X width X height)

Curing drying tunnel is a ring drying tunnel that is heated directly by fuel gas. It has a set of fuel gas heating system and independent hot air circulating design.

1) Structural composition and features of curing drying tunnel:

(1) Drying tunnel consists of the main part of drying tunnel, hot air circulating system and exhaust emission system. A reasonable hot wind flow direction can be formed in drying tunnel with a reasonable layout. Besides, hot air overflowing to the workshop can also be avoided effectively, by which not only energy sources can be saved, but also environment being protected. Exhaust emission system can discharge the exhaust gas from the furnace.

   (2) Tower structure is used for the drying tunnel.

(3) The blowing-in layout of hot air circulating system is up-return down-supply interconversion. Air supply outlet is set below the workpiece, and return duct is set upside the drying tunnel. A reasonable hot wind flow direction can be formed in the drying tunnel with a reasonable layout of air supply outlet and return air inlet under natural lifting power of hot air. Thus, an effect of well-distributed heating for the workpiece, good economical efficiency for air supply and reasonable air distribution can be reached. Air supply outlet is flexible and adjustable. By means of adjusting the blast capacity of air supply outlet, the air output can be changed in each stage, thereby the temperature is well-distributed in the drying tunnel. The wind adjusting plate of air supply groove is made from galvanized sheet.

(4) In order to guarantee the surface quality if workpiece, hot wind filter system is set specially. A thermal cycle air filter is set in air supply outlet that the dust produced in the cyclic process can be filtered. The filter layer is a 5-layer stainless filter net, the thickness of filter is 30mm and the initial resistance is less than 200pa. air filter is dismountable to have the operations of maintenance and ash removal. Therefore, the quality of air supply and coating can be guaranteed.

   (5) In order to reduce heat output in the outlet of drying tunnel, a set of heat insulation area is set in the outlet of drying outlet to reduce energy        consumption and protect the working environment.

2) Curing oven technical parameters:

3) Materials utilization of moisture drying oven:

4) Outsourcing of drying tunnel equipments

5, Suspension conveying system

    (1) Conveyor is installed with emergency shut-down device in the corresponding operating position for the convenience of operating production      running to ensure safety.

(2) Conveyor line driving device is used for planet cycloidal pin gear speed reducer and electric motor. The chain is driven by driving chain, and driving device has the functions of phase loss, overload and shirt circuit so as to make the running of conveyor line safer and more reliable.

(3) The type of control is frequency control, which can meet the requirements of different manufacturing techniques and speeds.

    (4) The operation of conveyor is stable, and there is not the problem of crawl or block.

    (5) The rail surface of trolley conveyor is painted, and the colors are decided according to the requirements of clients.

    (6) Valid parameters of conveyor

6. Electrical control system

1) All the circumscribed control circuits are routed by metal sleeves or flame retardant plastic sleeves. The circuits have fastening structures to reach safety norms in utilizing electric power.

          2) The control panel is under centralized control, and will be installed in the most appropriate position considered by Party A for the                         convenience of operation.

  3) Digital display automatic controller is used for the temperature control in heating positions. Automatic control will be conducted                    accurately when displaying all the hot-spot temperatures.

          4) Human-computer interface and PLC programming are used for the panel to have centralized control. The measures of instruments                      must  be accurate, and the measurement error must be in the range of national standard.

          5) The design, type selection, manufacturing and installation of electrical equipments must live up to the national related standards.

          6) Wires should have a firm touch with the terminals of electric appliance.

          7) Wires should be marked with distinct wire sizes in the positions of electrical appliance terminals and line banks. Besides, it should not                be easy to be worn away or fading.

          8) Combustion safety protection system is set, that’s to say, the furnace will be shut down automatically when the temperature is too high,              controlled by sound-light alarm and interlocking electric devices.

      9) High-quality elements produced by national appointed manufacturers are used for the control panel.

    10) Spraying plastic cabinet is used for the control cabinet.

    11) Power configuration form: 380V, 3-phase, 5-wire, AC

    12) In the process of production, the device should have the corresponding interlocking protection and necessary alarm indication function             under the circumstance below:

A．Drying tunnel overtemperature control

B．Fuel gas heat exchange firing

C．Emergency shut down

D．Heat exchanger overtemperature alarm

System control function:

Materials for the main electronic control system
