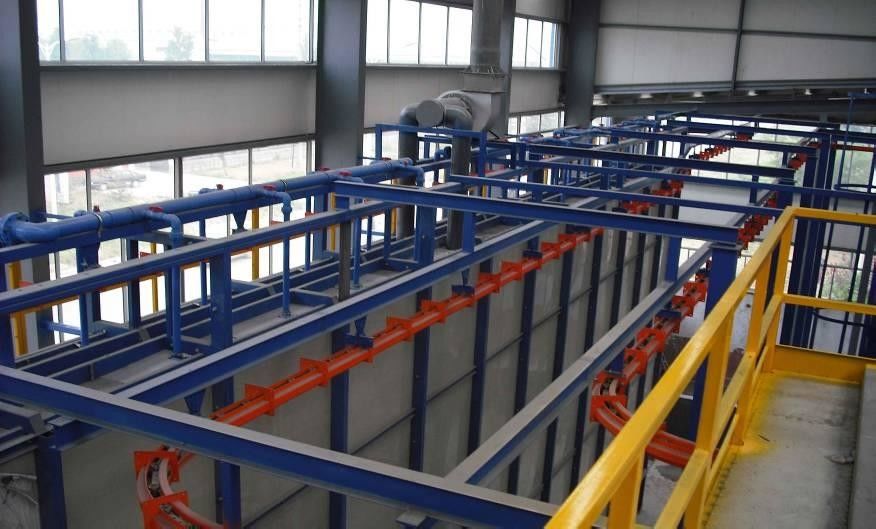

Horizontal Automatic Powder Coating Line Equipment 380V Spraying

1set
MOQ
RMB1300000-1800000/set
Price
Horizontal Automatic Powder Coating Line Equipment 380V Spraying
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 600T/month
Mode: Horizontal
Operation Mode: Continuous Spraying
Film Thickness: 60-80µm
Max Profile Length: 6000*300*1800
Spraying Way: Prior To Automatic Spraying, Secondary To Manual Spraying
Working Speed: 2m/min
Voltage: 380V~415v
Highlight:

Automatic Powder Coating Line

,

Horizontal Powder Coating Line

,

Powder Coating Equipment 380V

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-AL
Model Number: PCPL-600T
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 80-90days
Payment Terms: T/T
Supply Ability: 1set/two month
Product Description

600T/month Powder Coating Production Line





Major Equipment  Parameter

1, Drying Oven:

(1) Technical note of moisture drying oven:

A. Moisture drying oven consists of chamber, return air piping, bottom framework, inner framework, simple fuel gas heating system and automatic temperature control system, etc.



B. Top opening (translational) oven is used for the oven, and the hot wind is delivered from bottom to the top. Air supply duct is set inside the oven.



C. Overtemperature protection switch is set to protect the combustion system. When there are the problems of overtemperature and draught fan failure, heating system can be switched off timely and sound-light alarm will be sent out.



D. Centrifugal fan, water-cooling bearings are used for circulating fan. Space is saved for maintenance in the installation site.



E. Stainless internal wall board is used in the combustion chamber, and the insulating layer is 200mm rock wool.



(2) Technical parameters of hot wind circulation oven:

No

Item

Specification

Note

1

Type

Hot wind circulating top-opening (translational) oven


2



Effective size

6500´2200´2200mm(Length X width X height)

Actual height is adjusted according to pretreatment pool

3

Processing temperature

80~120℃ (adjustable)


4

Heating up time

It reaches the setting temperature in 10-15min at a room temperature of 15℃


5

Drying time

About 300-40min required

It depends on workpiece

6

Heating method

Natural gas is used to heat directly with hot wind circulating convectively





(3) Materials utilization of moisture drying oven:

Name

details

Texture

Oven chamber

Internal wall

Galvanized sheet:δ1.2mm

External wall

Cold-rolled sheet: δ1.2mm

Framework

Angle iron 25×25

Rock wool thermal insulation material

δ100mm 80Kg/m3 rock wool

Underframe



10# U-steel

Circulating air duct (built-in)

Return duct

Galvanized sheet: δ1.2mm





Furnace door

Framework

Profile steel and A3 rolled plate

Top panel

Cold-rolled sheet δ1.2mm

Bottom panel

Galvanized sheet δ1.2mm

Thermal insulation and thermal insulation layer

δ100mm, 80Kg/m3 rock wool



Heating chamber

Internal wall

Stainless steel plate: δ1.5mm

External wall

Cold-rolled sheet δ1.2mm

Thermal insulation material

δ200mm 80Kg/m3 rock wool

Framework

Angle iron 25×25

(4) Outsourcing of drying tunnel equipments:

Name

Moisture drying oven



Combustion engine

Brand

BENTONE

Type

BG300



Combustion power

200,000 kcal/h

Fire adjusting form

Single period of fire

Power consumption of combustion engine

About 0.18W

Rate of flow

6~19 m3/h

Maximum pressure

360 millibar

Working pressure

20 millibar

Quantity

1 set



Hot wind circulating fan

Brand

Foshan Yingheng Ventilator

Power of draught fan

P=7.5KW×1 set

Blast volume

8288~16576 m3/h

Wind pressure

1116~1760 Pa

Temperature controller

PID smart automatic calculation controller

No. of temperature controller

E5AZ

Accuracy of instrument

0.1℃

Type of output control

Relay contact output AC250V.3A

Type of input control

Thermocouple

Alarm output function

Alarm output in two positions



2, Spray chamber and recovery system:

(1) Overall scheme description:



External dimension of spray chamber: L7000mm×W1800mm×H3250mm



Structural feature: rounding top and U-bottom structural design that are used for spray chamber can make sure that the air will flow smoothly and will not cause interference in air flow, by which it will reach a high spraying rate.



1.2, Design parameters and advantage description of overall scheme

a). High-efficiency two-stage cyclone recovery system is used for the improved “HAPPY-12”, and a rotary filter element is used for recovery.

b). Stainless steel plate is used for the spray chamber with 10 automatic gun openings (5 on each side). Besides, transverse-distributed way is used for the spray guns, and a piece of gun can be distributed in each groove. Meanwhile, two manual spraying positions are configured in the system for the complicated workpiece to make up by manual.

c). Top technologies are introduced from overseas for the whirly recovery, and the recovery rate can be over 95%. The equipment has a vibrating screen system to make sure that the powder can be recycled normally without any pollution. The appearance of the whole structure is nice, elegant, sturdy and durable.

d). The improved “HAPPY-08” spray chamber has the features of being low in five aspects, which are high in three aspects and fast in two aspects (low powder consumption, low noise, low energy consumption, low powder wasted and low maintenance rate; high spraying rate, high powder recovery rate and high degree of automation; fast purification and fast color changing).

e). The whole set of spray chamber can be divided into seven major parts, which are the body of spray chamber, cyclone automatic recovery device, rotary filter element self-cleaning filtration system, automatic recovery system, powder supply bucket, general electric control system and intelligent elevator.

f). Manual plate turnover device is used for the bottom air flue of spray chamber, where world-advanced mushroom-head cleaning system is configured so that the powder can be recycled on time, and blocking powder that is caused because of being stored for too long can be reduced.

g). Human-computer interface (Chinese display) which is a simple operating system is used for the whole set of chamber that it makes human and machine combined the best, by which the intelligence degree of operation is improved.



(2) Basic configuration of spray chamber:



Part I Spray chamber

Size of spray chamber

L7000mm×W1800mm×H3250mm

Mode of operation

Automatic and manal spray

Spray chamber

Improved HAPPY-08

Side plates of spray chamber

δ 1.5mm stainless steel plate

Top board of spray chamber

δ 1.5mm stainless steel plate

Bottom board of spray chamber

δ2.0mm stainless steel plate

Maximum suspension range of workpiece inlet and outlet of spray chamber

1800 x 300 mm (HxW)

Opening size of inlet and outlet of spray chamber

2000 x 500 mm (HxW)

Length of spray chamber (total length)

7000 mm

Width of spray chamber

1800 mm

Automatic positions of spray chamber

2×5, 10 parts in total

Manual positions of spray chamber

2

Manual spray operation platform

2

Cleaning device in the bottom

The advanced and pneumatic bottom plate cleaning system in spray chamber can completely overcome the high failure rate and impurity pollution to the mechanical scraper device.



Features

Appearance is artistic and elegant

Stainless steel plate is used for the spray chamber that it’s convenient and efficient to change colors, and the possibility that colors mixed caused because of dead angles not being clean can be reduced.

Airflow design that is reasonable can make air flow more smoothly in the spray chamber, by which it can make sure about the powder spraying rate and coating quality.

The top and sideward dustproof illuminating systems are configured so that it’s easier for operators to observe workpieces and reduce waste products because of being ignored to spray.

Manual spray opening is installed in the valve that is designed specially, where operating platform is equipped so that it’s convenient to have manual spray and color changing.

The design is compact that it’s convenient to have maintenance.

Part II Whirly automatic separating device

Air volume

13,500 CBM/H



Features

a. It’s only needed to clean the bottom and sifter of whirly separator, and there are the self-cleaning functions inside and it’s unnecessary to clean. Thus, it’s more convenient to change colors, and it can also better meet clients’ requirements of changing colors.

b. The recovery rate is 95%~97%, and the ultrafine powder and pollutants of recycle powder can be separated and discharged to class-2 filtration system. Ultrafine powder will not be mixed into the available powder paint to cause product quality flaw.

Party III Rotary filter element self-cleaning filtration system

Main parts

Electric control device, filter element, rotary cleaning system, recycle powder bucket, draught fan and electric motor

Material

δ 3.0mm A3 plate (top-grade white powder sprayed)

Rotary filter element cleaning system

8 sets

Filter element (imported)

16 pieces

Filter efficiency

99.99%

Exhaust emission load of filter

<3.0 mg/cu.m

Noise

<85dB

Motor power

18.5KW

Air compression working pressure

4.0 ~ 5.5 bar

Blowback gas consumption each time

100 litres

Features

a. The most advanced generation-three low-abrasion rotary filter element cleaning system is used for the filter element of filter to have periodic automatic cleaning. Thus, it can make sure that the filtering area of filter element can have the most complete cleaning in the condition of lower energy consumption.

b. The advanced polyester filter material is used for the filter inside. It can reach 99.99% efficiency when filtering standard powder coating and the minimum exhaust discharge can be 3mg/m3.

Part IV Automatic recovery system

High-power recycle powder pump

2 pieces

Flow

2.KG/min

Vibrating screen system

Stainless steel screen

Part V Powder supply bucket

Material

δ1.5mm top-grade white powder sprayed



Capacity

150 litres

Input compressed air pressure

2bar


Part VI general electric control cabinet

Cabinet material

A3 plate (powder spray)

Electric control element

SIEMENS PLC is used to have centralized control, and microcomputer touch screen control system is configured.





3, Powder spray elevator: 2 sets



PLC microcomputer control system is used for this elevator, drive motor runs under the control of frequency converter. Signals which are measured through the encoder installed on reducer shaft are sent back to PLC, and signals are sent to frequency converter from PLC when the stroke of elevator is set by manual so that the elevator can have reciprocating motion frequently in an effective coverage. Since the principle of optics is used for rotary encoder, the stroke of elevator can be more accurate and running more stable.



Device configurations below:

Powder spray elevator

Specification and technical data

1. Material A3 plate

2. Effective reciprocating stroke 2200mm

3. Rated load capacity 30kg

4. Rated voltage and power: AC 220V ,750W

5. The speed is stepless adjustable, and the adjustable range is 0~30m/min

6. Rated power 1.1kw/set

7. Speed reducer: MOTOVARIO (Italy)

Feature description

  1. Power-driven frequency control is used that the running is stable, noise is low and service life is long
  2. Original Mitsubishi frequency converter is used.
  3. The positioning of elevator is accurate and it runs stable
  4. Brand-name products are used for the main electric appliances.



4, Curing drying tunnel: 40.0´1.0´3.95m (length X width X height)

Curing drying tunnel is a ring drying tunnel that is heated directly by fuel gas. It has a set of fuel gas heating system and independent hot air circulating design.

1) Structural composition and features of curing drying tunnel:

(1) Drying tunnel consists of the main part of drying tunnel, hot air circulating system and exhaust emission system. A reasonable hot wind flow direction can be formed in drying tunnel with a reasonable layout. Besides, hot air overflowing to the workshop can also be avoided effectively, by which not only energy sources can be saved, but also environment being protected. Exhaust emission system can discharge the exhaust gas from the furnace.



   (2) Tower structure is used for the drying tunnel.



(3) The blowing-in layout of hot air circulating system is up-return down-supply interconversion. Air supply outlet is set below the workpiece, and return duct is set upside the drying tunnel. A reasonable hot wind flow direction can be formed in the drying tunnel with a reasonable layout of air supply outlet and return air inlet under natural lifting power of hot air. Thus, an effect of well-distributed heating for the workpiece, good economical efficiency for air supply and reasonable air distribution can be reached. Air supply outlet is flexible and adjustable. By means of adjusting the blast capacity of air supply outlet, the air output can be changed in each stage, thereby the temperature is well-distributed in the drying tunnel. The wind adjusting plate of air supply groove is made from galvanized sheet.



(4) In order to guarantee the surface quality if workpiece, hot wind filter system is set specially. A thermal cycle air filter is set in air supply outlet that the dust produced in the cyclic process can be filtered. The filter layer is a 5-layer stainless filter net, the thickness of filter is 30mm and the initial resistance is less than 200pa. air filter is dismountable to have the operations of maintenance and ash removal. Therefore, the quality of air supply and coating can be guaranteed.



   (5) In order to reduce heat output in the outlet of drying tunnel, a set of heat insulation area is set in the outlet of drying outlet to reduce energy        consumption and protect the working environment.



2) Curing oven technical parameters:

No.

Item

Specification

Note

1

Mode

Hot air circulating cut-through curing oven


2

Structure

Frame structure


3

Internal size

40000´700´3700 (length X width X height) mm


4

Processing temperature

180~220℃ (adjustable)


5

Temperature rise time

It rises to the setting temperature in 30min at room temperature


6

Curing time

20min
7

Temperature control measuring point

One point for control and one point for monitoring


8

Heating method

Heated directly with natural and hot wind convective circulation





3) Materials utilization of moisture drying oven:

Name

details

Texture



Oven chamber

Internal wall

Galvanized sheet:δ1.2mm

External wall

           Cold-rolled sheet: δ1.2mm

External edge ornament plate

δ1.5 cold plate hydroforming

Internal edge ornament plate

δ1.2 galvanized sheet hydroforming

Framework

Angle iron 25x25

Rock wool thermal insulation material

δ150mm 80Kg/ m3 rock wool



Underframe

Support frame

80×50 square tube

Bed plate

A3 plate δ10mm

Circulating air duct

Return duct

Galvanized sheet: δ1.2mm

Air duct

Galvanized sheet: δ1.2mm

Exhaust pipe



Standard spiral duct

Heating chamber

Internal wall

Stainless steel sheet: δ1.5mm

External wall

Cold-rolled sheet: δ1.2mm

Thermal insulation material

Outerδ200mm 80Kg/m3 rock wool

Framework

Angle iron 25×25



4) Outsourcing of drying tunnel equipments



Name



Curing oven



Combustion engine



Brand

BENTONE

Type

BG400-2

Combustion power

300,000 kcal/h

Fire adjusting form

Double period of fire

Power consumption of combustion engine

About 0.25KW

Rate of flow

6~31.8m3/h

Maximum pressure

360 millibar

Working pressure

20 millibar

Quantity

2 sets



Hot wind circulating fan

Brand

Foshan Yingheng Ventilator

Power of draught fan

P=7.5KW×2 sets

Blast volume

8288~16576 m3/h

Wind pressure

1116~1760 Pa

Temperature controller

PID smart automatic calculation controller

No. of temperature controller

E5AZ

Accuracy of instrument

0.1℃

Type of output control

Relay contact output AC250V.3A

Type of input control

Thermocouple

Alarm output function

Alarm output in two positions



5, Suspension conveying system

    (1) Conveyor is installed with emergency shut-down device in the corresponding operating position for the convenience of operating production      running to ensure safety.



(2) Conveyor line driving device is used for planet cycloidal pin gear speed reducer and electric motor. The chain is driven by driving chain, and driving device has the functions of phase loss, overload and shirt circuit so as to make the running of conveyor line safer and more reliable.



(3) The type of control is frequency control, which can meet the requirements of different manufacturing techniques and speeds.



    (4) The operation of conveyor is stable, and there is not the problem of crawl or block.



    (5) The rail surface of trolley conveyor is painted, and the colors are decided according to the requirements of clients.



    (6) Valid parameters of conveyor

Conveyor No.

QXT-250 chain (Taiwan Zhurong)

Rail specification

T4.0×80×80 (carbon steel)

Horizontal cornering

R2500 manganese steel

Single-point load

50KG

Pitch

250mm/section

Driving device



Motor P=3.0KW×1 set

Speed reducer 100# 60:1×1 set

Drive seat

Conveying belt, pressing plate and bearing, etc

Support

T2.5×100×100 square tube

Joint

Flange

Tension device

Heavy punch

Lubricating device

Automatic oiling machine

Safety device

Automatic overload protection is set

Scram buttons are set in the feeding and blanking areas and spraying chamber



6. Electrical control system

1) All the circumscribed control circuits are routed by metal sleeves or flame retardant plastic sleeves. The circuits have fastening structures to reach safety norms in utilizing electric power.



          2) The control panel is under centralized control, and will be installed in the most appropriate position considered by Party A for the                         convenience of operation.



  3) Digital display automatic controller is used for the temperature control in heating positions. Automatic control will be conducted                    accurately when displaying all the hot-spot temperatures.



          4) Human-computer interface and PLC programming are used for the panel to have centralized control. The measures of instruments                      must  be accurate, and the measurement error must be in the range of national standard.



          5) The design, type selection, manufacturing and installation of electrical equipments must live up to the national related standards.



          6) Wires should have a firm touch with the terminals of electric appliance.



          7) Wires should be marked with distinct wire sizes in the positions of electrical appliance terminals and line banks. Besides, it should not                be easy to be worn away or fading.



          8) Combustion safety protection system is set, that’s to say, the furnace will be shut down automatically when the temperature is too high,              controlled by sound-light alarm and interlocking electric devices.



      9) High-quality elements produced by national appointed manufacturers are used for the control panel.



    10) Spraying plastic cabinet is used for the control cabinet.



    11) Power configuration form: 380V, 3-phase, 5-wire, AC



    12) In the process of production, the device should have the corresponding interlocking protection and necessary alarm indication function             under the circumstance below:

A.Drying tunnel overtemperature control

B.Fuel gas heat exchange firing

C.Emergency shut down

D.Heat exchanger overtemperature alarm



System control function:

1.

Combustion engine flame control system

2.

Curing oven temperature display and control system

Temperature display system

Temperature control system

3.

Curing oven air curtain device system

4.

Conveyor frequency conversion system

5.

Exhaust emission system

6.

Spraying chamber, recovery system, powder delivery and other valve systems

7.

PLC automatic blowback system

8.

Mictocomputer touch screen control system is configured





Materials for the main electronic control system

No.

Name

Brand

Disconnector

SCHNEIDER

2

Contactor

SCHNEIDER

3

Thermal overload protector

SCHNEIDER

4

Intermediate relay

Japanese OMRON

5 PLC

SIEMENS

6

Touch screen

SCHNEIDER

7

electric lift frequency converter

Japanese MITSUBISHI

8

Curing oven driving frequency converter

Alpha

9

Indicator light and button switch

SCHNEIDER

10

Curing oven temperature-controlled meter

Japanese OMRON

11

Water-drying temperature-controlled meter

Japanese OMRON

12

Wire

National standard


Recommended Products
Get in touch with us
Tel : +86-18675161888
Fax : 86-757-8109-8395
Characters Remaining(20/3000)
