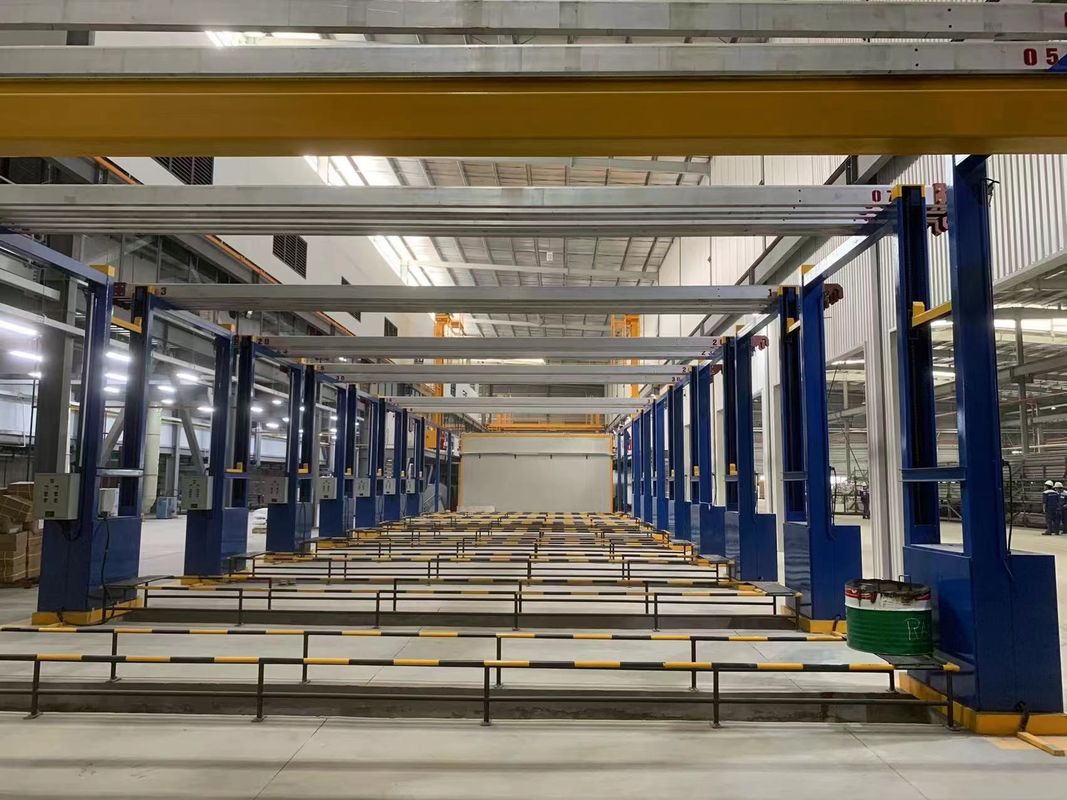

Industrial Electrophoresis Production Line Device Electrophoretic Paint

Industrial Electrophoresis Production Line Device Electrophoretic Paint
Features Gallery Product Description Request A Quote
Name: Electrophoresis Production Line
Conductivity Decrease: 100~200μs/cm/time
PH Value Decrease: 0.2~0.3/time
Resin Use Life: 100~150 Times
Type: Electrophoresis Varnish Rectification Device
Usage: Industrial
High Light:

Industrial Electrophoresis Production Line


Electrophoresis Production Line Device


Electrophoretic Paint

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: ROPWE-1~30T
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

Electrophoresis Varnish Rectification Device


The company has absorbed the international advanced electrophoretic paint rectifier device technology, and developed its own new equipment.

This machine uses special resin imported from Japan, suitable for soluble series anode electrophoresis paint film.

Our device fully meets the requirements of imported related equipment, and is a necessary equipment for aluminum anodized electrophoresis.


Working principle:

With the continuation of electrophoresis in the production, the impurity ions of the electrophoresis tank will increase due to the introduction of the pretreatment process or the impurity ions of the section itself, thus changing the conductivity and PH value of the electrophoresis. In order to effectively remove the harmful impurities in the electrophoresis tank, such as sulfate ion and other impurity ions, the electrophoretic paint rectification equipment should be used.

The principle is to use ion exchange resin to remove impurity ions, so as to control the PH value and conductivity of the storage tank.

So that the foundation is within the allowable process parameters.

When the resin is saturated with the impurity ions in the tank, the resin will lose its effect and must be regenerated.

The regeneration process is the opposite to the refining process, using hydrogen ions or hydroxide ions to regenerate and exchange the impurity ions attached to the ion exchange resin.


Basic configuration:

  1. Mitsubishi Japanese kation resin(WK-40) :150L
  2. Mitsubishi Japanese anion resin(SA-10AP) :450L
  3. Stainless steel delivery pump:1 unit
  4. Kation tower Ø 600 X 1600mm H: 1 unit
  5. Anion tower Ø 800 X 1800mm H :1 unit
  6. Electrical control device: 1 unit
  7. Pneumatic control device: 1 set
  8. Stainless steel supporting rack :1 unit
  9. Pipe line and valve, jet gun, flow gauge, pressure gauge:1 set
