2500T / Month Manual Oxidation Production Line 8000*Width*3500

1set
MOQ
RMB25,000,000-35,000,000/set
Price
2500T / Month Manual Oxidation Production Line 8000*Width*3500
Features Gallery Product Description Request A Quote
Features
Specifications
Output: 2500Ton/month
Type: Horizontal
Engineer Operation Mode: Semiautomatic Or Automatic
Anodizing Film Thickness: 8-12µm
Max Profile Length: 6500mm
Colour: Silver Bronze Brown Black Champagne Gold
Tanks Inside Size: 8000*width*3500
Voltage: 380V~415v
High Light:

Manual Oxidation Production Line

,

2500T / Month Oxidation Production Line

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-AL
Model Number: APL-2500T
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 180-200days
Payment Terms: T/T
Supply Ability: 1set/6 months

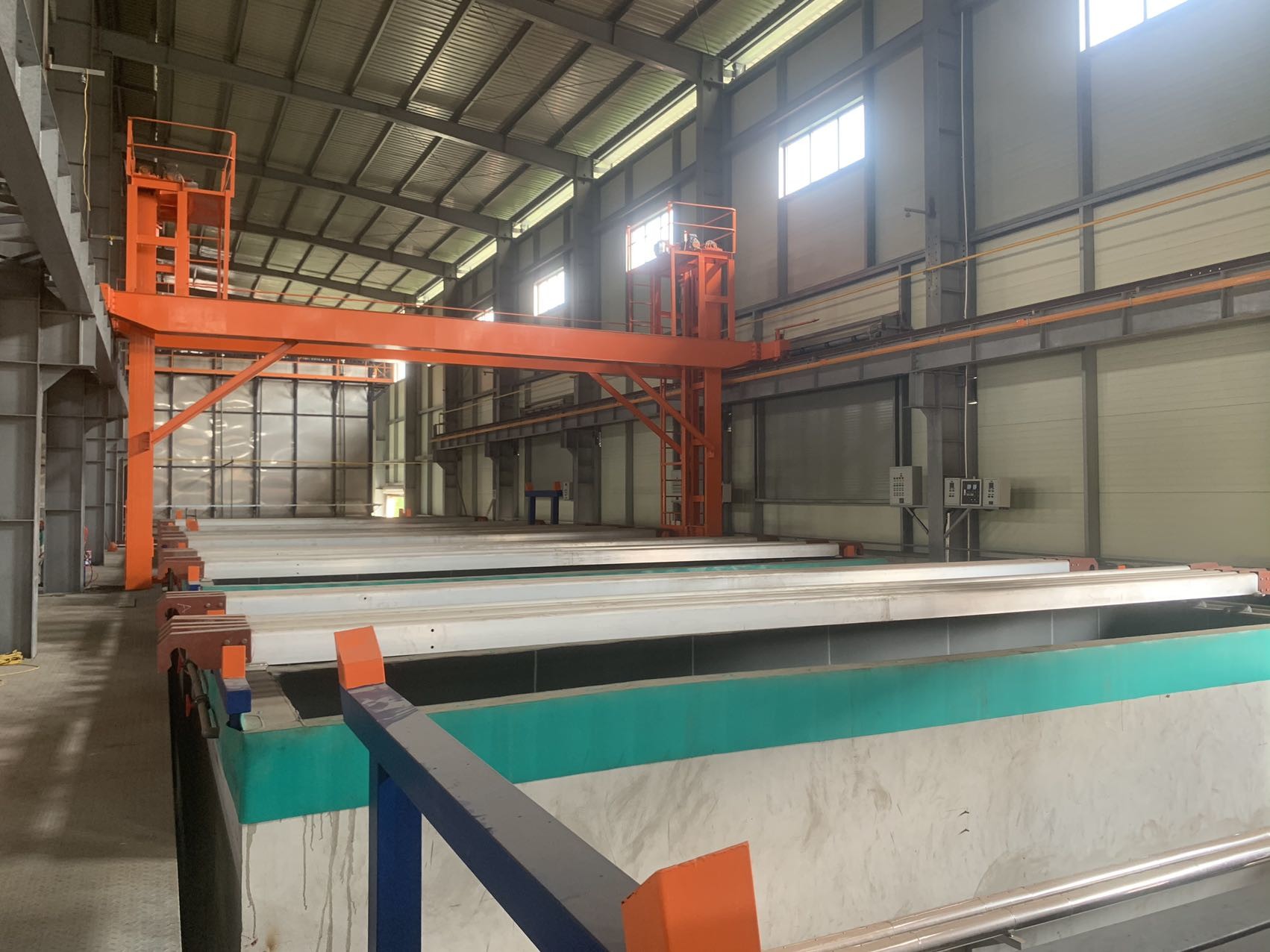

Product Description

2500T/month Manual Oxidation Production Line 8000*width*3500



一.  Name:

1 Name Control Horizontal Anodiding line
2 Output 2500Ton/Month
3 Model Horizontal U mode.
4 Operation method Semiautomatic or Automatic
5 Racking method Manual racking system



三. Design Condition





1 Alloy Aluminium 6061 to 6063 or others
2 Anodizing film thinkness 10~ 12µm micron
3 Average coverage area 350m²/T (ton)
4 Max aluminium profile length 6500mm
5 Aluminum extrusion ratio formula 2.5kg/m²
6 Working h/m 300d/m x 20h/d = 600h/m
7 Racking system Three fixtures /rack
8 Racking operation Manual
9 Equipment Usage Rate 0.9
10 Power supply AC220V 50Hz
11 Control Power AC220V 50Hz
12 Water supply 2kg/cm²·G
13 Hot steam 6kg/cm²·G
14 Compressor air 6kg/cm²·G



四, Process Tank

1 Degreasing 【Free sulfuric acid 180±30 g/l】 1 Tank
2 Alkaline Etching【Free alkali 40-60g/l,Al3+ 30-120g/】 2 Tanks
3 NeutralizationFree sulfuric acid180±20g/l】 1 Tank
4 Anodising 【Free sulfuric acid 140-180g/l,Al3+≤20g/l】 8 Tanks
5 Colouring 【stannous sulfate 3-8g/l,Free sulfuric acid 15-25g/l,PH 0.8-1.2】 3 Tanks
6 Medium Temperature Sealing【PH 5-6.5,Nickel ion0.8-1.3g/l,Fluorion0.3-0.7 g/l】 3 Tank

五, Treatment Process:

  1. Degreasing
    (1) 6jig(rack)/ tank x 1 tank
    =6jig(rack)
    (2) treatment time: 2-5min
  2.  Alkaline Etching
    (1) 6jig(rack) / tank x 2 tank
    =12jig(rack)
    (2) treatment time: 3-15min
  3.  Neutralization
    (1) 6jig(rack) / tank x 1 tank
    =6jig(rack)
    (2) treatment time: 1-5min
  4.  Anodizing
    (1) 3 jig(rack)/tank x 8tanks = 24jig(rack)
    (2) Current density: 130A/m²
    (3) Process time: 30min
    (4) Unprocess time: 10min
    (5) Total time 30+10=40min


          (6) Average anodizing layer : 0.36*1.3*30*0.77 =10.81um

  1.  Colour 1

                     1) Clour process: Mix Salts

                     2) Quantity:3 jig(rack)/tank x 1tanks = 3jig(rack)

                     3) Current density: 70A

                     4) Process time: 2-8min



      6. Sealing
           1) Sealing menthod:  Sealing at Medium or Normal Temperature
           2)
Quantity:6jig(rack)/tank x 1 tank
           3) Process time 10-15min



六. Design Parameter and Setting

       1. Anodizing treatment area:
              1) Each anodizing process tank need 40min ,where total jig(rack)/year:

                   ( 3 rack x 8 tank x 60min/h) ÷40min x600 hour =21600jig(rack)

2) Design 50m²/jig(rack) . Where every tank is 100m²
3) Area treatment/year :
21600jig(rack)x 50m² /jig =1080000m²



2. Anodizing treatment weight:
        Monthly output : 1080000m²÷350m²/T*0.9=2777T≧2500T



3. Power consumption:
        1) Anodising Tank:100m²/tank* 130A/ m²÷0.9=14444A/tank

           Power Rectifier : 15000A =3unit
        2) Clouring tank: 100㎡/tank×70A/m²÷0.9 = 7777A/tank

   Colour Rectifier : 8000A =3 unit



七. Process Chat



Discription for Un
1 De Degreasing
2 Rs Rinsing
3 HW Rs Hot Water Rinsing
4 AE Alkaline Etching
5 Ne Neutralization
6 An Anodizing
7 Cl Coloring
8 Sl Sealing
9 MU Material Unloading
10 Pc Packing



2500T / Month Manual Oxidation Production Line 8000*Width*3500 0
