700T/MONTH Large Capacity Manual OXIDATION PRODUCTION LINE

700T/month Large Capacity Manual Anodizing Production Line

一. Equipment Name:

An oxidation production line typically refers to a manufacturing facility or system that is designed for the purpose of conducting oxidation processes on various materials, such as metals or semiconductors.

二. Design Condition

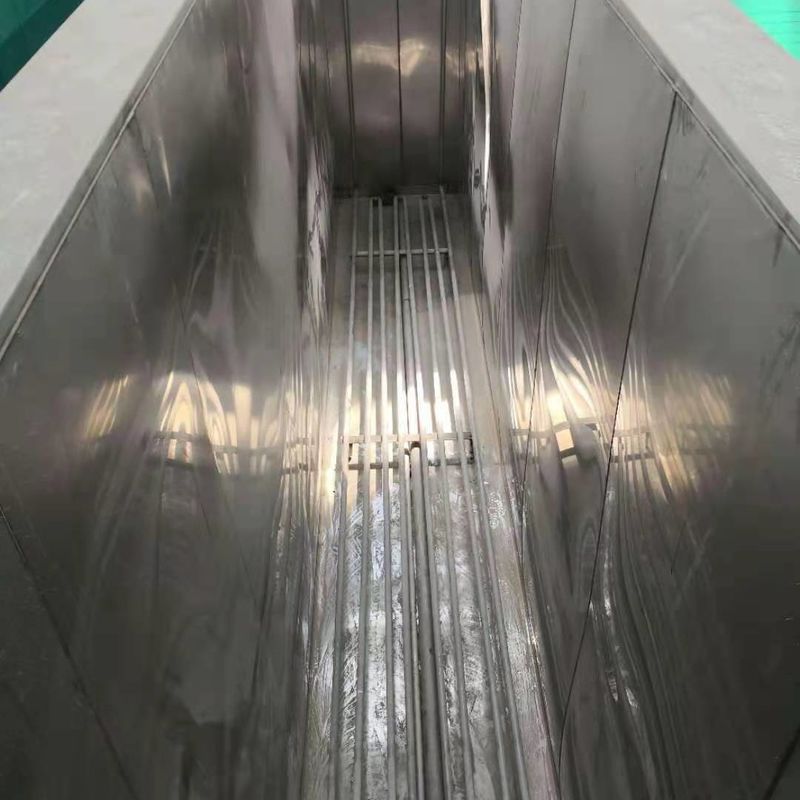

三, Process Tank

四, Treatment Process:

1. Degreasing
   (1) 6jig(rack)/ tank x 1 tank=6jig(rack)
   (2) treatment time: 2-5min
2.  Alkaline Etching
   (1) 6jig(rack) / tank x 2 tank=12jig(rack)
   (2) treatment time: 3-15min
3.  Neutralization
   (1) 6jig(rack) / tank x 1 tank=6jig(rack)
   (2) treatment time: 1-5min
4.  Anodizing
   (1) 2 jig(rack)/tank x 3tanks = 6jig(rack)
   (2) Current density: 130A/m²
   (3) Process time: 28min
   (4) Unprocess time: 10min
   (5) Total time 30+8=38min

          (6) Average anodizing layer : 0.36*1.3*28*0.77 =10.1um

5.  Colour 1

                     1) Clour process: Mix Salts

                     2) Quantity:2 jig(rack)/tank x 1tanks = 2jig(rack)

                     3) Current density: 70A

                     4) Process time: 2-8min

      6.Sealing
           1) Sealing menthod:  Sealing at Medium or Normal Temperature
           2) Quantity:6jig(rack)/tank x 1 tank
           3) Process time 10-15min

五. Design Parameter and Setting

       1. Anodizing treatment area:
              1) Each anodizing process tank need 38min ,where total jig(rack)/year:​

                   ( 2 rack x 3 tank x 60min/h) ÷38min x600 hour =5684jig(rack)

2) Design 57.1m²^/jig(rack) . Where every tank is 114.2m²
3) Area treatment/year : 5684jig(rack)x 57.1m² /jig =324556m²

2. Anodizing treatment weight:
        Monthly output : 324556m²÷400m²/T*0.9=730T≧700T

3. Power consumption:
        1) Anodising Tank:100m²/tank* 130A/ m²÷0.9=14444A/tank

           Power Rectifier : 15000A =3unit
        2) Clouring tank: 100㎡/tank×70A/m²÷0.9 = 7777A/tank

   Colour Rectifier : 8000A =1 unit

六. Process Chat
