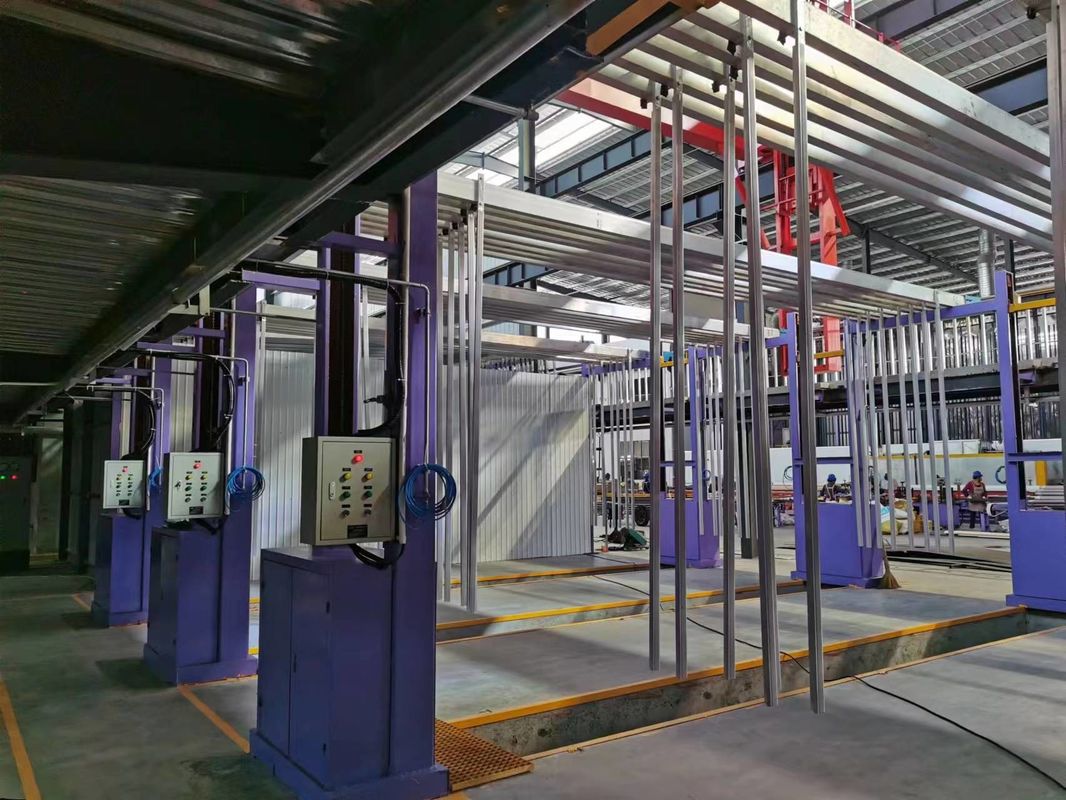

Hight Quality 2000T/month Anodizing Production Line For Aluminum Profile

Hight Quality 2000T/month Anodizing Production Line for aluminum profile

一.  Production Description:

1. Anodizing production lines offer a wide range of color options for the anodized coatings.

2. Anodized coatings can be sealed to improve their corrosion resistance, enhance durability, and provide additional surface protection.

3.Anodizing production lines can provide post-treatment options to further enhance the properties of the anodized coatings.

二. Design Condition:

三. Treatment Process:

1. Degreasing
   (1) 6jig(rack)/ tank x 1 tank=6jig(rack)
   (2) treatment time: 2-5min
2.  Alkaline Etching
   (1) 6jig(rack) / tank x 2 tank=12jig(rack)
   (2) treatment time: 3-15min
3.  Neutralization
   (1) 6jig(rack) / tank x 1 tank=6jig(rack)
   (2) treatment time: 1-5min
4.  Anodizing
   (1) 3 jig(rack)/tank x 6tanks = 18jig(rack)
   (2) Current density: 130A/m²
   (3) Process time: 30min
   (4) Unprocess time: 10min
   (5) Total time 30+10=40min

          (6) Average anodizing layer : 0.36*1.3*30*0.77 =10.81um

5.  Colour 1

                     1) Clour process: Mix Salts

                     2) Quantity:3 jig(rack)/tank x 1tanks = 3jig(rack)

                     3) Current density: 70A

                     4) Process time: 2-8min

      6. Sealing
           1) Sealing menthod:  Sealing at Medium or Normal Temperature
           2) Quantity: 6jig(rack)/tank x 1 tank
           3) Process time 10-15min

四.Process Tank

1. Degreasing 【Free sulfuric acid 180±30 g/l】 1 Tank
2. Alkaline Etching【Free alkali 40-60g/l,Al3+ 30-120g/】 2 Tanks
3. Neutralization 【Free sulfuric acid180±20g/l】 1 Tank
4. Anodising 【Free sulfuric acid 140-180g/l,Al3+≤20g/l】 6 Tanks
5. Colouring 【stannous sulfate 3-8g/l,Free sulfuric acid 15-25g/l,PH 0.8-1.2】 3 Tanks
6. Medium Temperature Sealing【PH 5-6.5,Nickel ion0.8-1.3g/l,Fluorion0.3-0.7 g/l】 3 Tank

五. Design Parameter and Setting

       1. Anodizing treatment area:
              1) Each anodizing process tank need 40min ,where total jig(rack)/year:​

                   ( 3 rack x 6 tank x 60min/h) ÷40min x600 hour =16200jig(rack)

2) Design 50m²^/jig(rack) . Where every tank is 100m²
3) Area treatment/year : 16200jig(rack)x 50m² /jig =810000m²

2. Anodizing treatment weight:
        Monthly output : 810000m²÷350m²/T*0.9=2082T≧2000T

3. Power consumption:
        1) Anodising Tank:100m²/tank* 130A/ m²÷0.9=14444A/tank

           Power Rectifier : 15000A =6unit
        2) Clouring tank: 100㎡/tank×70A/m²÷0.9 = 7777A/tank

   Colour Rectifier : 8000A =3 unit

六. Process Chat
