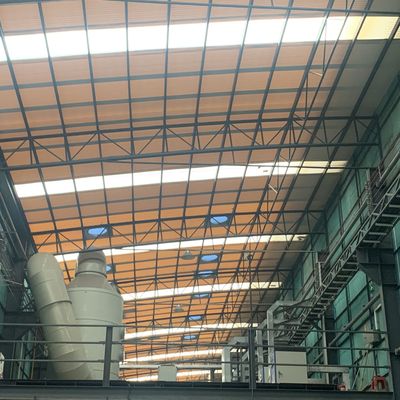

Anodizing Production Line With 8-12 Micro M Thickness For Aluminum Profiles

Anodizing Production Line with 8-12 micro m Thickness for Aluminum Profiles

一.Description

1.Anodizing extends the lifespan of aluminum products, reducing the need for frequent replacements and minimizing the consumption of raw materials.

2.Anodizing does not involve heavy metals or hazardous chemicals, unlike alternative surface treatments such as chrome plating.

3.Anodized aluminum can undergo the recycling process without significant degradation in quality, facilitating a closed-loop approach that reduces the demand for virgin aluminum, conserves energy, and minimizes waste generation.

二. Design Condition

三, Process Tank

1. Degreasing 【Free sulfuric acid 180±30 g/l】                                                            1 Tank
2. Alkaline Etching【Free alkali 40-60g/l,Al3+ 30-120g/】                                       2 Tanks
3. Neutralization 【Free sulfuric acid180±20g/l】                                                    1 Tank
4. Anodising 【Free sulfuric acid 140-180g/l,Al3+≤20g/l】                                          5 Tanks
5.  Colouring 【stannous sulfate 3-8g/l,Free sulfuric acid 15-25g/l,PH 0.8-1.2】          3 Tanks
6. Medium Temperature Sealing【PH 5-6.5,Nickel ion0.8-1.3g/l,Fluorion0.3-0.7 g/l】 3 Tank

四. Treatment Process:

1. Degreasing
   (1) 6jig(rack)/ tank x 1 tank=6jig(rack)
   (2) treatment time: 2-5min
2.  Alkaline Etching
   (1) 6jig(rack) / tank x 2 tank=12jig(rack)
   (2) treatment time: 3-15min
3.  Neutralization
   (1) 6jig(rack) / tank x 1 tank=6jig(rack)
   (2) treatment time: 1-5min
4.  Anodizing
   (1) 3 jig(rack)/tank x 5tanks = 15jig(rack)
   (2) Current density: 130A/m²
   (3) Process time: 30min
   (4) Unprocess time: 10min
   (5) Total time 30+10=40min

          (6) Average anodizing layer : 0.36*1.3*30*0.77 =10.81um

5.  Colour 1

                     1) Clour process: Mix Salts

                     2) Quantity:3 jig(rack)/tank x 1tanks = 3jig(rack)

                     3) Current density: 70A

                     4) Process time: 2-8min

      6. Sealing
           1) Sealing menthod:  Sealing at Medium or Normal Temperature
           2) Quantity: 6jig(rack)/tank x 1 tank
           3) Process time 10-15min

五. Design Parameter and Setting

       1. Anodizing treatment area:
              1) Each anodizing process tank need 40min ,where total jig(rack)/year:​

                   ( 3 rack x 5 tank x 60min/h) ÷40min x600 hour =13500jig(rack)

2) Design 50m²^/jig(rack) . Where every tank is 100m²
3) Area treatment/year : 13500jig(rack)x 50m² /jig =675000m²

2. Anodizing treatment weight:
        Monthly output : 675000m²÷350m²/T*0.9=1735T≧1500T

3. Power consumption:
        1) Anodising Tank:100m²/tank* 130A/ m²÷0.9=14444A/tank

           Power Rectifier : 15000A =3unit
        2) Clouring tank: 100㎡/tank×70A/m²÷0.9 = 7777A/tank

   Colour Rectifier : 8000A =3 unit

六. Process Chat
