1200T/M Capacity Semi-Automatic Aluminum Anodizing Line with 6500mm Profile Length

Brand Name:	MEL-AL
Model Number:	MEI-AN-1200
MOQ:	1set
Price:	Customized Price
Packaging Details:	Standard Packaging
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, China

Document:

PDF Gallery_20240719_102320...20.pdf

Productname:

Anodizing Production Line

Material:

Alumimium Alloy Profile

Racking Operation:

Manual/Semi-automatic

Maximum Length:

6500mm Profile Cut Length

Environmentalcompliance:

Wastewater Treatment System Included

Power Supply:

AC 3phase 380V 50Hz

Mode:

Horizontal

Aluminium Alloy Shape:

O ,T5,T4,T6,T851.H112.H113,H25,H36...

Cooling Time:

5-10min

Materialcompatibility:

Aluminum And Its Alloys

Tanks Inside Size:

8000*width*3500

Characteristic:

Predictive Maintenance

Voltage:

220V/380V

Operation:

Semi-automatic Or Full-Automatic

Wrranty:

365days

Supply Ability:

1 set /60-90days

Highlight:

1200T/M Capacity Anodizing Production Line

Semi-Automatic Aluminum Anodizing Line

6500mm Profile Length Surface Treatment Line

Product Description

1200T/M Semi-Automatic Gantry Aluminium Anodizing Production Line (4 Anodizing Tanks + 2 Dyeing Tanks)

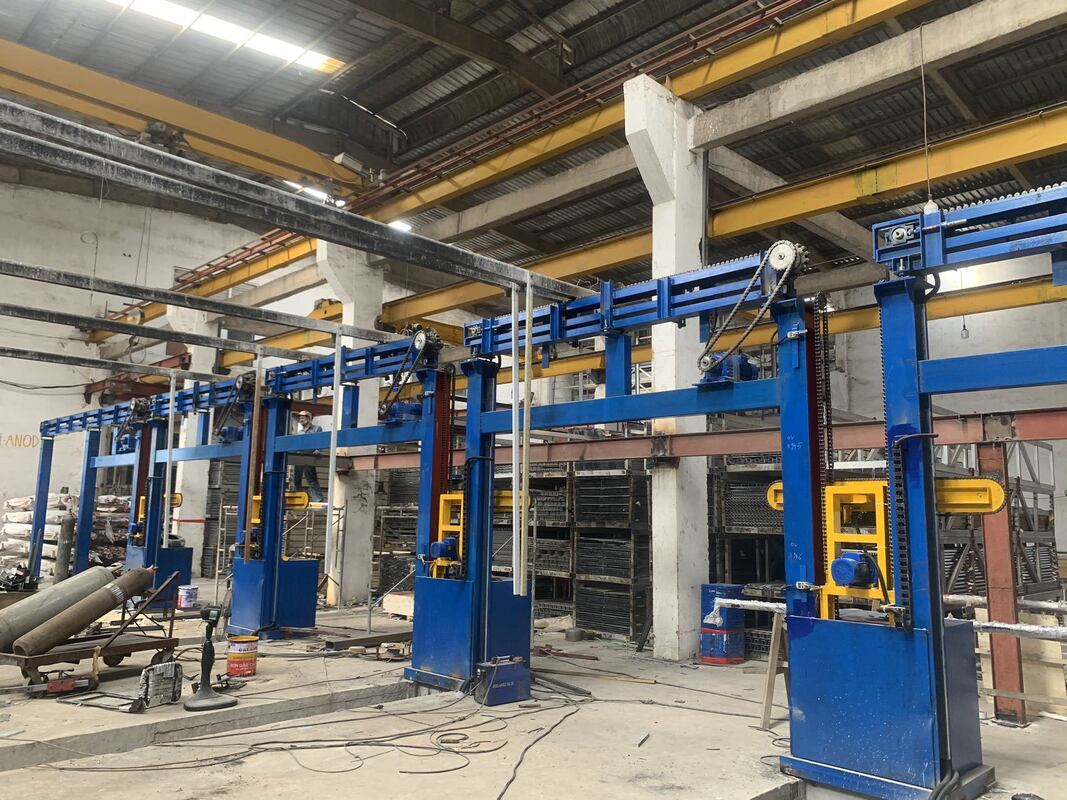

This semi-automatic anodizing line features 4 independent anodizing tanks and 2 dyeing tanks, complemented by complete pre-treatment, multi-stage rinsing, and sealing processes. It utilizes a frequency conversion gantry crane for semi-automatic transportation, supporting seamless switching between manual and semi-automatic operation modes.

Designed for 6063 & 6061 aluminium profiles and industrial aluminium components, the system supports natural anodizing and multi-color dyeing processes. With high flexibility, the line accommodates both sampling and mass production for diversified, medium, and small-batch orders.

The system delivers a stable monthly capacity of 1200 tons under two-shift operation. Featuring moderate investment requirements and low workshop height specifications, it represents an ideal solution for medium and small aluminium surface treatment facilities.

All tanks are constructed with thickened anti-corrosion PP plates and equipped with circulation filtration, air agitation, and temperature control systems. High-frequency rectifiers ensure uniform oxide film thickness and stable color consistency. The system includes acid mist collection to meet Guangdong environmental emission standards.

Key Advantages

Standard configuration: 4 anodizing tanks + 2 dyeing tanks; simultaneous anodizing and dyeing for flexible process arrangement
Semi-automatic gantry crane with variable frequency drive for stable operation and customizable dwelling time for each process
Independent bath system to minimize cross-contamination and reduce chemical consumption
Compatible with natural finish, champagne, black, bronze and other dyeing colors; stable film thickness range: 8-12μm
High equipment availability, suitable for frequent specification changes and small-batch sampling
Lower initial investment than fully automatic vertical lines, simple civil reconstruction and shorter delivery cycle
Complete anti-corrosion pipeline & waste gas collection design, facilitating EIA approval

Technical Specifications

Item	Specification
Model	MEIAL-AN-1200
Operation Mode	Semi-automatic Crane
Core Tanks	4 × Anodizing Tank + 2 × Dyeing Tank
Auxiliary Tanks	Degreasing, Etching, Neutralization, Multi-Rinse, Sealing Tanks
Rated Capacity	Two shifts, stable monthly output: 1200 MT
Max. Profile Length	6000mm (custom extended length available)
Loading Capacity	500-700 kg per rack
Standard Film Thickness	8～12 μm
Power Supply	High Frequency Pulse Rectifier
Tank Material	Thickened Polypropylene (PP)/PVC
Control System	PLC + Touch Screen
Power Input	380V/3Ph/50Hz (custom extended power available)
Optional Accessories	Chiller, online pH monitor, auto-dosing system, drying oven
Operation Mode	Semi-automatic / Manual / Automatic

Process Flow

Loading → Degreasing → Rinsing → Alkali Etching → Rinsing → Neutralization & Brightening → Multi-stage Rinse → Anodizing → Rinse → Dyeing → Rinse → Sealing → Rinse → Unloading & Drying
