NPSH Anodizing Line Accessories 380V Horizontal Centrifugal Pump Single Stage

RMB 8,070.00 /set
NPSH Anodizing Line Accessories 380V Horizontal Centrifugal Pump Single Stage
Features Gallery Product Description Request A Quote
Protection Grade: IP55
Insulation Grade: F
Standard Voltage: 50Hz :3X380V;1X220V
Flow Rate: 100m3/h
Lift: 13m
Speed: 2900rpm
High Light:

NPSH Anodizing Line Accessories


Anodizing Line Accessories 380V


Horizontal Centrifugal Pump Single Stage

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-AL
Model Number: ZS80-65-125/5.5
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 80-90days
Payment Terms: T/T
Supply Ability: 1set/two month
Product Description

ZS 50Hz Stainless steel horizontal single-stage centrifugal pump


ZS series stainless steel horizontal single-stage centrifugal pump is made by advanced technology such as stainless steel plate stamping,bulging and welding,it is the first new generation centrifugal pump in China,and can substitute for traditional IS pump,general corrosion resistant pump,it has beautiful appearance,light structure efficient and energy-saving,durable,light corrosion resistance,low noise and other characteristics.

Model meaning

ZS 65-50-200/11.0

Z: Stainless steel horizontal single-stage centrifugal pump

S: Extension shaft

65: Suction inlet diameter

50: Discharge port diameter

200: Nominal diameter of impeller

11.0: Motor power


ZS series stainless steel horizontal single-stage centrifugal pump is multifunctional product with a wide range of applications,it can rransport all kinds of water including industrial liquids and different meida,applicable to different temperature ,flow and pressure ranges,the typical application mainly include as following:

Arch water: Water plant filtration,transport,zoned water supply,main pipe pressurization.

Industrial pressurization: Process water system,cleaning system

Industrial liquid transportation: boiler water supply,condenstaion system,cooling and air-conditionging system,manchine tool support ,weak acid and alkali transportation.

Water treatment: Distillation system separator,etc
Installation conditions:

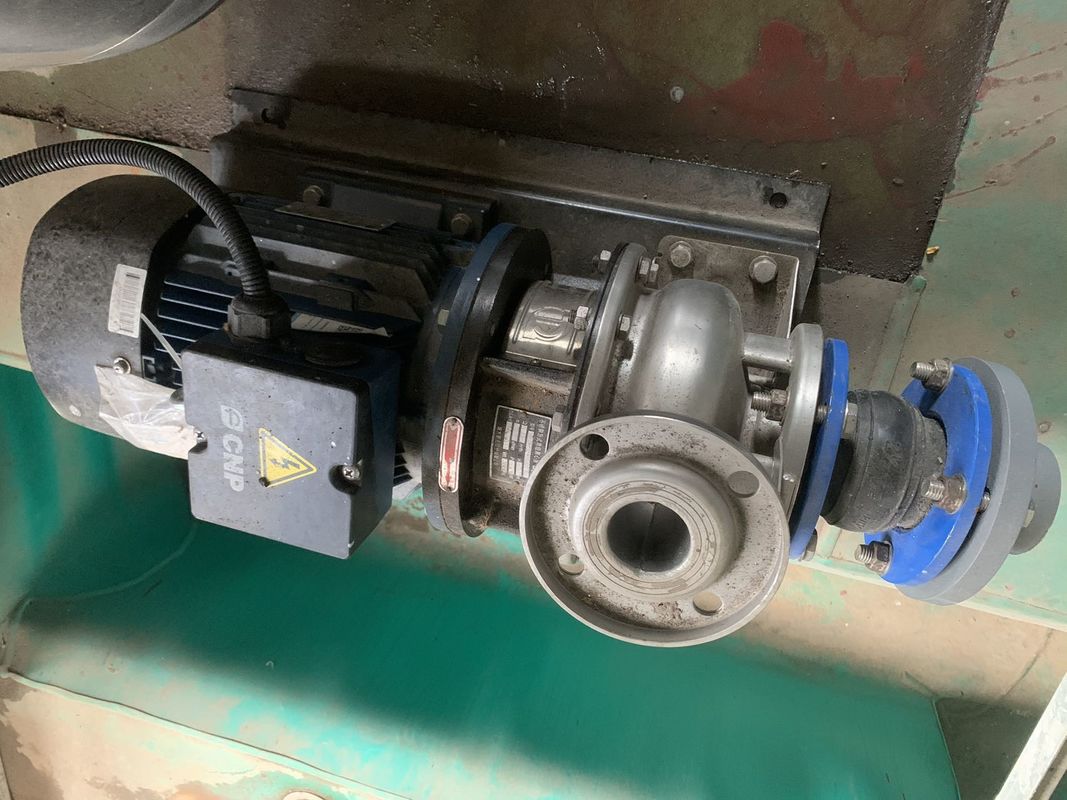

ZS series stainless steel horizontal single-stage centrifugal pump is directly connected with the pump shaft,consisting of pump,pump shaft and standard motor.The pump shoule be installed in a ventilated and frozen place.

The installation of the pump shall ensure that the pump is not effected by the tension of the system pipeline during use.

If the pump is installed outdoors,it must be equipped with a suitable cover to prevent water ingress or conclensation of electrical components.

In order to facilitate inspection and maintenance,sufficient speace must be left arownd the nuit.

The electrical wiring device shall ensure that the pump is not danmaged by phase loss,voltage instability ,leakage and overload.

The pump shall be installed horizontally on the base,with the horizontal direction as the pump inlet and the vertical direction as the pump outlet.

Minimum inlet pressure - NPSH

If the pressure in the pump is lower than the vapor pressure of the liquid being transported, cavitation may occur. To avoid cavitation, ensure that there is a minimum pressure on the inlet side of the pump, and the maximum suction head H [m] can be calculated using the following formula:


Pb - atmospheric pressure (bar)

In closed pipelines, it can be considered as the system pressure of the closed system (bar)

NPSH net positive suction head (meters)

It can be read at the NPSH curve corresponding to the maximum flow rate in the performance curve.

Hf - Pipeline loss at the inlet (meters)

It is the value at which the maximum flow rate may be generated by the corresponding pipeline.

Hv - Vaporization pressure of liquid (meters)

The magnitude of its value depends on the temperature and vaporization pressure of the liquid.

Hs - Safety margin (meters)

Minimum pressure head of 0.5 meters

By calculation, if "H" is a positive value, it indicates that the pump can operate at the maximum suction head "H"; If "H" is negative, it means that the pump must operate normally with a minimum pressure of "H" meters at the inlet.

Note: In general, the above calculations are not carried out. Calculate 'H' only when using the pump in the following situations:

  1. High liquid temperature
  2. The liquid flow rate exceeds the rated value
  3. Large suction head or long inlet pipeline
  4. System pressure too low
  5. Poor import conditions


Cure condition

The following instructions apply to the curves shown later:

  1. Curve tolerance in accordance with ISO9906:2012, Class 3B:
  2. All curves are based on the measured values of the motor at a constant speed of 2900rpm or 2950rpm, with a voltage of 3X380V;
  3. The test medium is clean water with a temperature of 20 .C and no solid impurities;
  4. The pump should not operate below the minimum flow rate specified in the curve or above the maximum flow rate specified in the curve;
  5. If the viscosity or density of the pumped liquid is different from that of water, the motor power must be adjusted.

Operating Conditions

Clean, thin, non flammable and explosive liquid without solid particles or fibers;

Liquid with a temperature between -20.C and 100.C;

Maximum ambient temperature+40.C;

Maximum elevation of 1000 meters;

System maximum pressure 10bar;


The motor is a fully enclosed, air-cooled secondary standard motor;

Protection level: IP55

Insulation level: F

Standard voltage:50Hz 1X220V 3X380V
