Durable Anodizing Line Accessories Fluoroplastics Series Parts

RMB 4,800.00 /set
Durable Anodizing Line Accessories Fluoroplastics Series Parts
Features Gallery Product Description Request A Quote
Protection Grade: IP55
Insulation Grade: F
Standard Voltage: 50Hz
Flow Rate: 12.5m3/h
Lift: 20m
Speed: 2900rpm
High Light:

Durable Anodizing Line Accessories


Anodizing Line Accessories Fluoroplastics

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-AL
Model Number: IHW50-32-125/2.2kw-2P
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 80-90days
Payment Terms: T/T
Supply Ability: 1set/two month
Product Description

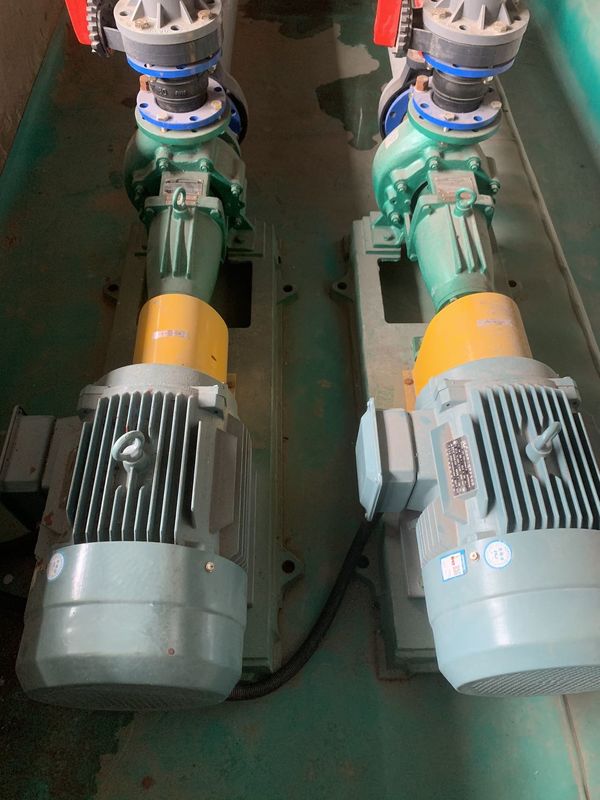

IHW New Generation Fluoroplastic Centrifugal Pump--IHW50-32-125/2.2kw-2P

Product classification: Fluoroplastics series

Design features: The parts where the pump cover and impeller come into contact with the medium are all sintered and pressed into shape using metal inserts wrapped with fluoroplastics (FPE, PVDF, F46), equipped with external bellows mechanical seals. The grinding material is aluminum oxide VS tetrafluoro, silicon carbide VS tetrafluoro, hard alloy VS hard alloy. Users can choose the grinding surface according to their requirements, and can transport various hydrochloric acid, sulfuric acid, hydrofluoric acid, aqua regia, and various strong oxidants and organic solvents, which are corrosion-resistant It has many advantages such as wear resistance and high temperature resistance. Usage: Widely suitable for pickling and painting processes in automotive manufacturing; Electrolyte transportation in non-ferrous metal smelting; The process flow of chlorine water, wastewater treatment, and acid addition in the ion exchange membrane caustic soda project. Flow range: 3.6T/h-400T/h, lift range: 20m-80m, power range: 0.55kw-110kw, operating temperature: -20 ℃ -120 ℃, configuration can be changed according to actual working conditions.

Widely applicable to pickling and painting processes in automotive manufacturing; Electrolyte transportation in non-ferrous metal smelting; Chlorine wastewater treatment and acid addition processes in ion exchange membrane caustic soda projects

Core accessories

1. Imported PFA material impeller

Imported PFA (fluoroplastic) high-temperature fired closed impeller integrated molding

External use of high-temperature molding technology

Internally wrapped stainless steel spindle

Can transport organic solutions of any concentration

2. Silicon carbide mechanical seal

Silicon carbide sealing ring is the most widely used material in mechanical seals

Has strong chemical corrosion resistance

Has high mechanical strength

Wear resistance and high temperature resistance

3. Imported durable bearings

Imported bearings have longer service life and higher accuracy

Less noise compared to domestic bearings

Higher limit speed and less prone to overheating

High load resistance and comprehensive cost-effectiveness

Genuine products from the original factory, quality assurance
