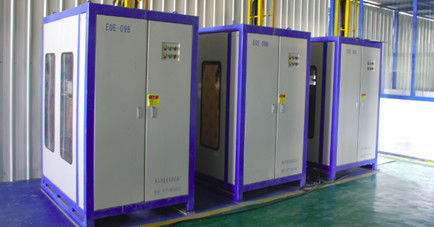

Hard Oxidation Anodising Power Supply PLC Control 20000A 380V 50HZ

Hard Oxidation Anodising Power Supply PLC Control 20000A 380V 50HZ
Features Gallery Product Description Request A Quote
For DC, AC Output Voltage: 0 - Rated Output Voltage Continuously Adjustable
The DC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
AC Output Current: 0 - Rated Output Current Can Be Adjusted Continuously
Anodising Power Supply AC Power: 50HZ, 380V ± 10%
Static Leaching Time: 0 - 180 Seconds Adjustable
Direct Current Rise Time: 10 - 50 Seconds
DC Duration: 0 - 180 Seconds
AC To DC Conversion Time: 5-0 Seconds
Adjustable AC Rise: 25-50 Seconds
AC Adjustable: 1-1800 Seconds Duration
Re-color Time: 5-999 Second Time
The Output Waveform: Full Half Sine Wave, DC, Asymmetrical Wave
Current: 20000A
High Light:

Hard Oxidation Anodising Power Supply


Anodising Power Supply

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: EOE-09B--20000A
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

PLC Control Anodizing Power Supply


  1. High Standard Performance: The EOE-O9B rectifier power supply is designed to meet high-performance standards in line with the IEC-146 standard. It ensures reliable and efficient operation for anodizing processes and other special applications.
  2. Automatic Voltage and Current Regulation: The power supply features a PID controller that enables automatic regulation of the output voltage or current. This ensures precise control and stability during the anodizing process, compensating for any variations or fluctuations.
  3. PLC Implementation: The power supply utilizes a programmable logic controller (PLC) to implement digital control of the output voltage or current. The PLC allows for flexible programming and communication, facilitating seamless integration with other automation systems if required.
  4. Comprehensive Protection Features: The power supply is equipped with various protection functions, including current limiting, overvoltage protection, phase loss protection, and temperature protection. These safeguards ensure the safety of the power supply and connected equipment, preventing damage from abnormal operating conditions.
  5. Intelligent Touch Screen Interface: The power supply is equipped with an intelligent touch screen interface, providing convenient access to current settings, parameter configuration, real-time data display, and fault diagnostics. This user-friendly interface enhances ease of operation and simplifies troubleshooting.
  6. Soft Starting and Regulating: The power supply incorporates soft-starting and regulating functions, which gradually ramp up the output voltage or current during startup to prevent sudden voltage surges. This gradual increase helps protect the anodizing process and connected equipment.
  7. Stable Operation Modes: The intelligent touch screen interface offers different operation modes, such as voltage stabilization and current stabilization. These modes ensure stable and consistent power output, allowing users to select the appropriate mode based on their specific requirements.
  8. Operating Conditions: The power supply is suitable for indoor use under normal operating conditions. It can operate effectively within an altitude of up to 1000 meters (or adjusted accordingly for higher altitudes), at temperatures ranging from -15°C to +40°C, and with a relative humidity below 85%. The installation site should be free from severe vibrations or impacts that could affect the power supply's performance.
  9. Power Supply Stability: The power supply is designed to handle fluctuations in the input power. It can tolerate power supply fluctuations of up to ±10%, ensuring stable and consistent output voltage or current during operation.

         The PLC Control Anodizing Power Supply offers advanced control features, protections, and stable operation to meet the demanding requirements of anodizing processes and other applications. Its energy-saving and environmentally friendly design makes it an ideal choice for efficient and reliable DC power supply in various industries.
