Aluminum Electrophoresis Production Line Machine Industrial Electrical Control

Aluminum Electrophoresis Production Line Machine Industrial Electrical Control
Features Gallery Product Description Request A Quote
Name: Electrophoresis Production Line
Conductivity Decrease: 100~200μs/cm/time
PH Value Decrease: 0.2~0.3/time
Resin Use Life: 100~150 Times
Type: Electrophoresis Varnish Rectification Device
Usage: Industrial
High Light:

Aluminum Electrophoresis Production Line


Electrophoresis Production Line Electrical Control


Electrophoresis Machine Industrial

Basic Infomation
Place of Origin: CHINA
Brand Name: MEI-ALU
Model Number: ROPWE-1~30T
Payment & Shipping Terms
Packaging Details: Export Stander Packing
Delivery Time: 20-30days
Payment Terms: T/T
Supply Ability: 20pcs/month
Product Description

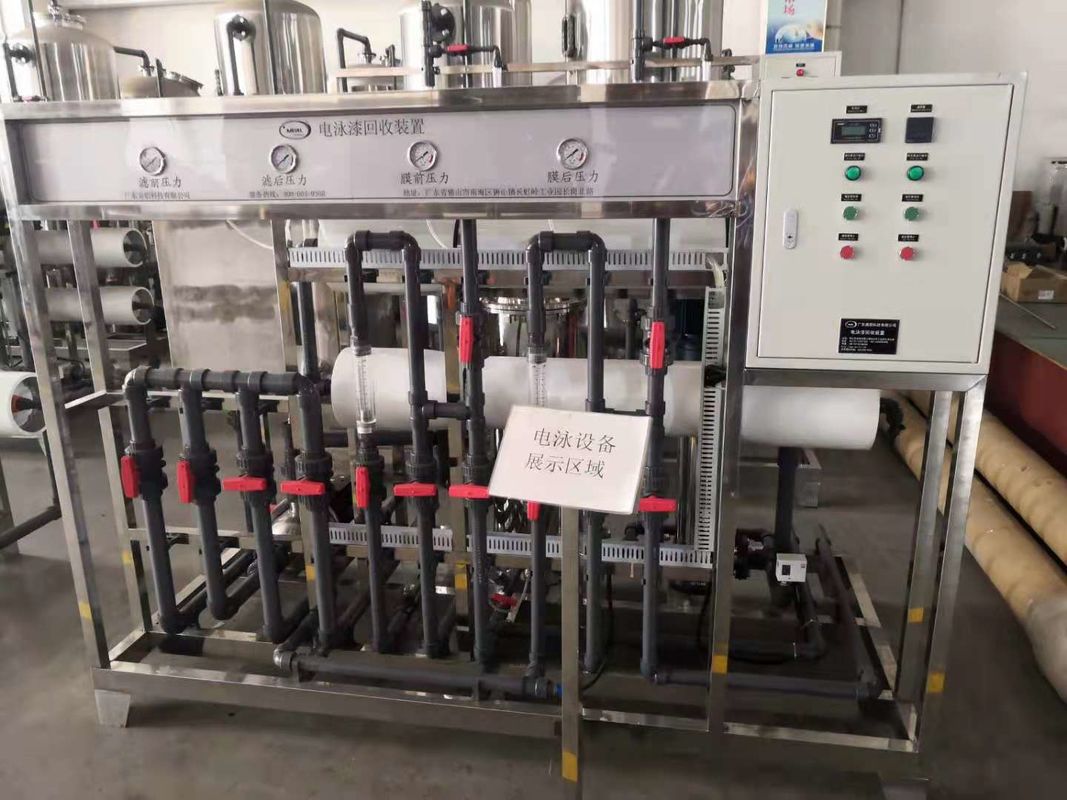

Electrophoresis Varnish Rectification Device



Absorbing the advanced international technology of electrophoresis varnish rectification devices, our company has developed new equipment of our own. Our machine adopts the specific resin imported from Japan, and is applicable to soluble series anode electrophoresis varnish film. Our devices have completely fulfilled the requirements of relevant imported equipment, and are the essential equipment for aluminum material anodic oxidation electrophoresis.



Working principle:

As the electrophoresis continues in production, the impurity ions of the electrophoresis tank will increase due to the introduction of the pretreatment process or the impurity ions of the profile itself, which will change the conductivity and PH value of the electrophoresis, thus affecting the quality of the electrophoresis.In order to effectively remove the harmful impurity ions in the electrophoresis tank, such as sulfate ions and other impurity ions, the electrophoresis varnish rectification equipment should be used. The principle is to remove impurity ions with ion-exchange resin, so as to control the PH value and conductivity of the tank. So that the basis is within the allowed process parameters. When the resin is saturated with the impurity ions in the tank, the resin loses its effect and must be regenerated. The regeneration process is the opposite of the refining process, using hydrogen ions or hydroxide ions to regenerate and exchange the impurity ions attached to the ion exchange resin.


Basic configuration:

  1. Mitsubishi Japanese kation resin(WK-40) :150L
  2. Mitsubishi Japanese anion resin(SA-10AP) :450L
  3. Stainless steel delivery pump:1 unit
  4. Kation tower Ø 600 X 1600mm H: 1 unit
  5. Anion tower Ø 800 X 1800mm H :1 unit
  6. Electrical control device: 1 unit
  7. Pneumatic control device: 1 set
  8. Stainless steel supporting rack :1 unit
  9. Pipe line and valve, jet gun, flow gauge, pressure gauge:1 set
